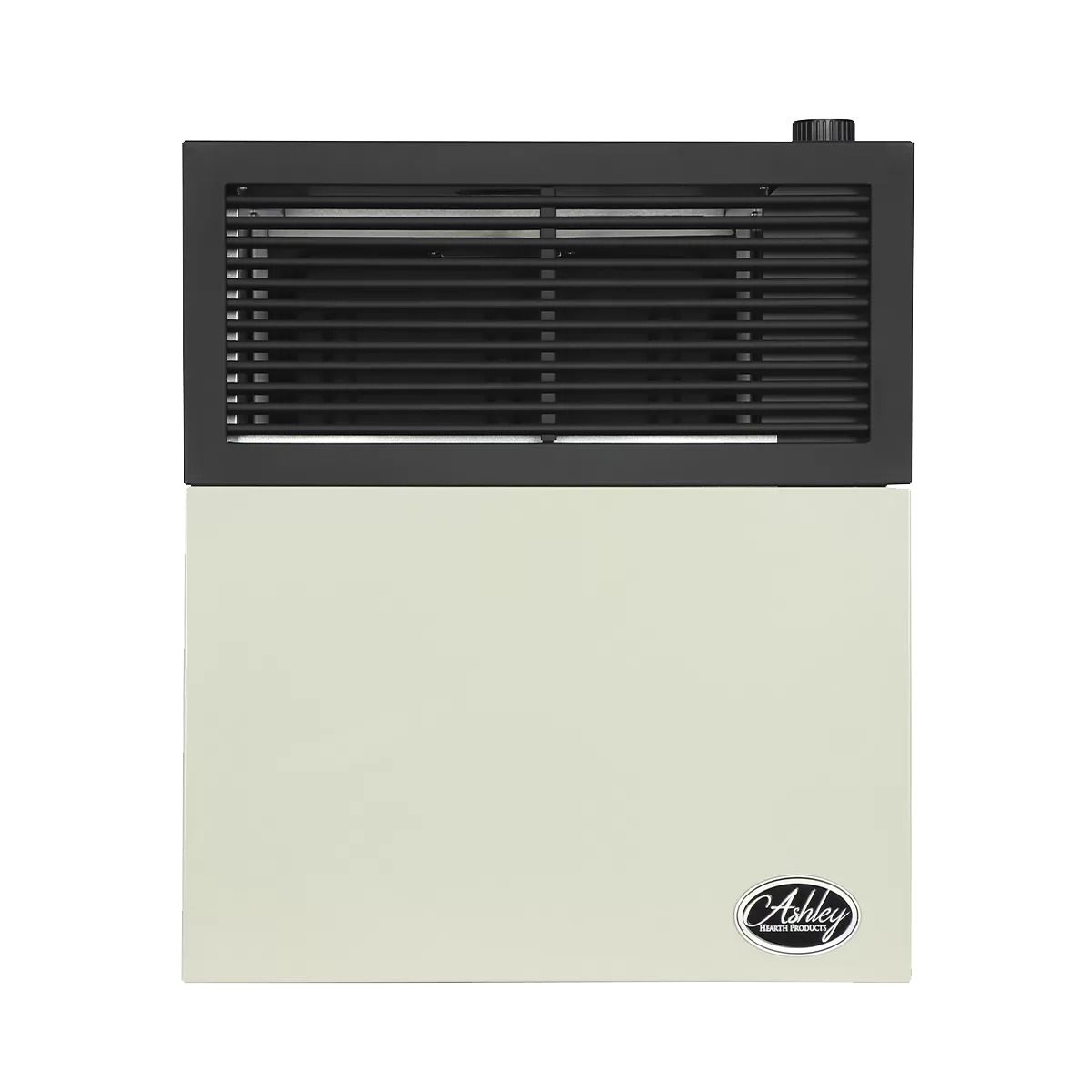

DVAG11N Direct Vent Natural Gas Heater - 11,000 BTU

The DVAG11N is a direct vent Ashley Hearth Products wall heater rated at 11,000 BTUs. This Ashley Hearth Products heater includes the hardware needed to mount the unit to an exterior wall, making it an efficient space-saving solution. The DVAG11N is a vented heater that pulls air from outside and uses no interior air.

Note: The DVAG11N is a natural gas (NG) wall heater that uses natural gas only. Installing and/or converting the DVAG11N should only ever be performed by a licensed installer.

Features of the DVAG11N Natural Gas Wall Heater

• Comes standard with venting and mounting hardware
• Features an automatic thermostat that allows for temperature adjustment.
• Uses a piezo ignition that requires no external electricity source.
• Stainless steel ported burner runs quiet and is built to last.
• Vented design uses no interior room air for combustion.

Specifications

Fuel Type: Natural Gas (NG)

Input Rating: 11,000 BTUs

Standard Heating Area: 375 sq. ft.

Ignition Type: Piezo Spark Ignition

Max. Gas Inlet Pressure: 10.5 in. W.C.

Min. Gas Inlet Pressure: 7 in. W.C

Pressure Regulator Settings: 5 in. W.C

Measurements

• Length: 6.61 in.
• Width: 17.36 in.
• Height: 20 in.
• Weight: 28 lbs.

Note: For further information, such as clearance requirements, please refer to the owner's manual for the DVAG11N wall heater.
