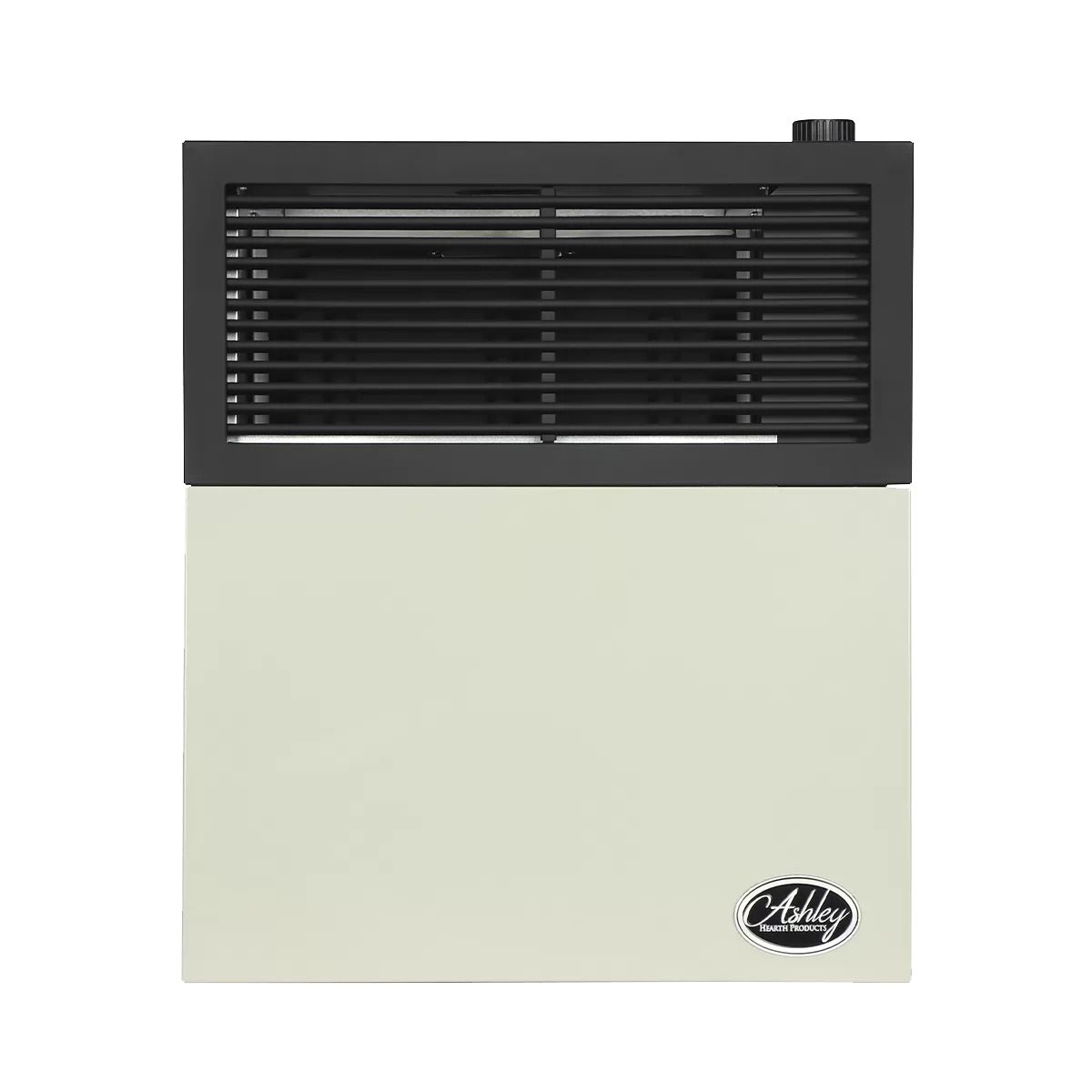

DVAG11L Direct Vent Liquid Propane Gas Heater - 11,000 BTU

The DVAG11L is a direct vent liquid propane gas Ashley Hearth Products wall heater rated at 11,000 BTUs. This Ashley Hearth Products heater is able to be mounted to an exterior wall to save space. This is a direct vent heater, meaning the DVAG11L draws in air from outside.

Note: The DVAG11L runs on liquid propane gas (LPG) only. Installing and/or converting the DVAG11L should only ever be performed by a licensed installer.

Features of the DVAG11L Liquid Propane Gas Wall Heater

• Comes standard with venting and mounting hardware
• Features an automatic thermostat that allows for temperature adjustment.
• Uses a quick-start piezo-electric ignition that requires no external electricity source.
• Stainless steel ported burner runs quiet and is built to last.
• Vented design uses no interior room air for combustion.

Specifications

Fuel Type: Liquid Propane Gas (LPG)

Input Rating: 11,000 BTUs

Standard Heating Area: 375 sq. ft.

Ignition Type: Piezo Spark Ignition

Max. Gas Inlet Pressure: 14 in. W.C.

Min. Gas Inlet Pressure: 11 in. W.C

Pressure Regulator Settings: 10 in. W.C

Measurements

• Length: 6.61 in.
• Width: 17.36 in.
• Height: 20 in.
• Weight: 28 lbs.

Note: For further information, such as clearance requirements, please refer to the owner's manual for the DVAG11N wall heater.
