TD2310-C03-0000 CIRCUIT BREAKER 27 AMPS 50% DUTY CYCLE
In stock
Part Number
TD2310-C03-0000
$30.08

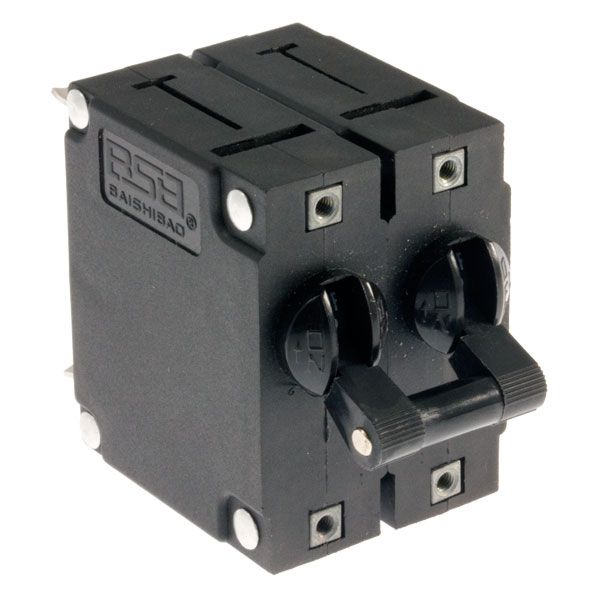

The TD2310-C03-0000 Circuit breaker is a 27 Amp dual pole circuit breaker rated at a 50% duty cycle that is held into place with four small M4 metric screws.
This TD2310-C03-0000 is not able to be used in place of the Snap In Style circuit breaker that was used in the early production generators.
This TD2310-C03-0000 Circuit Breaker was used on several brands of portable generators including the General Power Products GPP6000, Puolan Pro PPG6000, American Yard Products, Sears Craftsman, Goss Power, ETS Eastern Tool and Supply, Champion and other privately label generators.
The TD2310-C03-0000 Circuit breaker has 2 line terminals and 2 load terminals.

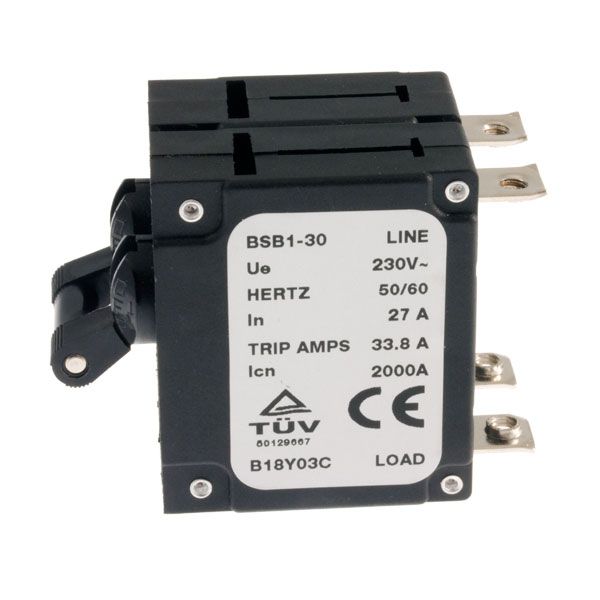

This circuit breaker has the following ratings:
BSB1-30 Line
Ue 230Volts AC
Hertz 50/60
Input 27A
Trip Amps 33.8A
TUV 1001230501B Baisibao
This TD2310-C03-0000 is not able to be used in place of the Snap In Style circuit breaker that was used in the early production generators.
This TD2310-C03-0000 Circuit Breaker was used on several brands of portable generators including the General Power Products GPP6000, Puolan Pro PPG6000, American Yard Products, Sears Craftsman, Goss Power, ETS Eastern Tool and Supply, Champion and other privately label generators.
The TD2310-C03-0000 Circuit breaker has 2 line terminals and 2 load terminals.
This circuit breaker has the following ratings:
BSB1-30 Line
Ue 230Volts AC
Hertz 50/60
Input 27A
Trip Amps 33.8A
Icn 2000A
Approximate Measurements:
Width 1.465 Inches
Height 2.00 Inches
Depth 1.70 Inches
Screw Holed .735 On Center Side to Side
Screw Holes 1.650 On Center Top to Bottom
TUV 1001230501B Baisibao
