CDVR36NV7 NG Vermont Castings Direct Vent 36-inch Gas Fireplace Series

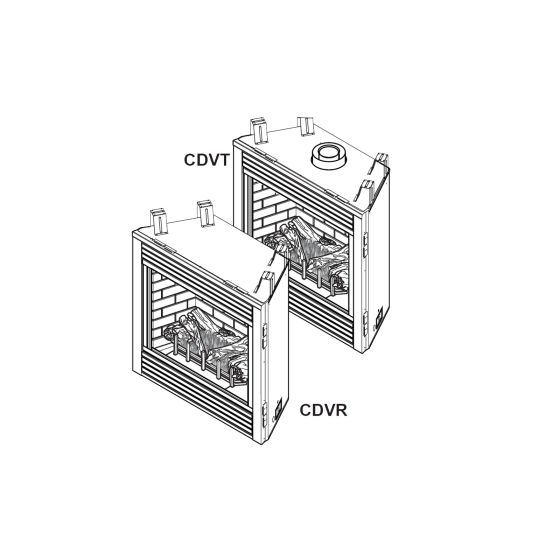

CDVR36NV7 is a series of direct vent natural gas fireplaces from Vermont Castings. This direct vent fireplace has both a rear-vented and top-vented variation. If your fireplace's model number starts with CDVR, it is a rear-vented model. If it starts with CDVT, it is a top-vented model.

This natural gas fireplace uses a #44 NG orifice and is rated for an input of up to 20,000 BTUs per hour.

The CDVR36NV7 millivolt fireplace is remote-ready and compatible with millivolt remotes, though it also has two manual adjustment knobs for the pilot burner and the NG gas valve.

The following is a partial list of natural gas fireplaces models that are part of this series:

• CDVR36NV7
• CDVR36NV117
• CDVR36NE7

Top-Vented Models

• CDVT36NV7
• CDVT36NE7
• CDVT36NSC7

Specifications of the CDVR36NV7 Vermont Castings Fireplace Series

It is important to note that the CDVR36NV7 has several different variants that may differ from the below specifications. It is highly recommended to check the user manual for this fireplace series to see the exact specifications for your Vermont Castings model.

• Fuel Type: Natural Gas
• Pilot Type: Standing Millivolt Control
• Minimum Inlet Pressure: 5.5 in. W.C
• Maximum Inlet Pressure: 14.0 in. W.C
• Manifold Pressure: 3.5 in. W.C
• Max BTU/hr. Input: 20,000
• Orifice Size: #44
