CC3224 Cub Cadet Cold Water Pressure Washer - 3200 PSI
Reference Item Only
Part Number
CC3224

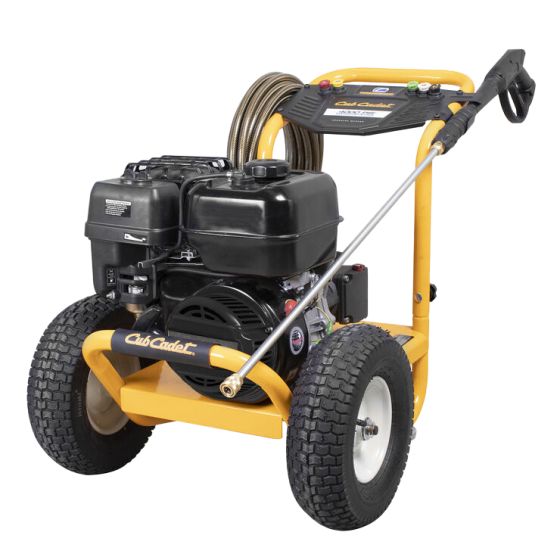

The CC3224 is a Cub Cadet pressure washer model that is designed for cold water cleaning applications.
This cold water pressure washer utilizes a triplex plunger pump to deliver a max pressure of 3200 PSI with a flow rate of 2.4 GPM.
A 208cc Cub Cadet engine powers the CC3224. The engine features a recoil start and a 0.5 gallon gasoline fuel tank.
Two 10 in. pneumatic wheels allow for the CC3224 to be easily transported between jobsites.
Note: The CC3224 pressure washer has been discontinued by the manufacturer and is no longer available as a complete unit. However, service parts may still be available to service the CC3224.
Features of the CC3224 Pressure Washer
- Powered by a 4-Cycle OHV Cub Cadet engine, rated at 208cc
- Features a heavy-duty Triplex pump with PowerBoost, delivering a consistent water stream.
- Comes standard with a 25 ft. Monster hose with 5/16 in. quick-connect fittings.
- Includes built-in chemical siphon hose, injecting cleaning chemicals and soap into the water stream
- Equipped with an ergonomic spray gun with a safety lock trigger.
- Comes with 5 quick-connect spray tips, including 0°, 15°, and 40° spray nozzles, as well as a 65° soap nozzle
Specifications and Measurements
Max. Pressure Rating: 3200 PSI
Max. Flow Rate: 2.4 GPM
Max. Flow Rate: 2.4 GPM
Engine Rating: 208cc 4-Cycle OHV
Fuel Tank Size: 0.6 gal.
Hose Size: 25 ft. x 5/16 in.
Wheel Size: 10 in. diameter
Unit Dimensions:
- Length: 24.25 in.
- Width: 20.25 in.
- Height: 23.50 in.
- Weight: 65 lbs.
