66DX40G1I 66DX CAT Pump with a 1 inch Hollow Crankshaft
Out Of Stock
Part Number
66DX40G1I
$1,152.00

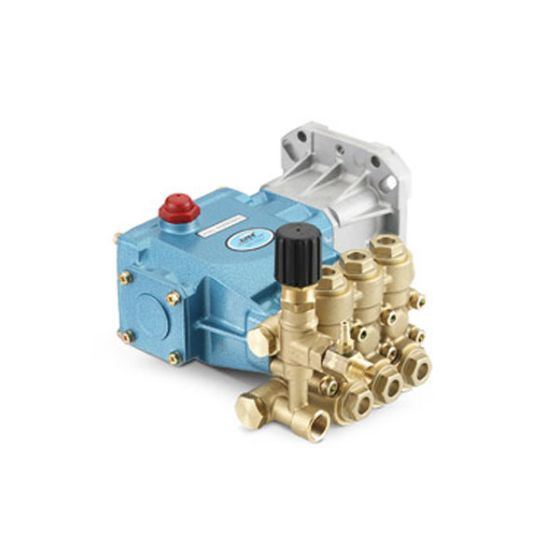

66DX40G1I is a replacement CAT pump complete with modular 7860 unloader and 7367 fixed chemical injector.
This 66DX40G1I triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with a brass manifold, 304 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings.
66DX Series pumps are hollow-shafted and bolt directly to a gas engine with a 1" straight horizontal shaft, providing an easy, compact installation.
FEATURES
- Triplex plunger design ensures high efficiency and low pulsation.
- Compact flange mount permits easy, direct mounting to most gas engines.
- Pump comes standard with NBR seals. Alternative seal materials are available for higher temperature or chemical compatibility.
Technical Specifications:
| US | Metric | |
| Max Flow | 4 GPM | 15.1 L/min |
| Max Pressure | 4000 PSI | 275 bar |
| Maximum Temperature | 140° F | 60° C |
| Inlet Port Size | (2) 1/2” NPT(F) | |
| Outlet Port Size | (2) 3/8” NPT(F) | |
| Plunger Diameter | 0.551 in. | 14 mm |
| Stroke | 0.449 in. | 11.4 mm |
| Crankcase Oil Capacity | 18.0 fl. oz. | 0.53 L |
| Weight | 26.15 lbs. | 11.9 kg |
