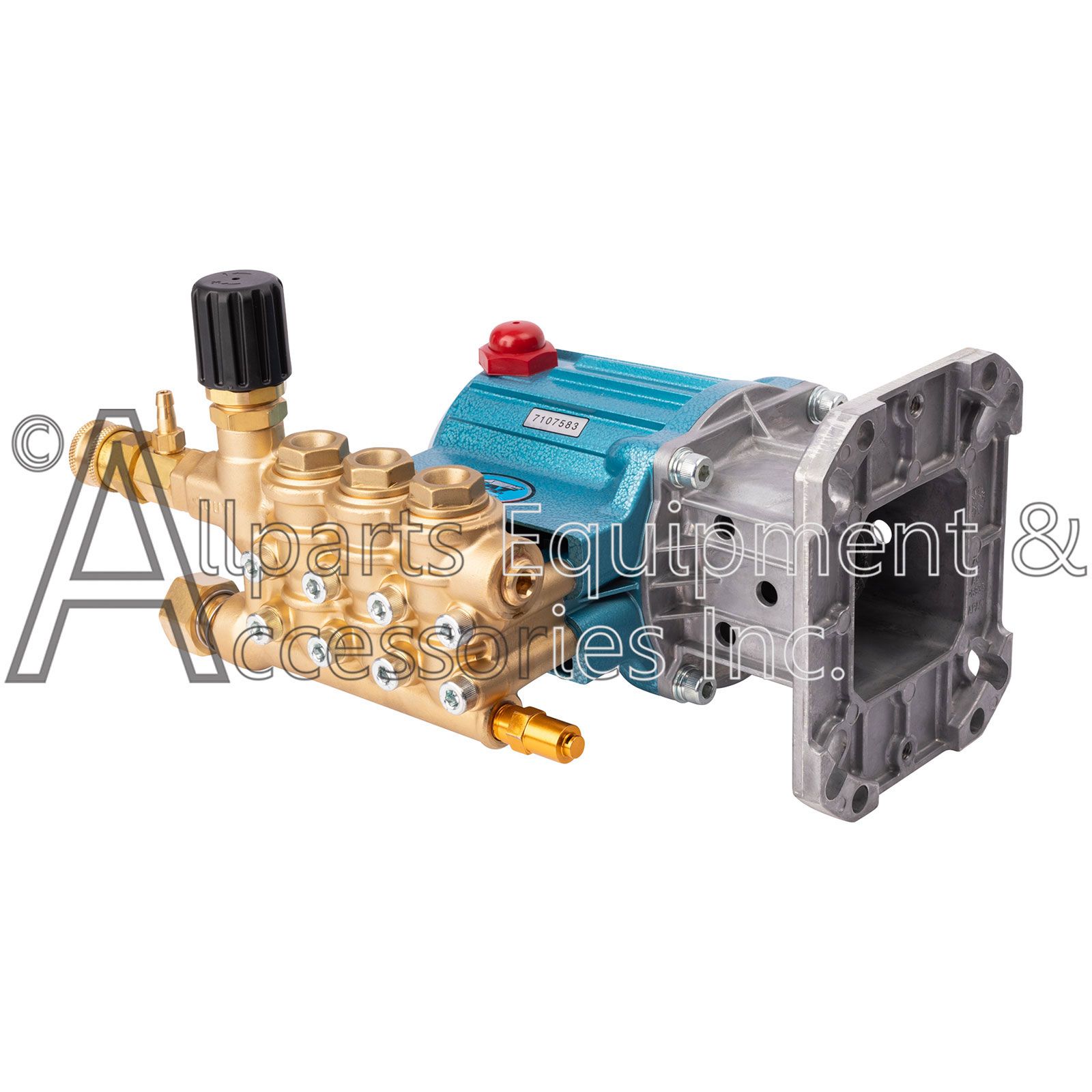

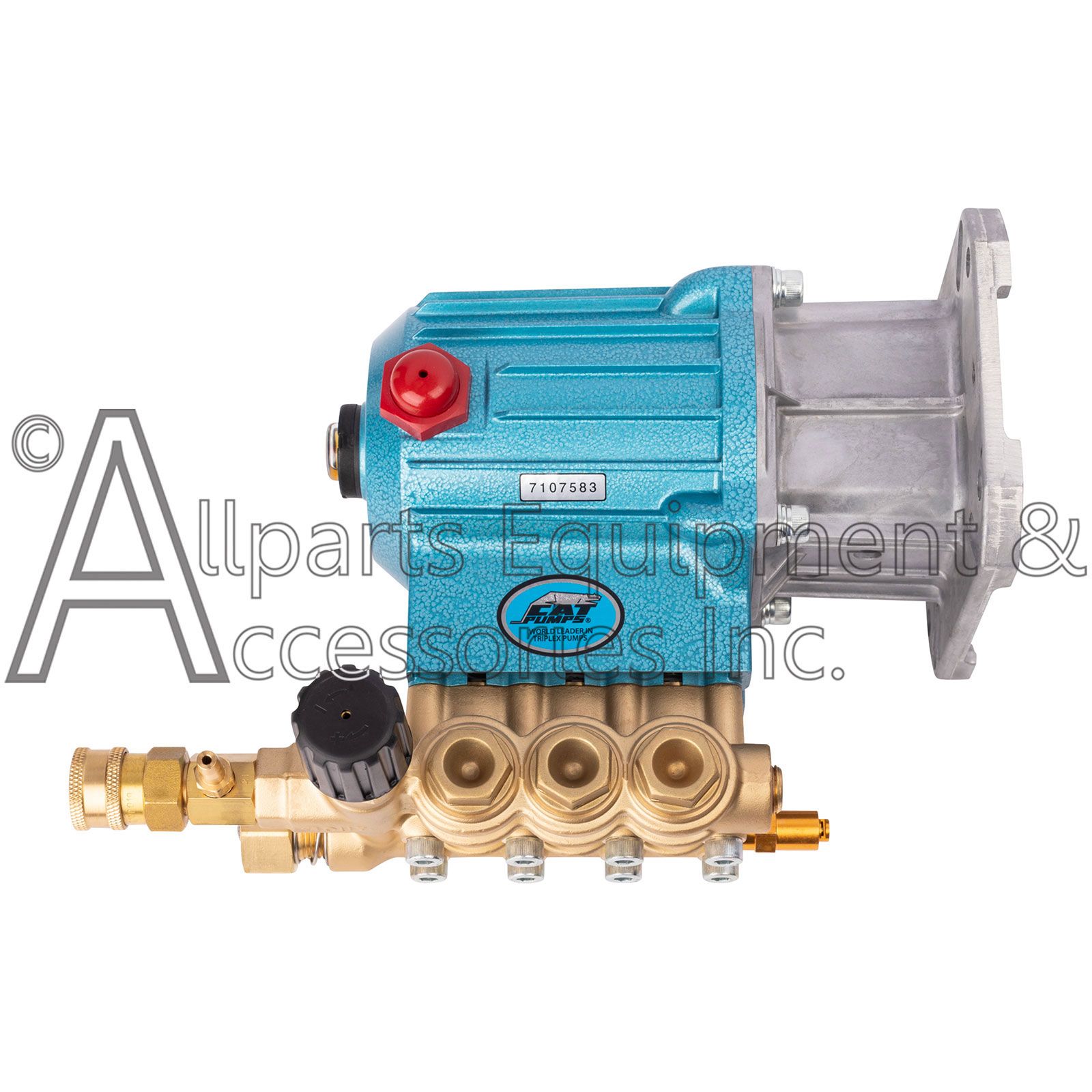

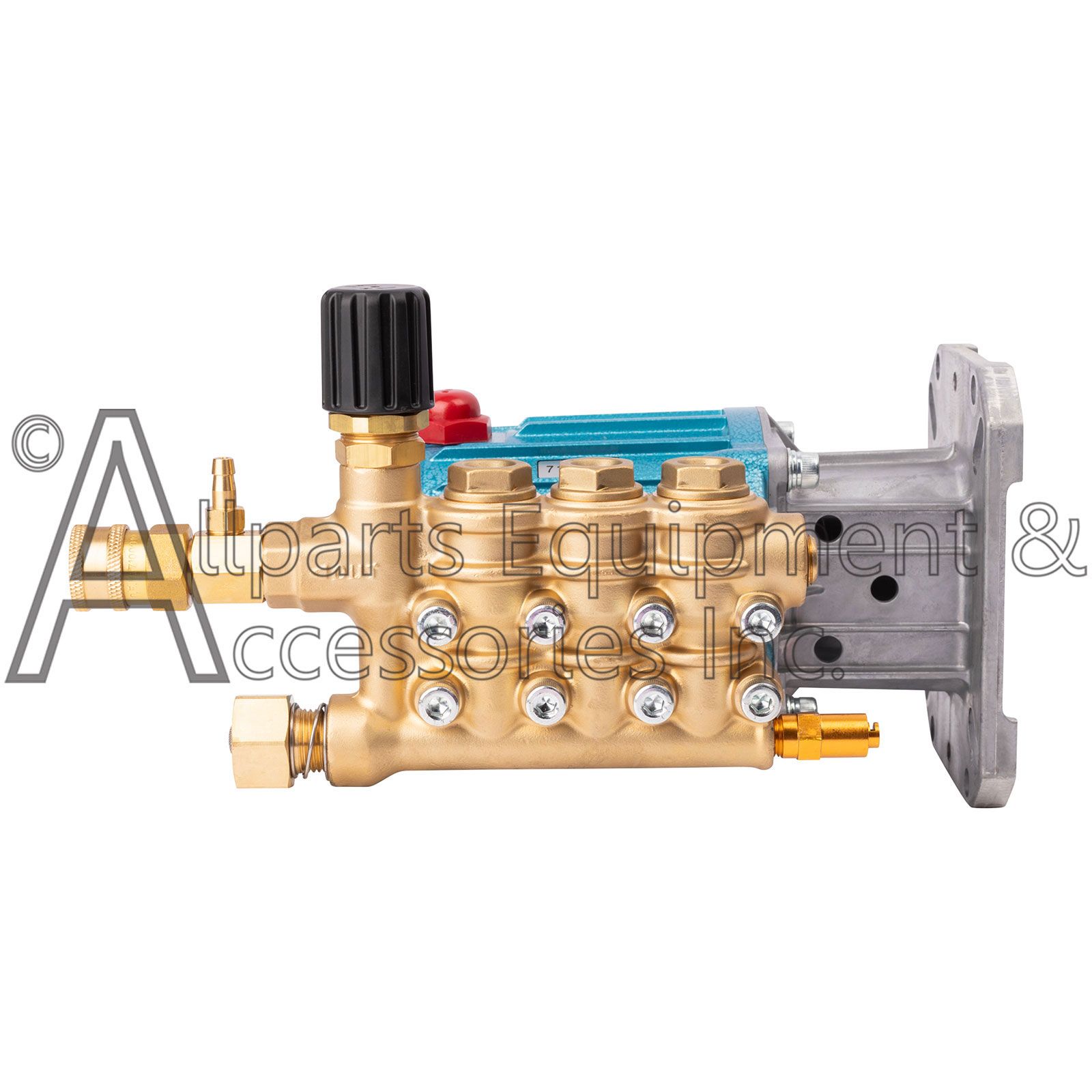

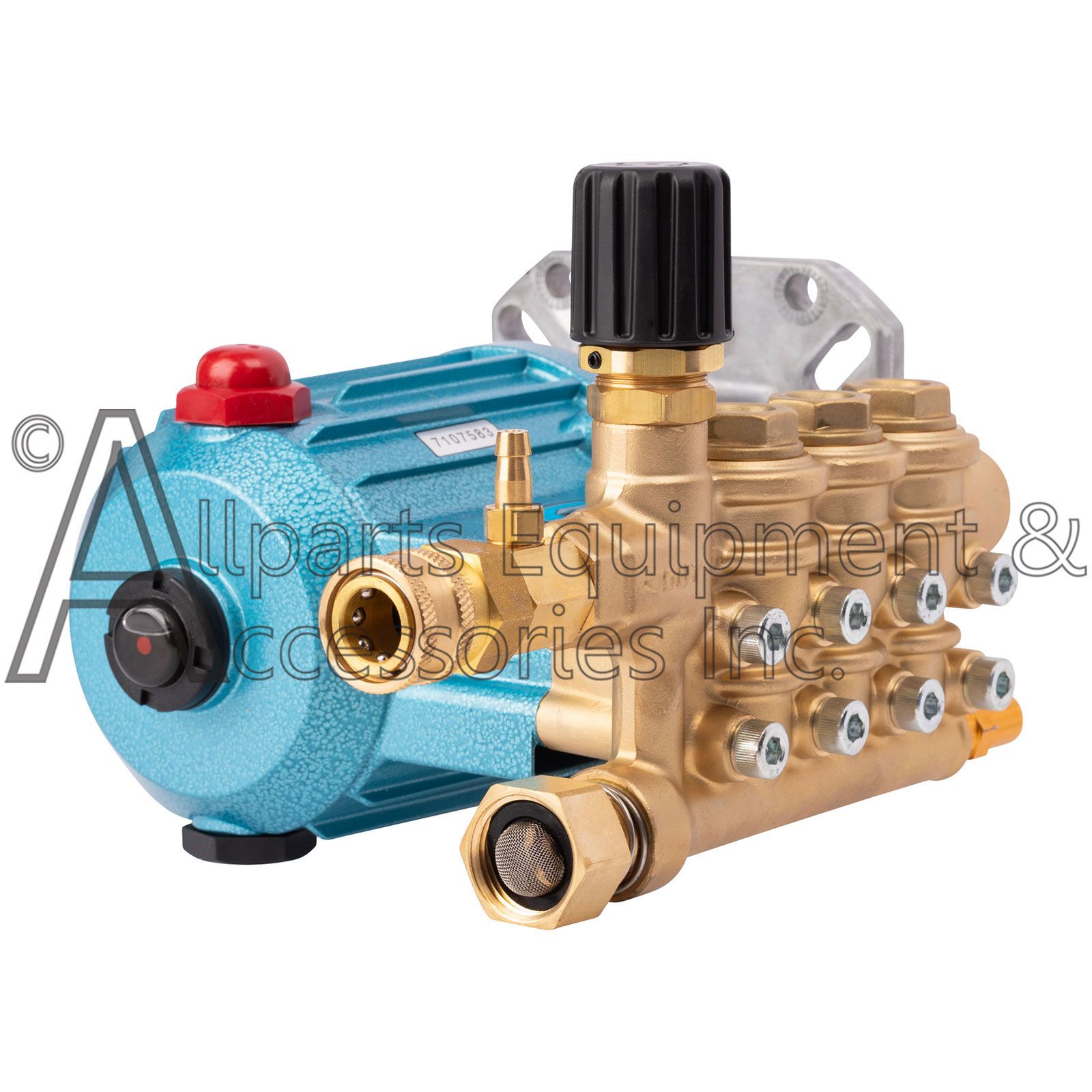

7107583 CAT Direct Drive 4000 PSI Triplex Plunger Pump, 3450 RPM

The 7107583 is a CAT pressure washer pump rated up to 4000 PSI at 4.0 GPM.

The 7107583 is the Simpson number for this OEM direct drive pump, though it may also fit similar brands such as Craftsman, DeWalt, and others.

Features of the 7107583 CAT Pump

• Triplex pump design keeps the unit’s water flow smooth.
• Solid ceramic direct-drive plungers are durable, polished, and specially built to provide an exact fit with the 7107582.

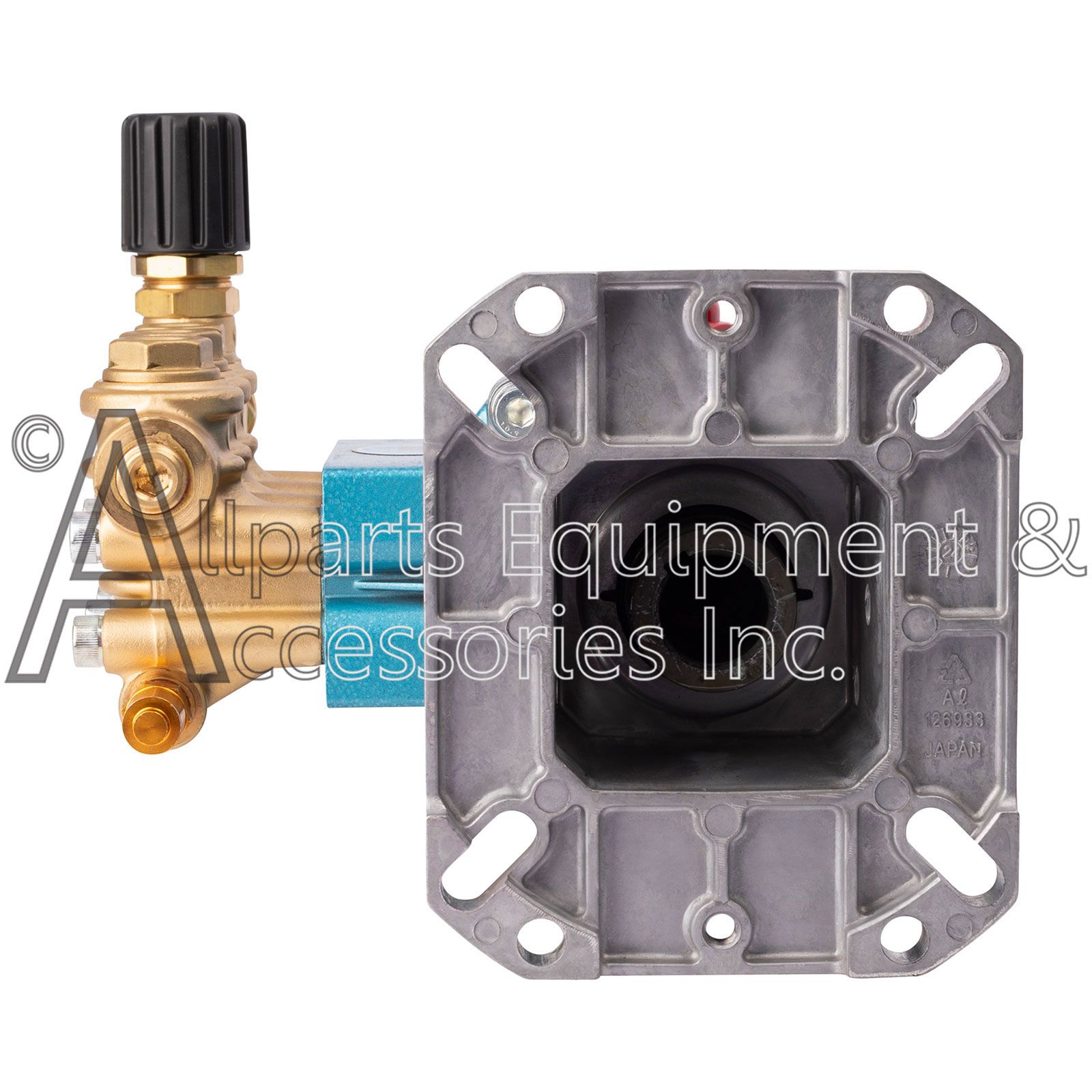

• Features a built-in flange that allows for easy mounting to gas engines.
• The integrated unloader maintains the pump’s pressure while improving safety.
• A chemical injector is mounted to the unloader for easy chemical cleaning.

7107583 CAT Pump Specifications:

Max. Pressure Rating: 4000 PSI @ 3.9 GPM

Supported Engine Speed: 3450 RPM

Max. Water Temperature: 130°F (60°C)

Inlet Port Size: 1/2 in. NPTF

Discharge Port Size: 3/8 in. NPTF

Inlet Auxiliary Port: 1/4 in. NPTF

Dimensions:

• Length: 11.50 in.
• Width: 8.82 in.
• Height: 7.99 in.
• Weight: 17 lbs.
