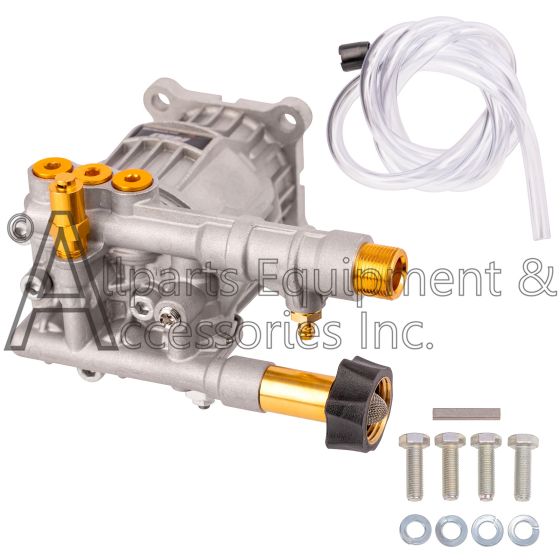

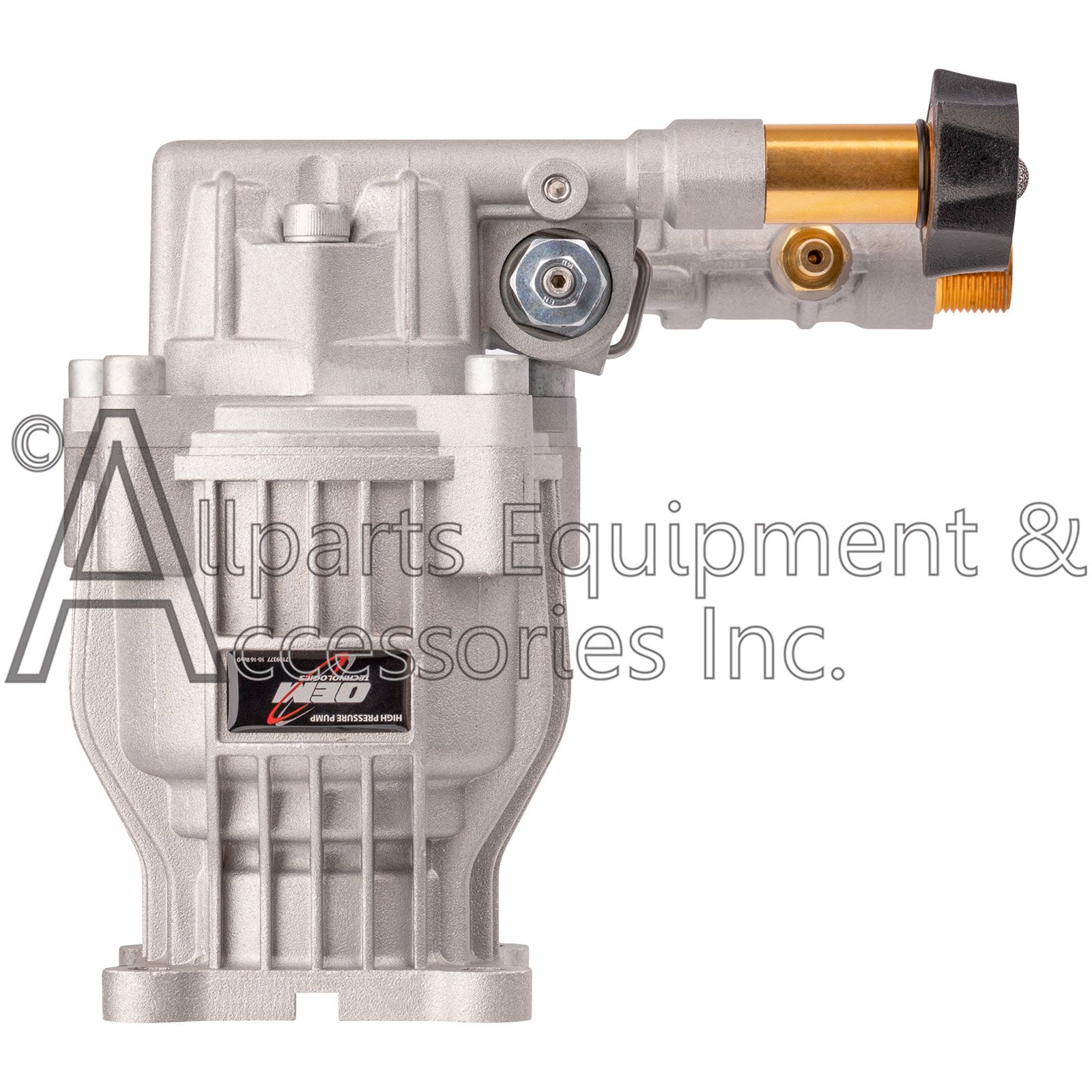

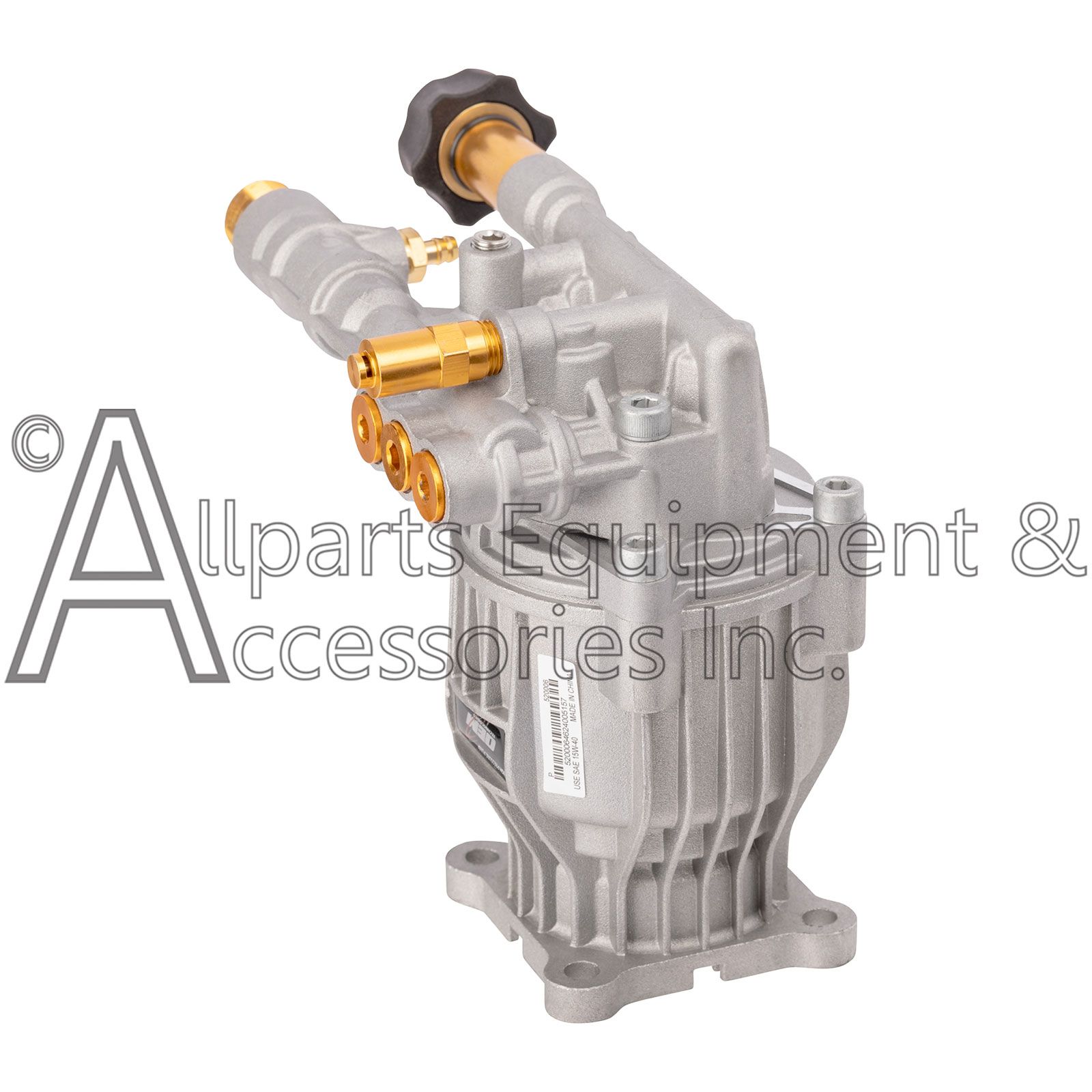

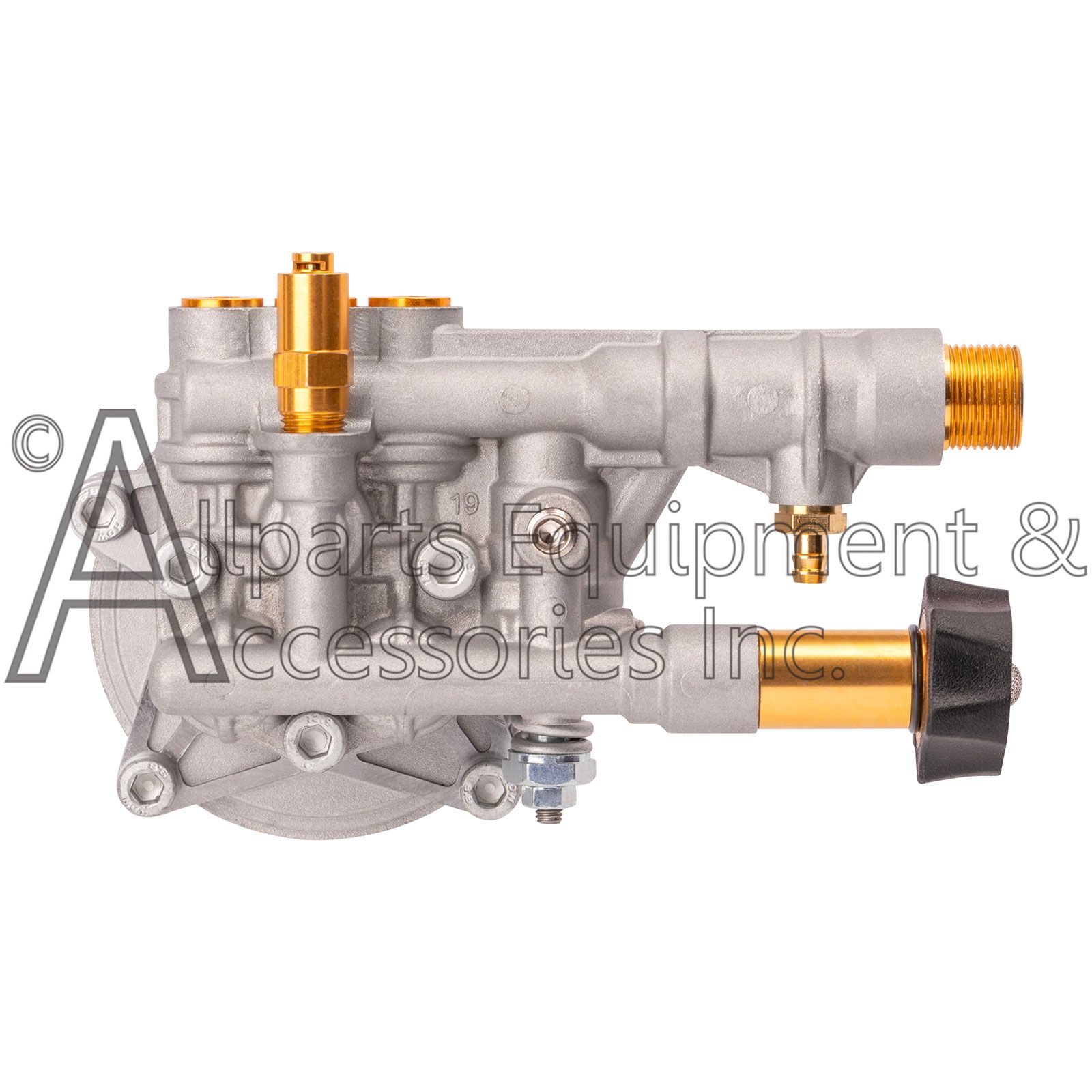

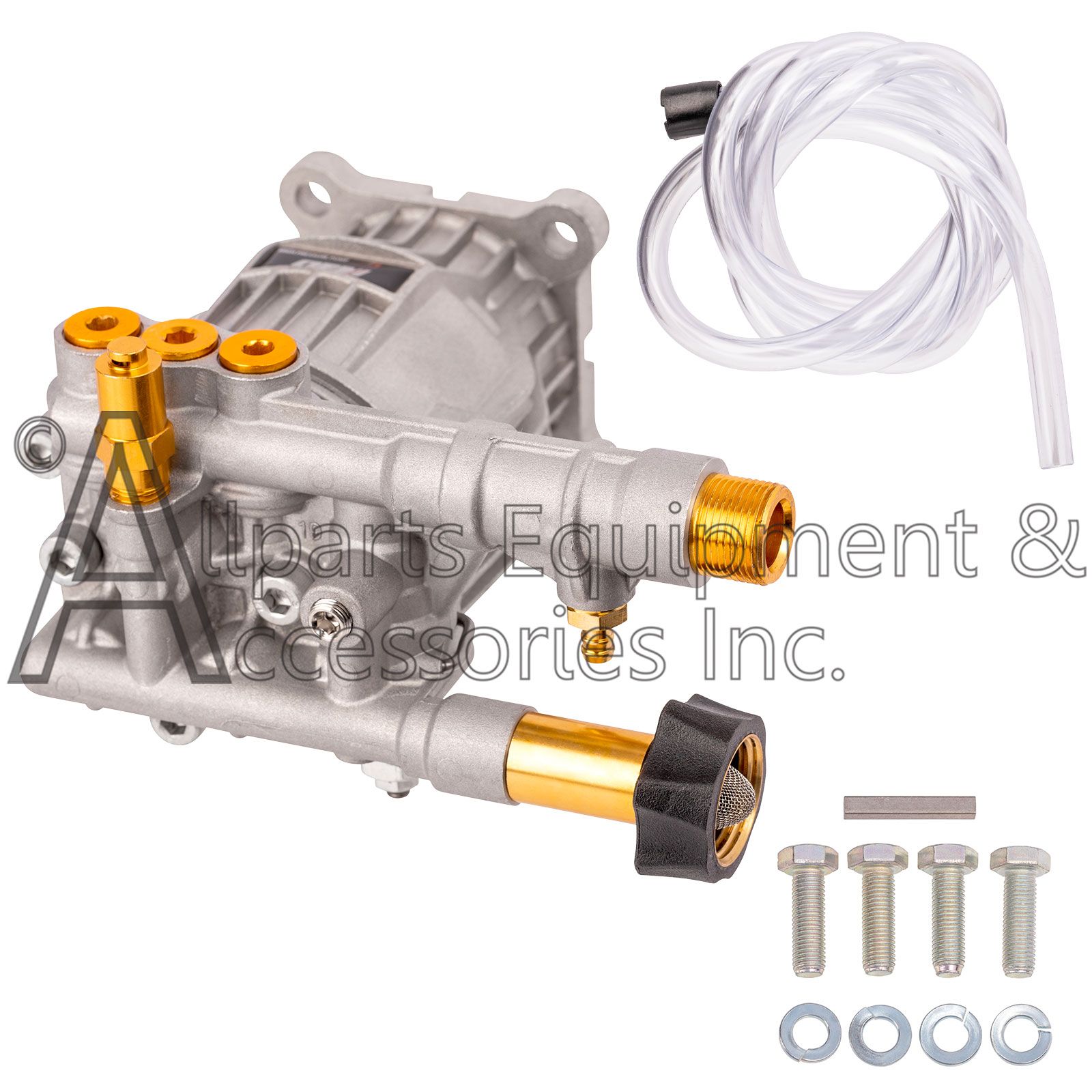

90028 Pump Kit Anodized OEM Technologies Axial Cam Pump Horizon Mounting

This 90028 OEM Technologies Anodized Phoenix Axial Cam replacement pump kit is designed for peak performance, rated up to 3300 PSI @ 2.4 GPM High-quality oil-lubricated pump that produces up to 2.5 gallons per minute maximum flow rate, making this replacement pump suitable for most homeowner pressure washer units in all applications.

Manufactured by FNA Group this replacement pump kit is a highly efficient pump that minimizes engine load while delivering top performance across a wide range of pressure washer applications.

All OEM Technologies Phoenix replacement pumps have stainless steel pistons for improved seal life and are equipped with high-performance double high-pressure seals as well as oversized rear ball bearings to reduce friction and allow for long-lasting performance in the most demanding cleaning environments. Also, it features a stainless steel integrated new unloader featuring an industry-leading built-in easy-start system.

The 90028 Pump Kit has the industry standard 4 bolt mounting pattern to a 3/4 inch shaft motor and is driven with a 3/16 Square Key.

OEM Technology pumps are used on many portable cold water power washers manufactured by FNA Group under private labels, including Simpson, DeWalt, Delco, Excel, WW Grainger, Troy-Bilt, Cub Cadet, Black and Decker Stanley, and brands or pressure washers.

These 90028 Pumps kits with the Phoenix Series pumps are designed to be mounted horizontally with an SAE J609A industry standard flange bolt pattern.

Features:

• 3300 PSI @ 2.4 GPM 8.6CAH12A Pump

• PowerBoost Technology

• Unloader assembly with the built-in easy-start system.

• Thermal relief protection to prevent pump overheating

• Rear oversized radial ball bearings are installed for better wear and friction resistance, and precision ceramic-coated pistons for extended seal life.

• Crankcase is manufactured from fully anodized die-cast aluminum for corrosion protection and are sealed to prevent contamination and lubrication failures.

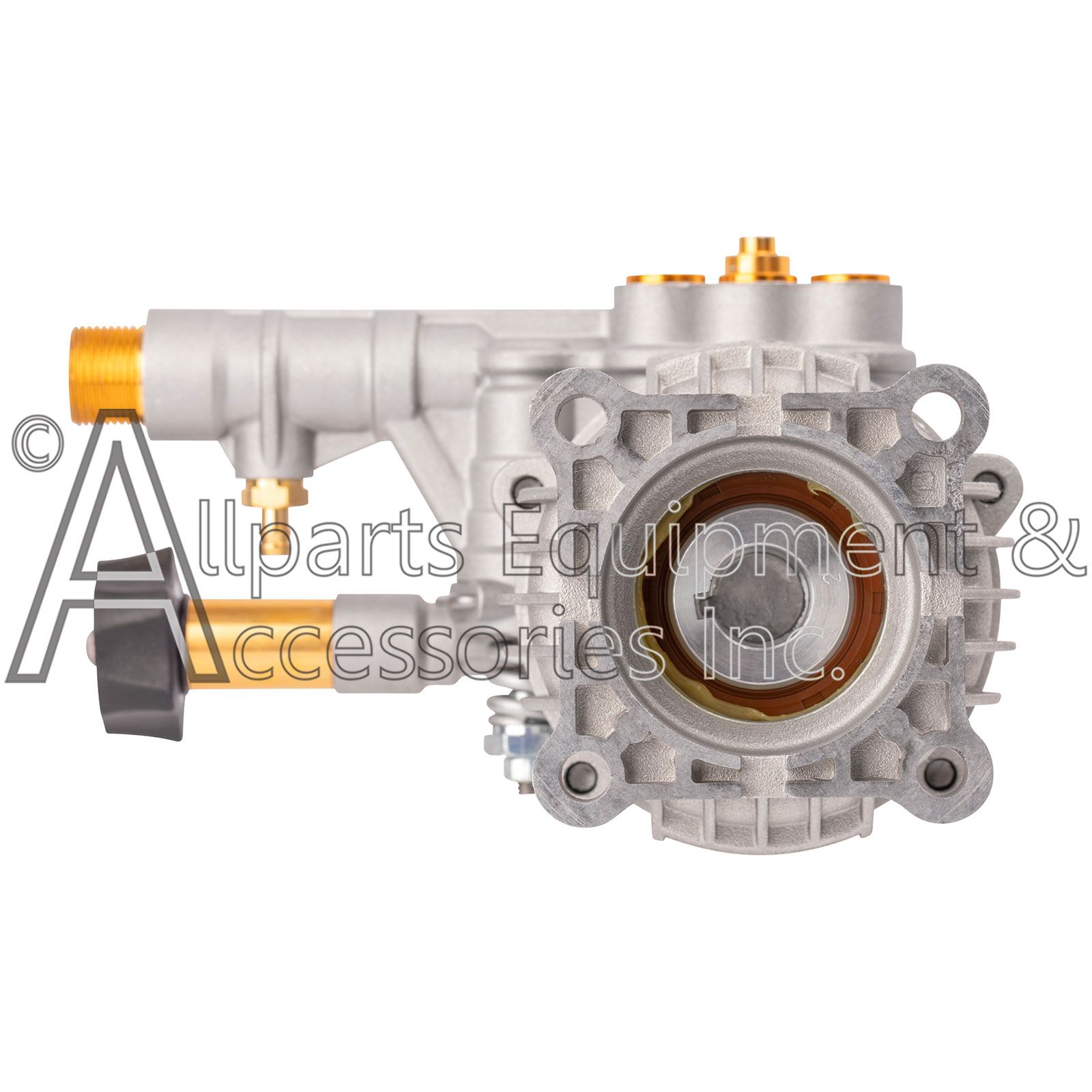

• Gas engine flange and 3/4 hollow shaft that fits most horizontal shaft engines.

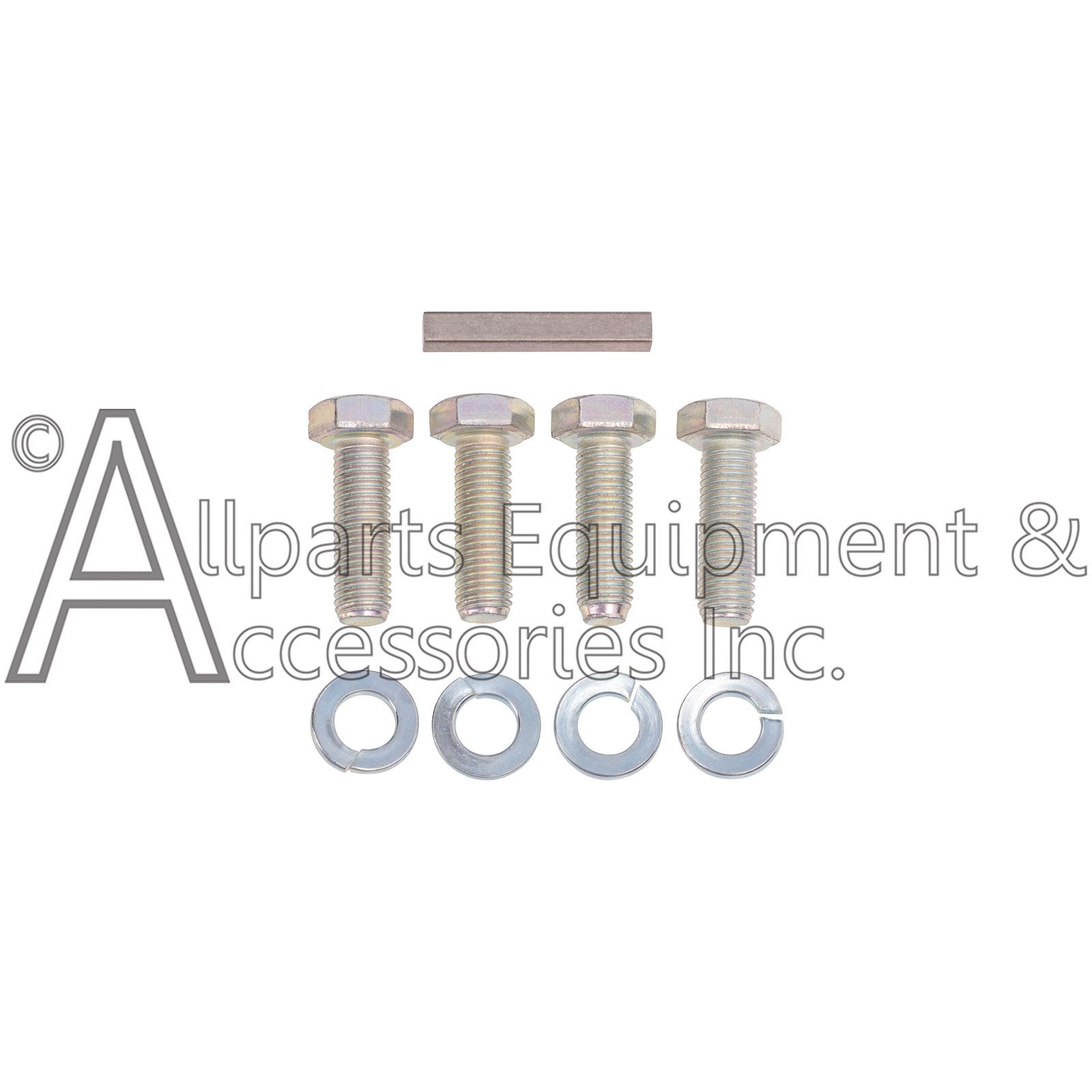

• Mounting Hardware kit with 3/16 Drive Key.

• Chemical Pickup line with Line filter for soap application

• FNA Group OEM Technologies Instruction booklet.

Specifications:

•
  PSI: 3300 Max

• GPM: 2.4

• Inlet Port: 3/4" GH

• Discharge Port: 22MM Threaded male fitting

• Inlet Pressure Range: 10-60 PSI

• Thermal Relief Port: 1/4" NPT

• Shaft Diameter: 3/4"

• Flange Bolt Pattern: SAE J-609A

• Key Way: 3/16" x 1 Inch

• Pump Oil Capacity: 6.0 fl oz.

• PowerBoost®: Yes

• Head: Anodized Aluminum

• Mounting Hardware kit with 3/16 Drive Key

• Chemical Pickup line with a pre-installed Line filter.




This 90028 Pump Kit from OEM Technologies pump comes with a 2-year limited warranty.
