IHD7160V1 IRON HORSE 5-HP 60-GAL AIR COMPRESSOR

Out Of Stock

Part Number

IHD7160V1

$952.50

Part Number: IHD7160V1

Shipping Weight: 290 Lbs

Documents:

This item is NOT currently in stock and will be shipped as soon as possible. Typical lead times are 5-10 business days for common stock items that are pictured and 15-25 business days for non stock and special orders. Please email customer service for specific details if required at
customerservice@allpartsinc.com

Qty

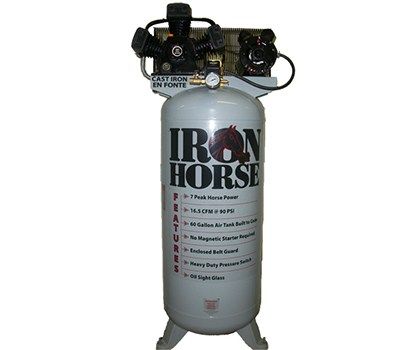

IHD7260V1 is a single stage air compressor by Iron Horse. The IHD7260V1 features a 5 HP electric motor with 16.5 CFM at 90 PSI that runs a wide variety of tools and can reach 7 HP peak at startup. This rugged 3 cylinder cast iron compressor allows the unit to be extremely quiet and durable. The IHD7160V1 has individual and removable cylinders that provides smoother and cooler operation, which leads to a longer life for your unit.

Additional features:

Thermally protected 208/230 volt motor
Easy view oil sight gauge
Sturdy belt guard

Details

Wood Industries manufactures both electric and gas powered oil lubricated single stage air compressor, 2 stage air compressors, portable air compressor, direct drive compressors and stationary air compressors as well as many oil free hand carry air compressors.

These air compressors were sold under several different brand names including Iron Horse Air Compressors, Eagle Air Compressors, and MAXair Industrial Air Compressor that were sold throughout both the United States and Canada.

Tank Information:

Tank Size: 60 Gallons
Tank Outlet: 1/2 Inch
Electronic Drain Valve: No
Tank Orientation: Vertical
Pump Information:

Pump Material: Solid Cast Iron
Pump Type: Single-Stage
Max PSI: 150 PSI
Oil Sight Glass: Yes
After Cooler: No
Pump Drive: Belt Drive
Oil Type: Oil Lubricated
Oil System: Splash Lubricated
Pump Low Oil Shut-off: No
