919.167320 CRAFTSMAN Permanently Lubricated single stage compressor
Reference Item Only
Part Number
919.167320

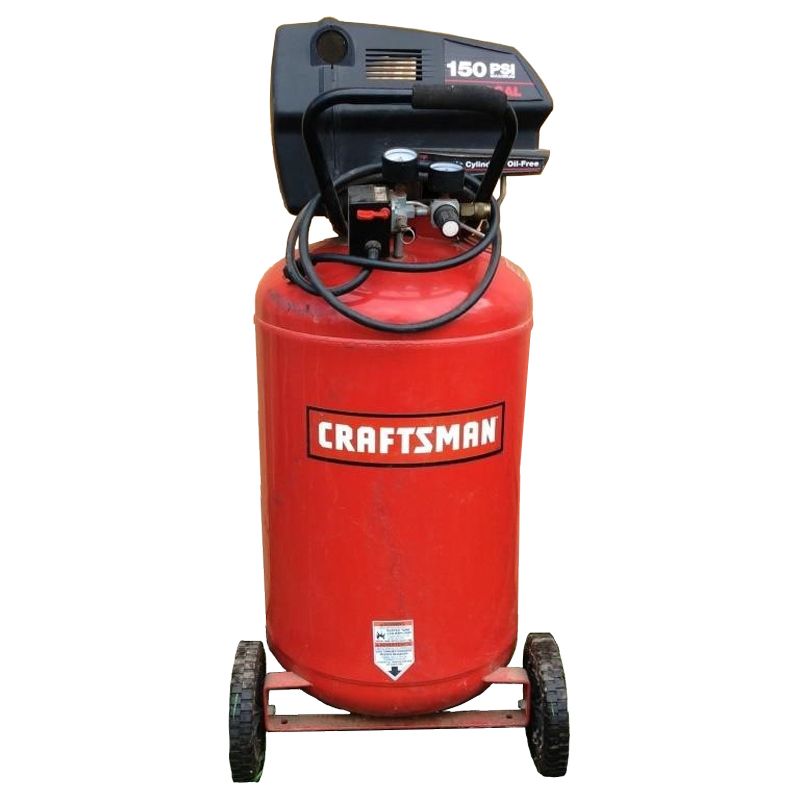

919.167320 is a CRAFTSMAN branded, permanently lubricated, single stage air compressor manufactured by Devilbiss Air Power Company, DAPC.
| Specifications | |
|---|---|
| Running HP | 2.0 |
| Bore | 2.38" |
| Stroke | 1.35" |
| Voltage-Single Phase | 120V/60Hz |
| Minimum Branch Circuit Requirement | 15 amps |
| Fuse Type | Time Delay |
| Air Tank Capacity | 33 |
| Approx. Cut-in | 120 |
| Approx. Cut-out | 150 |
| SCFM @ 40 psig | 8.6 |
| SCFM @ 90 psig | 6.4 |
