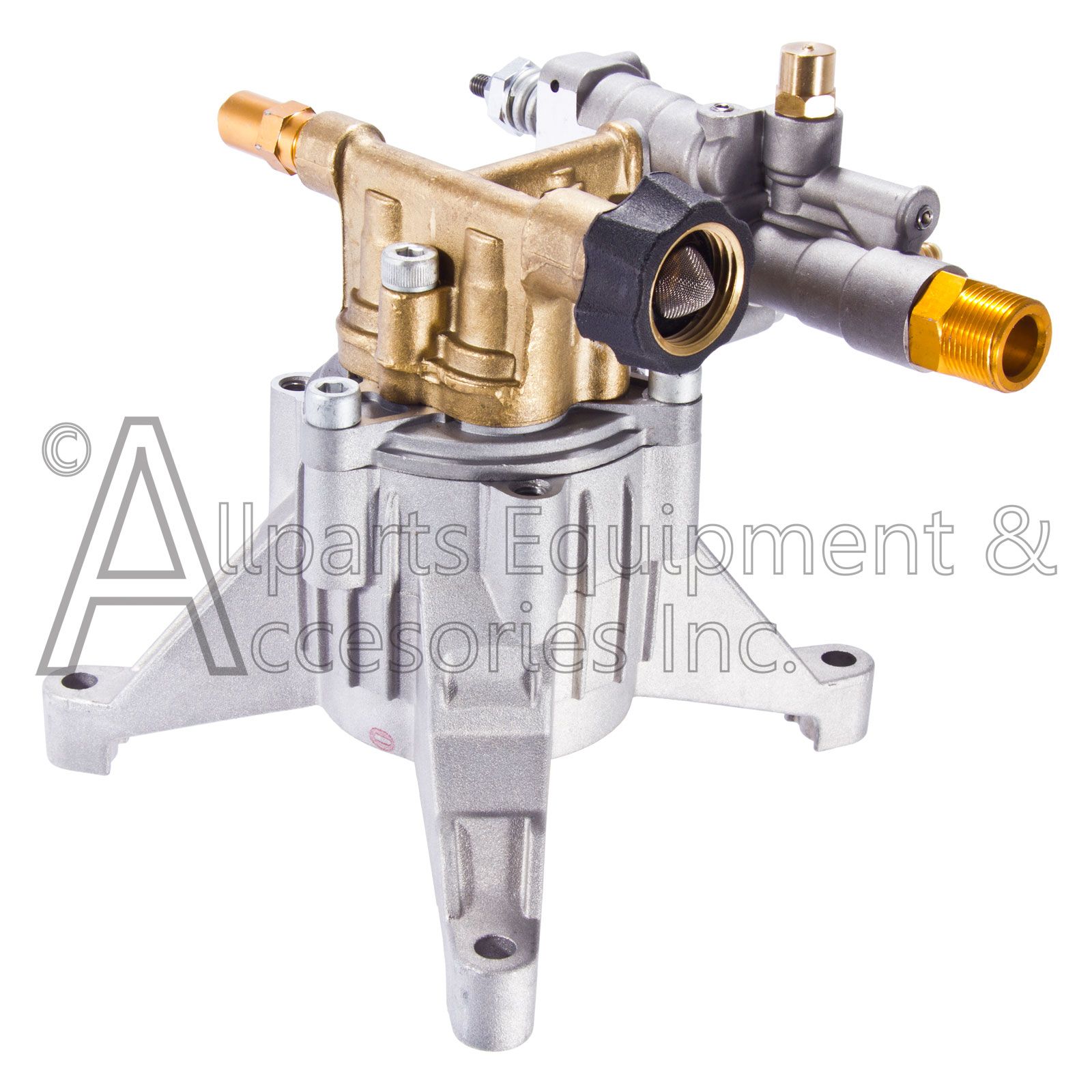

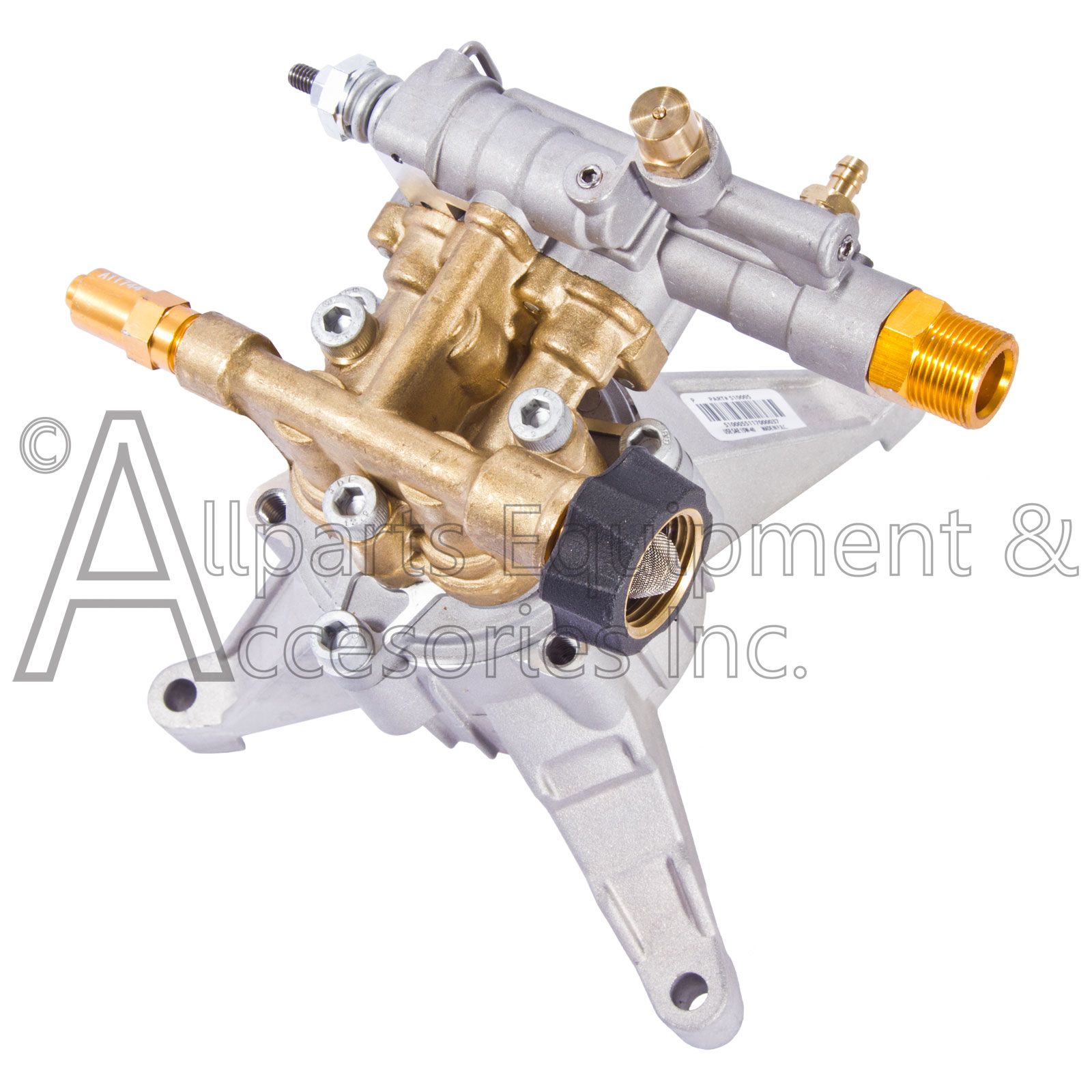

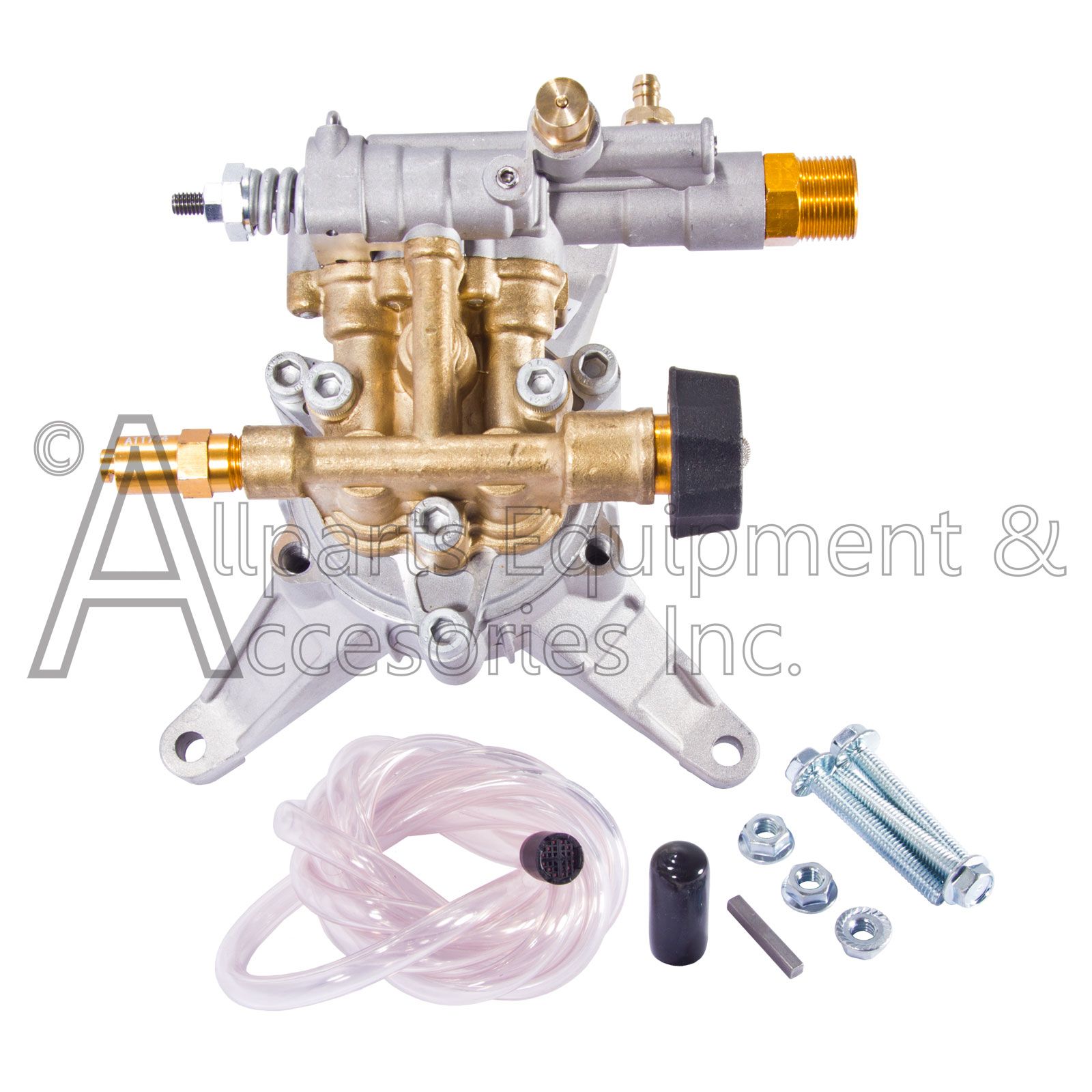

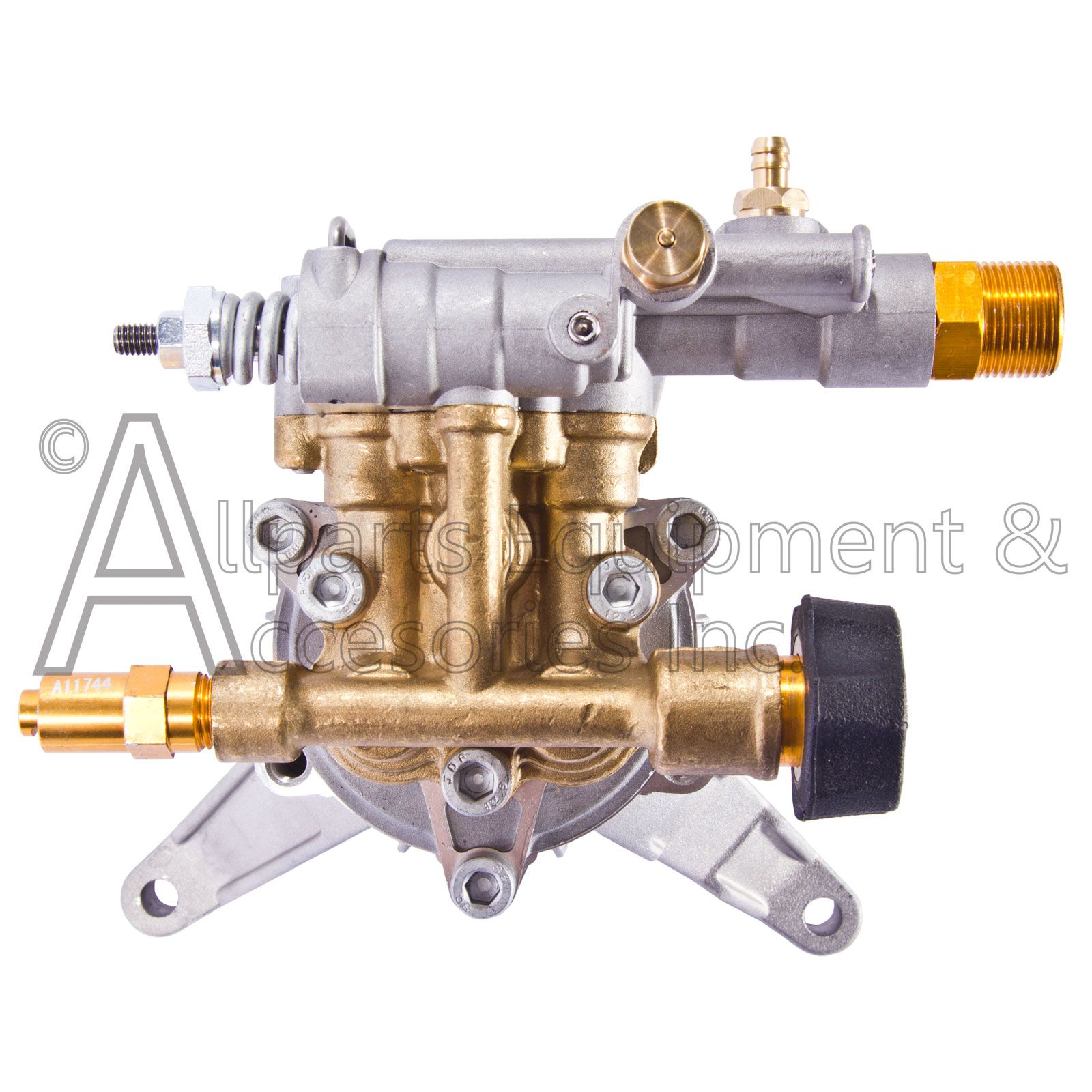

7109614 High Pressure Pump Rear Discharge

7109614 Direct Drive Vertical Oil Lubricated Axial Replacement Pump Kit will fit many brands & models of pressure washers up to 3100 PSI

The 7109614 pump is a rear facing pump vertical mount pump.

To determine if your unit is forward facing or rear facing locate the spark plug on the engine in relation to your hose connections.
Forward facing are on the same side as the spark plug. Rear facing are opposite of the spark plug.

This 7109614 replacement pump comes with the following standard features: SAE 7/8" Shaft & SAE Gas Engine Flange with bolt pattern for rear discharge applications.

High quality oil lubricated pump that produces up to 2.5 gallons per minute makes this replacement pump suitable for most residential pressure washer units.

PowerBoost Technology to enhance cleaning performance, reduce vibration and heat to deliver a better working environment for the operator while extending engine and pump life.

Prefilled crankcase with oil & sealed for simple installation on your existing pressure washer.

Pre-Installed Thermal Relief Protection helps to prevent the pump from overheating with a recommended maximum water inlet temperature of 100 Degree Fahrenheit.

Dual Oversize Radial Ball Bearings & Polished Stainless Steel Pistons and Brass head for better wear and longer pump life.
