7109379 PUMP REPLACEMENT KIT AAA 3800 PSI WITH POWERBOOST

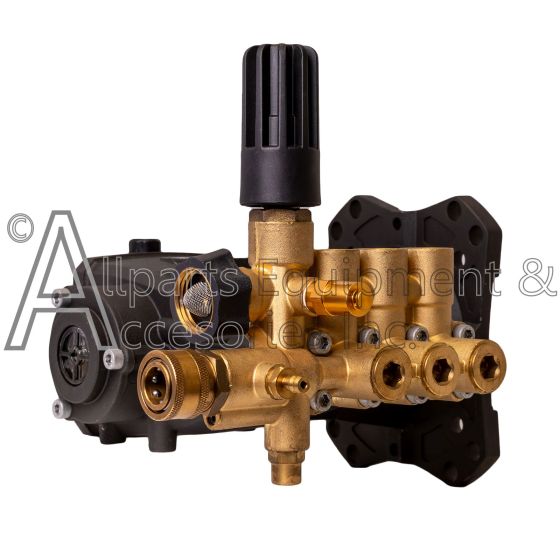

This new style 7109379 AAA FNA-Group pump is an oil-filled Direct Drive pump used in various pressure washers rated up to 3.5 GPM at 3800 PSI.

Features:

• 3800 PSI+ @ 3.5 GPM with Power Boost Technology
• Fully adjustable unloader system with ergonomic control
• Sight glass and advanced oil seal technology does away with the need for a dipstick
• Thermal relief protection to prevent pump overheating
• Dual oversized radial ball bearings are installed for better wear, friction resistance and precision ceramic coated pistons for extended seal life
• Crankcase is manufactured from fully anodized die-cast aluminum for corrosion protection and is sealed to prevent contamination and lube failure
• Gas engine flange and hollow shaft that fits most horizontal shaft engines

Specifications:

• PSI: 3800
• GPM: 3.5

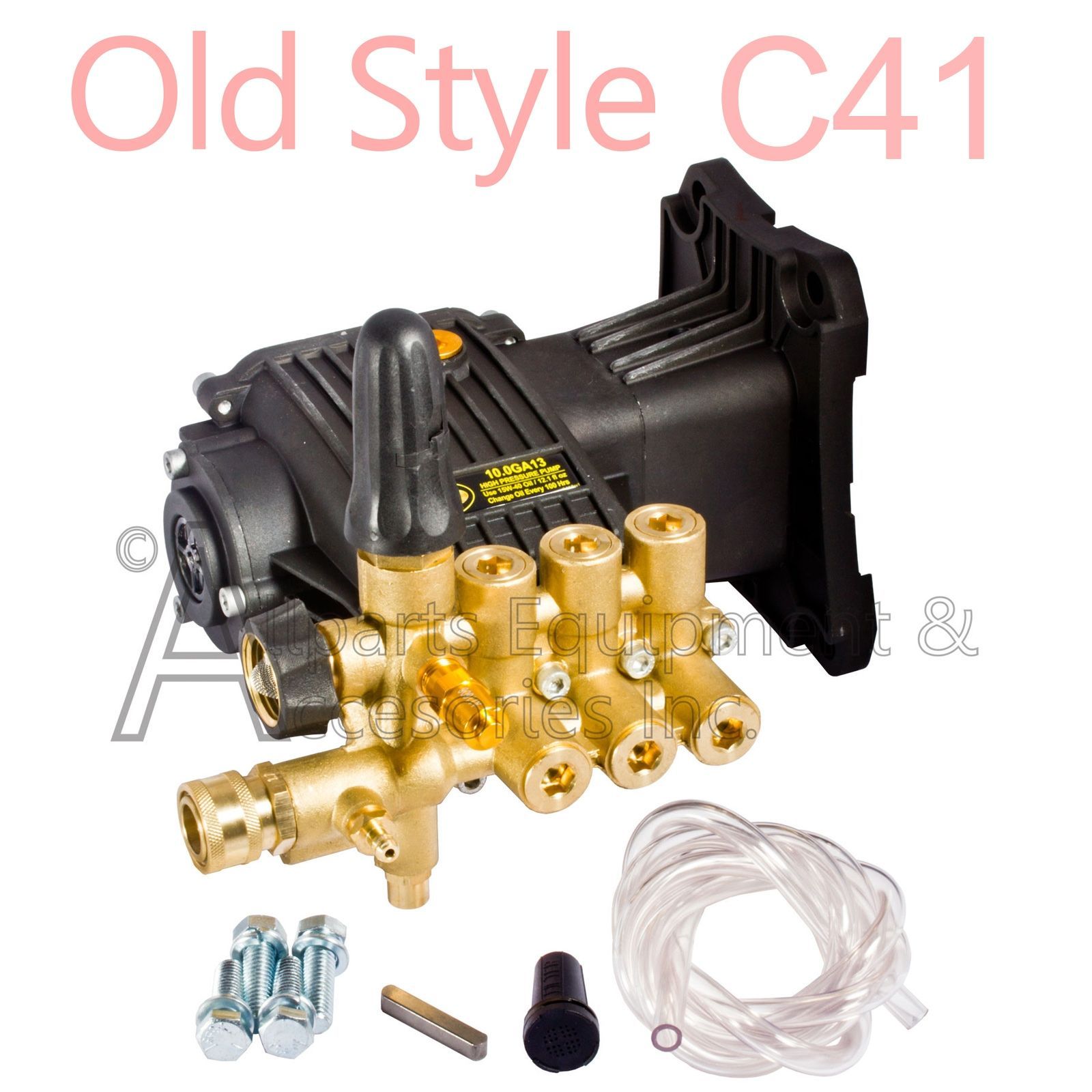

• Kit Includes: Siphon tube with filter, mounting bolts, and shaft key
• Inlet Port: 3/4" GH
• Discharge Port: 3/8" Quick connect female
• Inlet Pressure Range: 10-60 PSI
• Thermal Relief Port: 1/2” NPT
• Shaft Diameter: 24mm
• Key Way: M8
• Pump Oil Capacity: 11 fluid Oz.
• Head: Brass
