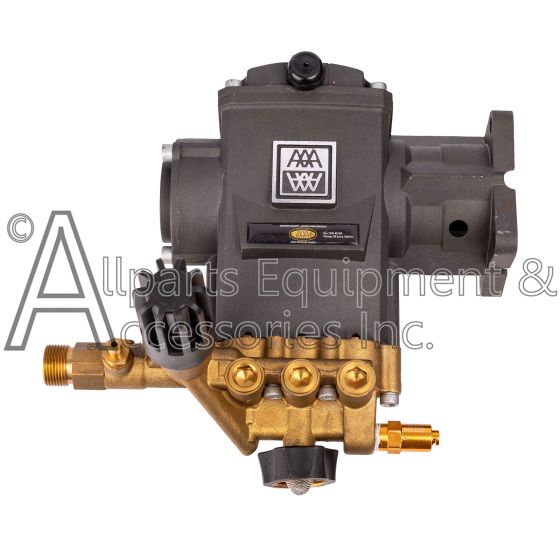

4300016 C32 Series AAA Pump with Adjustable Unloader

The 4300016 is a C32 Series AAA Triplex pump that features an adjustable unloader valve. It is rated at 3400 PSI with a flow rate of 2.5 GPM.

This pump is specifically designed for horizontal mounting.

Features of the 4300016 Pump

• PowerBoost Technology increases nozzle pressure.
• Fully adjustable unloader system with ergonomic control
• Sight glass and advanced oil seal technology, does away with the need for a dipstick
• Thermal relief protection to prevent pump overheating
• Dual oversized radial ball bearings reduce overall wear from friction.
• Crankcase is manufactured from fully anodized die cast aluminum.
• Gas engine flange and hollow shaft that fits most horizontal shaft engines

Specifications

Max. Burst Pressure Rating: 3400 PSI

Flow Rate: 2.5 GPM

Inlet Port: 3/4" GH

Discharge Port: Threaded male fitting

Inlet Pressure Range: 10-60 PSI

Thermal Relief Port: 1/4" NPT

Shaft Diameter: 3/4"

Flange Bolt Pattern: SAE J-609A Industry Standard

Key Way: 3/16"

Pump Oil Capacity: 8.0 fl oz.
