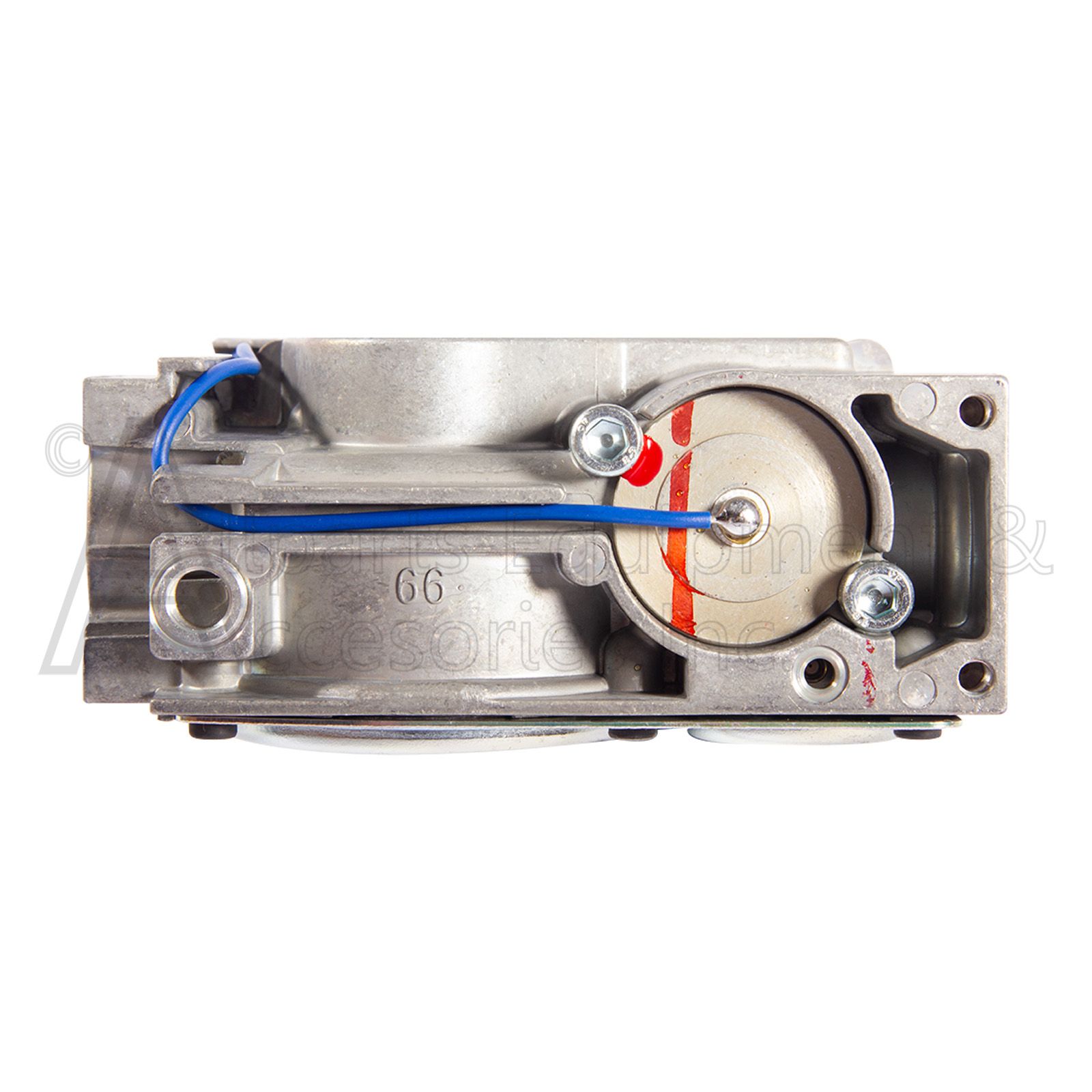

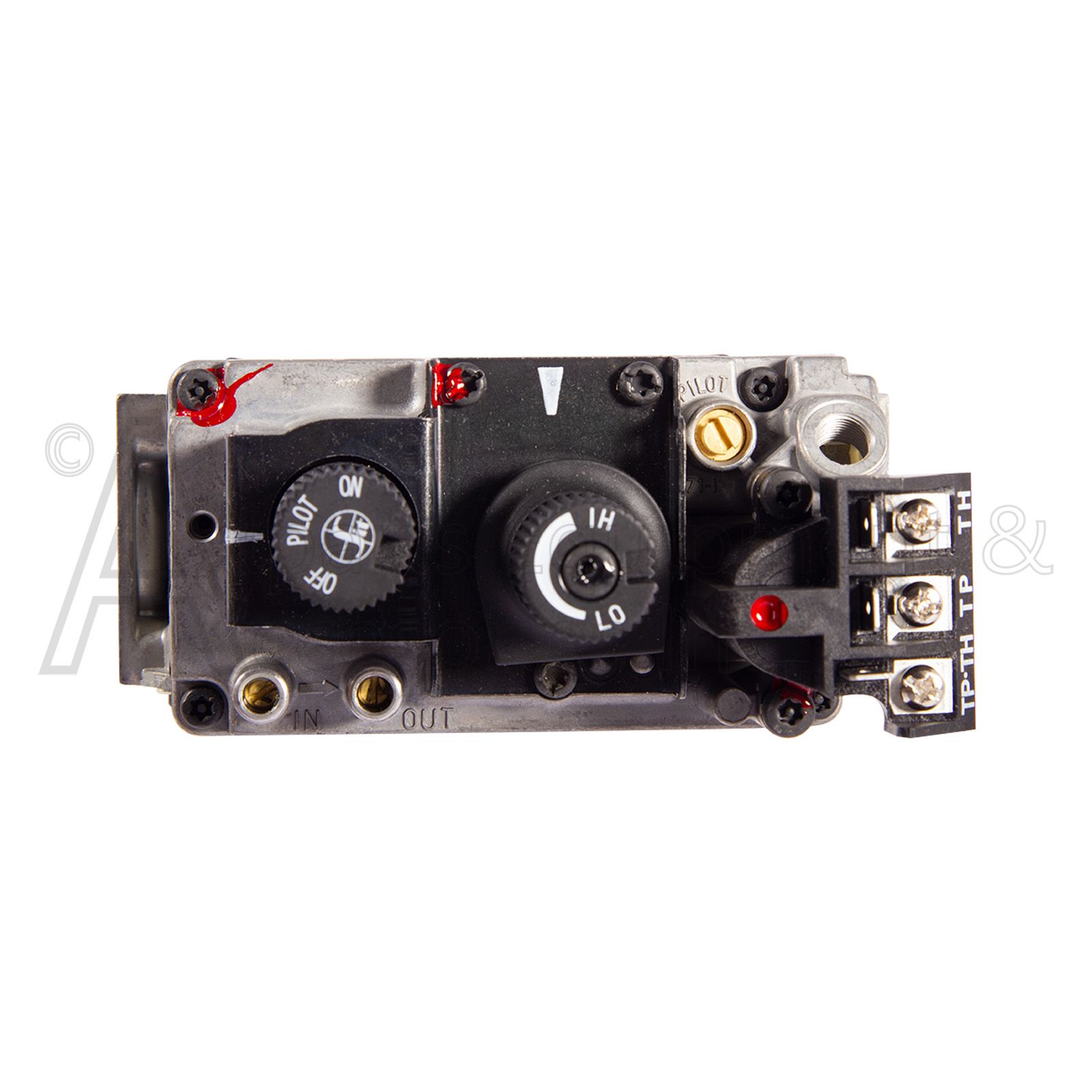

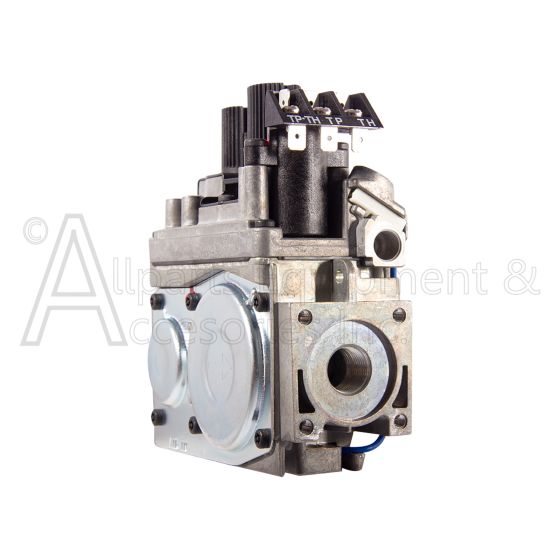

37D0118 Gas Valve Propane Gas Millivolt for Direct Vent Fireplaces

The 37D0118 liquid propane gas valve was designed for use in select models of Hearth & Home brand fireplaces. Manufactured by SIT, this millivolt propane gas valve adjusts between HI/LO and features a manual control valve.

This propane valve was used in Hearth & Home brands such as Simplifire, Majestic, Monessen, Majestic, Quadrafire, Vermont Castings, Harmon, Heat & Glow, and DutchWest.

Service Note

Please note that the 37D0118 valve is similar in design and function to many other SIT valves. These valves look similar but have subtle differences that prevent them from being used interchangeably.

Consult the owner's manual for your propane gas fire appliance before installing a replacement gas valve.  Using an authorized replacement valve will guarantee the safe operation of your fireplace.

Features of the 37D0118 Gas Valve

• Minimum voltage: 145mV
• Coil resistance: 2.25±0.5
• Thermo-Electric Unit Hold-in Current: Less than 285Ma
• Drop-out Current: Greater than 125mA with coil resistance 0.018± 0.003

• Gas Type: Liquid Propane Gas
• Manual Pressure Set-Point: 10.0” w.c. ± 0.4
• Range of Adjustment: 10.0” w.c. -6.3” w.c. Set at 30K btu/hr
• Thermocouple Connection: 11/32 ASA-DNC
• Propane Gas Inlet: 3/8 in. NPT
• Propane Gas Outlet: 3/8 in. NPT
• Maximum Propane Gas Inlet Pressure: 1/2 PSIG

• Ambient Operating Temperature: 32° to 175° F
• BTU per Hour Input: 162,000 BTU
• Regulation Capacity: 8,100 to 315,900 BTU AP per hour
• Maximum Inlet Pressure: 1/2 PSIG

For further questions or to verify your application please contact us customerservice@allpartsinc.com or by text @ 269-447-0412
