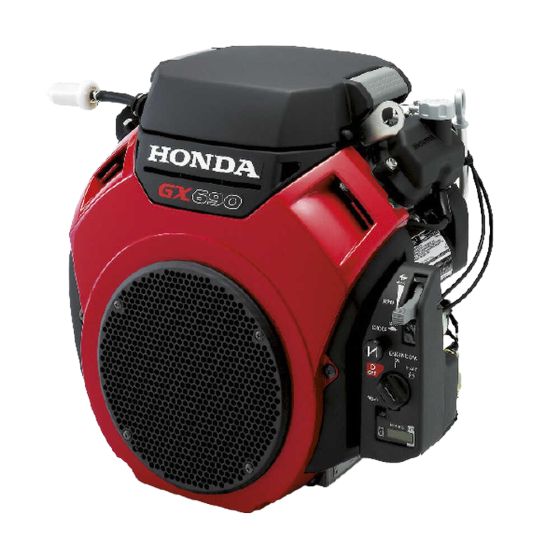

110166 Honda GX690 Horizontal V-Twin Engine, 22.1 HP

The 110166 is a Honda engine rated at 22.1 HP. It has a V-Twin design and a horizontal-mounting crankshaft. The 110166 is rated at a net power of 22.1 HP at 3600 RPM.

This Honda engine is designed to deliver the reliability required for demanding commercial applications, including generators, pressure washers, pumps, and other professional appliances.

The 110166 engine is also under Honda model number GX690RH-VXE2.

Features of the GX690 Honda 110166 Engine

• Delivers efficient performance with a high net power output.
• Built to last, even in demanding industrial jobsites.
• The dual air intake filters help protect the engine, even on dusty jobsites.
• The integrated cylinder and head allows for enhanced airflow through the engine.
• Designed with stability in mind to prevent vibration-caused friction wear.
• Uses a compact and durable overhead valve / pushrod design.

Specifications

Net Power: 22.1 HP

Rotation Speed: 3600 RPM

Engine Displacement: 688cc

Compression Ratio: 9.3:1

Engine Oil Capacity: 57.5 fl. oz.

Bore Size: 3.07 in.

Stroke Size: 2.83 in.

Stroke Count: 4-stroke

Dimensions:

Length: 16.9 in.

Width: 16.1 in.

Height: 17.2 in.

Dry Weight: 98.3 lbs.
