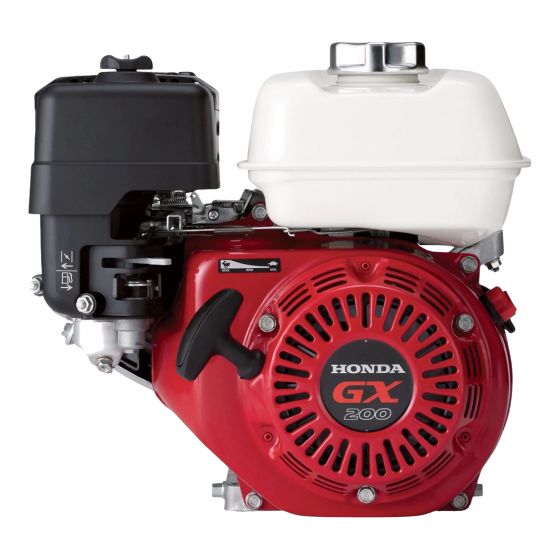

110123 Honda GX200 Horizontal Engine with Recoil Starter, Red

The 110123 is a Honda GX200 series engine. This 49-State engine uses a pull-cord recoil starter with red recoil housing. The 110123 is built for reliable and durable performance, even in demanding industrial applications.

This 110123 engine is also under the Honda model number GX200UT2X-QX2.

Features of the 110123 Honda Engine

• Uses a combustion-efficient overhead valve design.
• Easy to start with ergonomically-designed recoil starter with an automatic compression system.
• Built from durable and long lasting materials.
• Features a transistorized ignition system.
• Designed with oversized ball bearings and precision components for low-vibration operation.

Specifications

Engine Displacement: 196cc

Net Power Rating: 5.8 HP

Max. Net Torque: 2.78 lbs. per ft.

Bore: 2.67 in.

Stroke: 2.12 in.

Compression Ratio: 8.5:1

Fuel Type: Gasoline

Fuel Tank Capacity: 3.1 Liters

Engine Oil Capacity: 20 1/4 fl. oz.

Dimensions:

Length: 12 5/8 in.

Height: 13 5/8 in.

Width: 14 3/4 in.

Dry Weight: 35 1/2 lbs.
