100282 Honda GX630 V-Twin Engine with 20 HP
Out Of Stock
Part Number
100282
$4,216.67

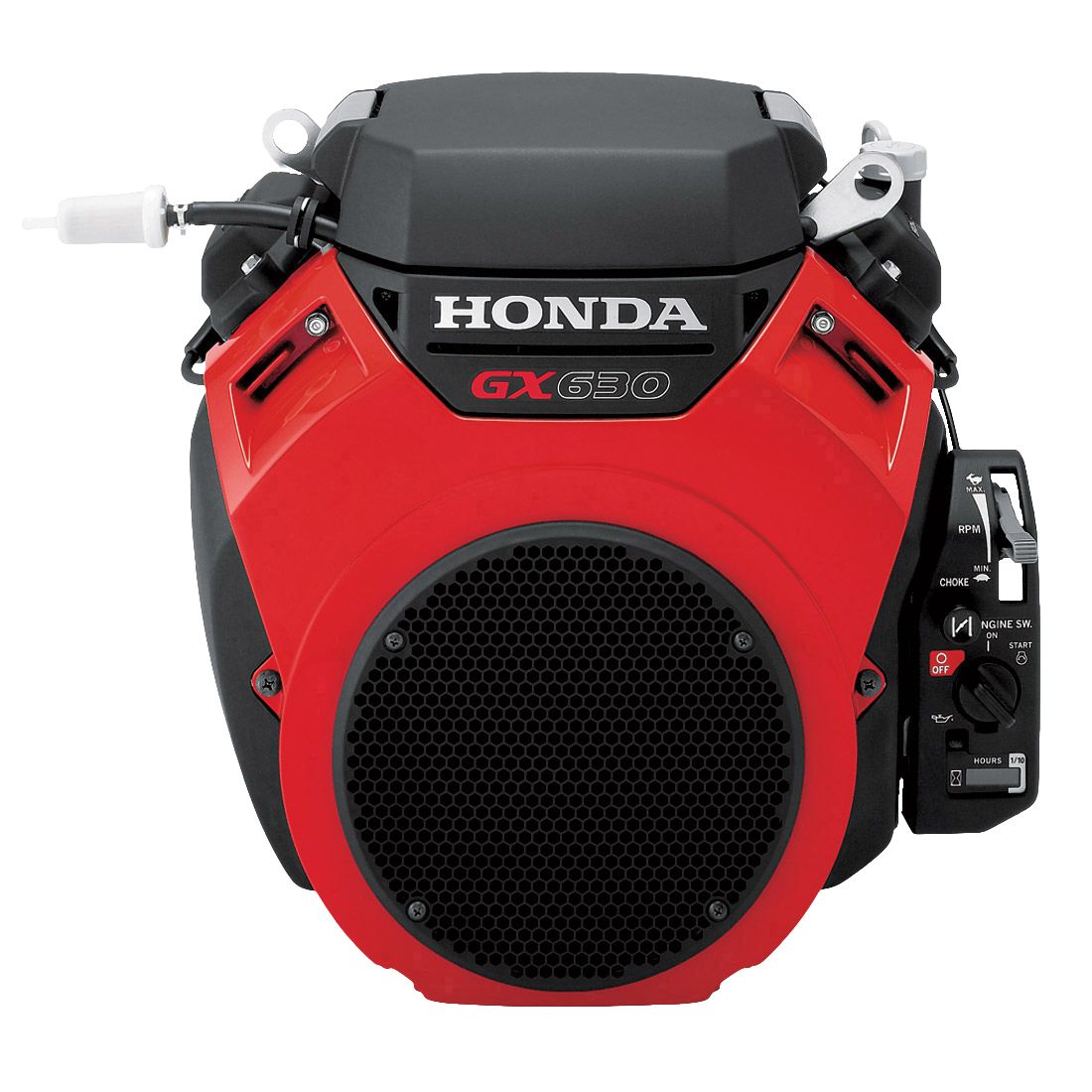

The 100282 is a Honda GX630 series V-Twin engine. This powerful and reliable Honda engine is rated at a net power output of 20 HP and a max engine speed of 3,600 RPM.
Honda's 100282 is built for heavy-duty use, featuring an efficient air-cooling design, a dual-element air filter system, and a ball bearing stabilized forged steel crankshaft.
Features of the 100282 Engine
- Built with durable components, such as a forged steel crankshaft and steel connecting rods.
- Designed with a high compression rate that boosts fuel efficiency.
- Uses a high-capacity oil pump for consistent oil application.
- Air-cooling is provided by a powerful 36-blade cooling fan.
- Dual air filters protect the engine's air intake.
- Designed for use with pressure washers, generators, pumps, garden equipment, and more.
Specifications of the 100282 Engine
Net Power: 20.8 HP / 3,600 RPM
Net Torque: 35.6 lb-ft.
Fuel Type: Gasoline, Unleaded 86 Octane or Higher
Compression Ratio: 9.3:1
Bore X Stroke: 3.07 x 2.80
Oil Capacity: 672 fl. oz.
Dimensions:
Length: 15.9 in.
Width: 16.1 in.
Height: 17.2 in.
Dry Weight: 96.8 lbs.
