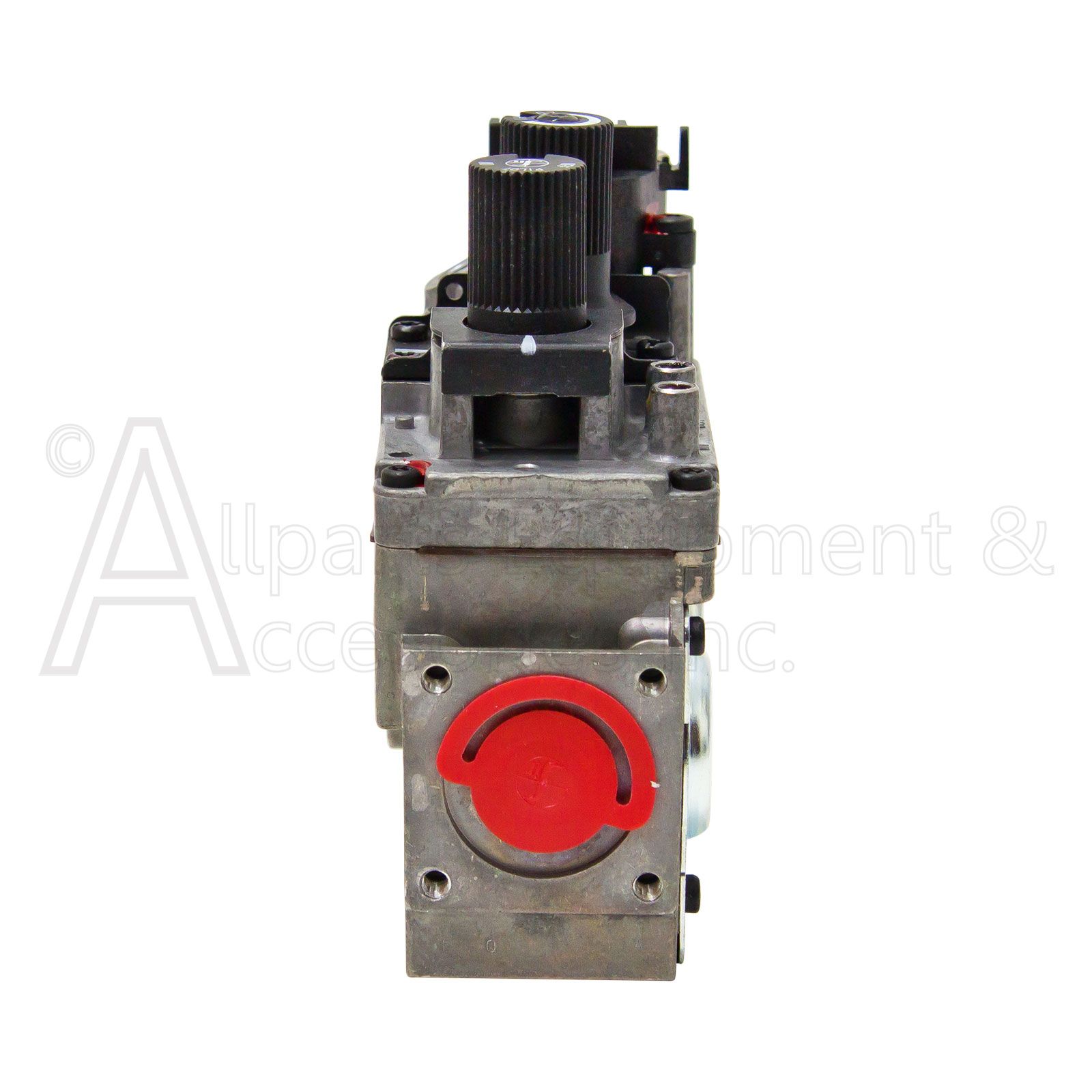

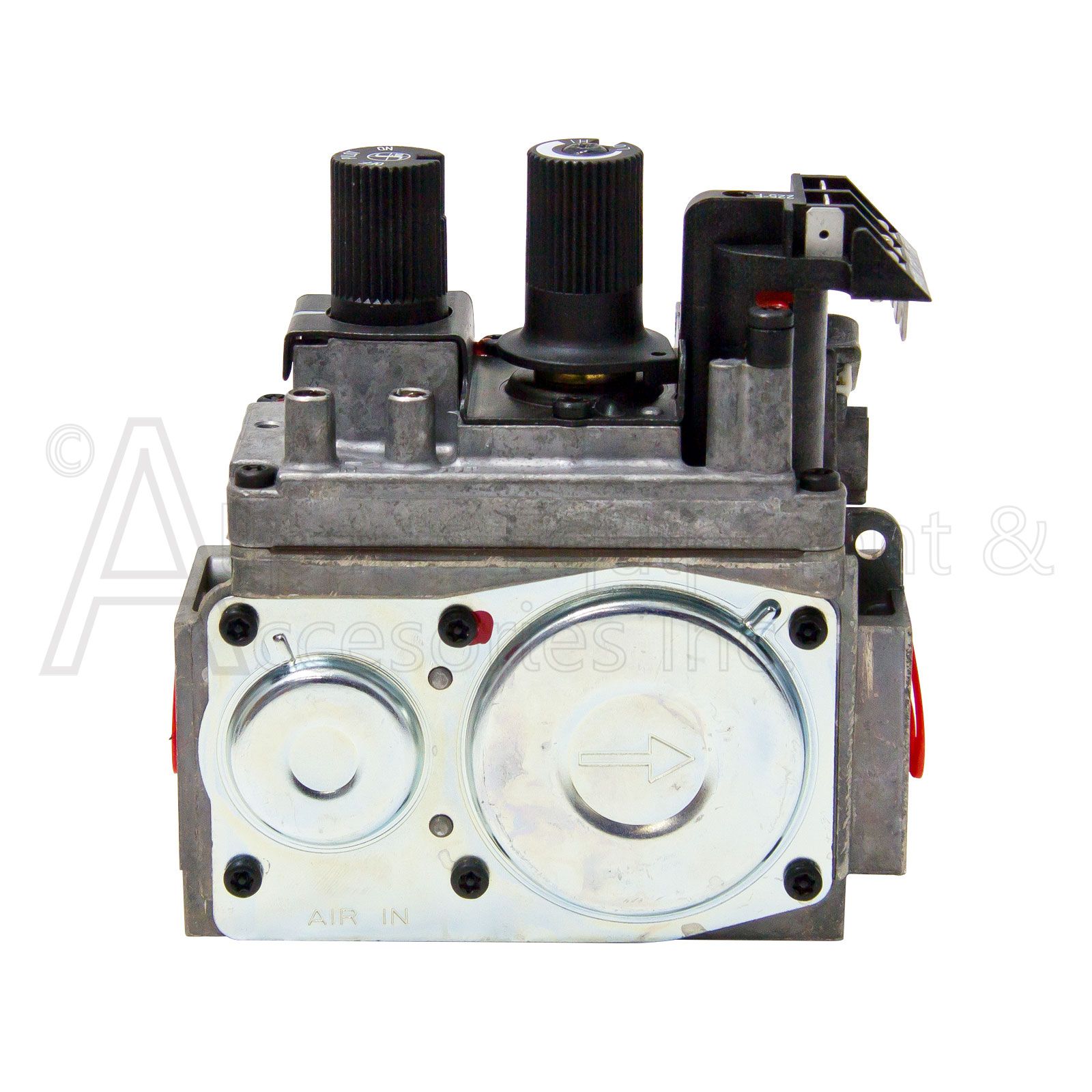

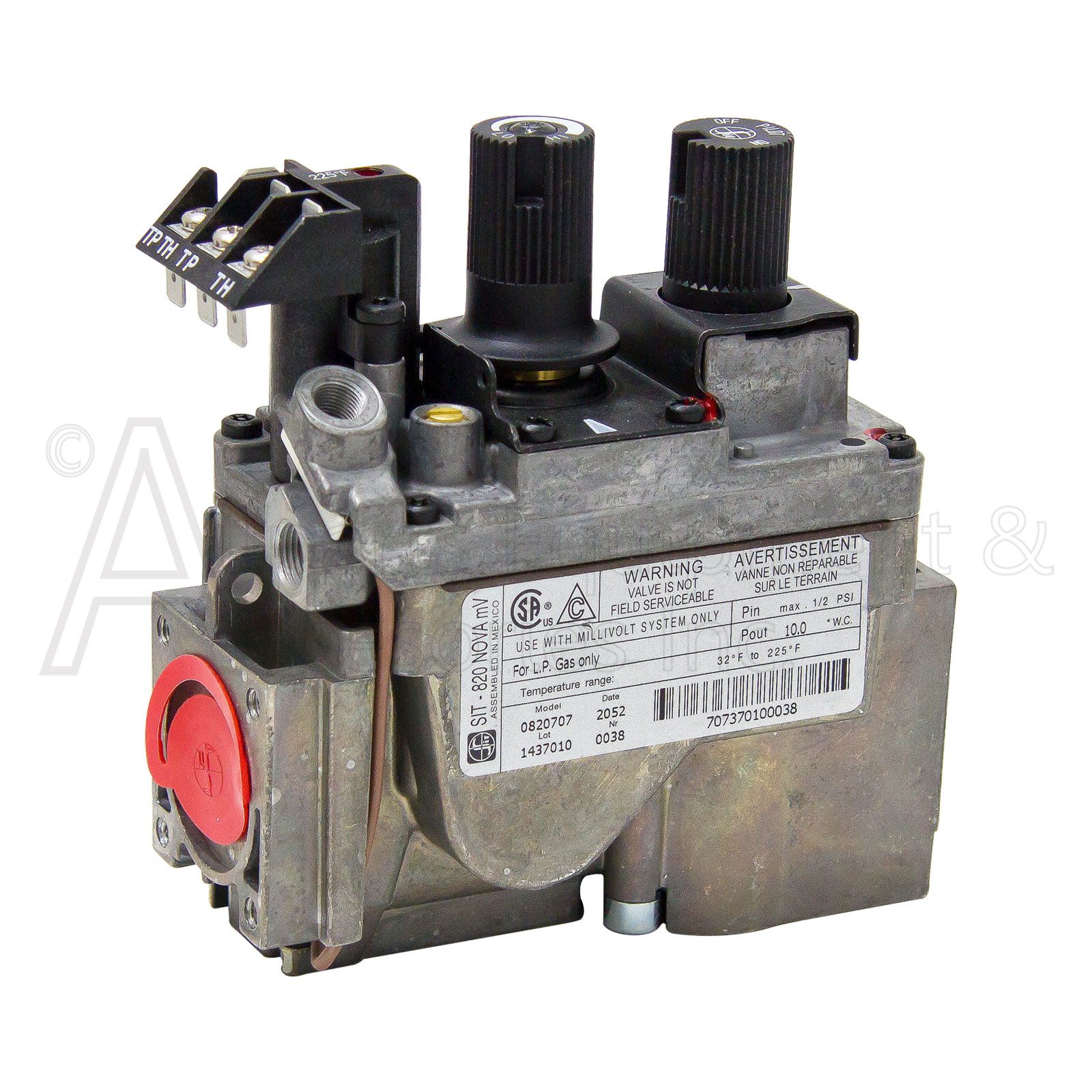

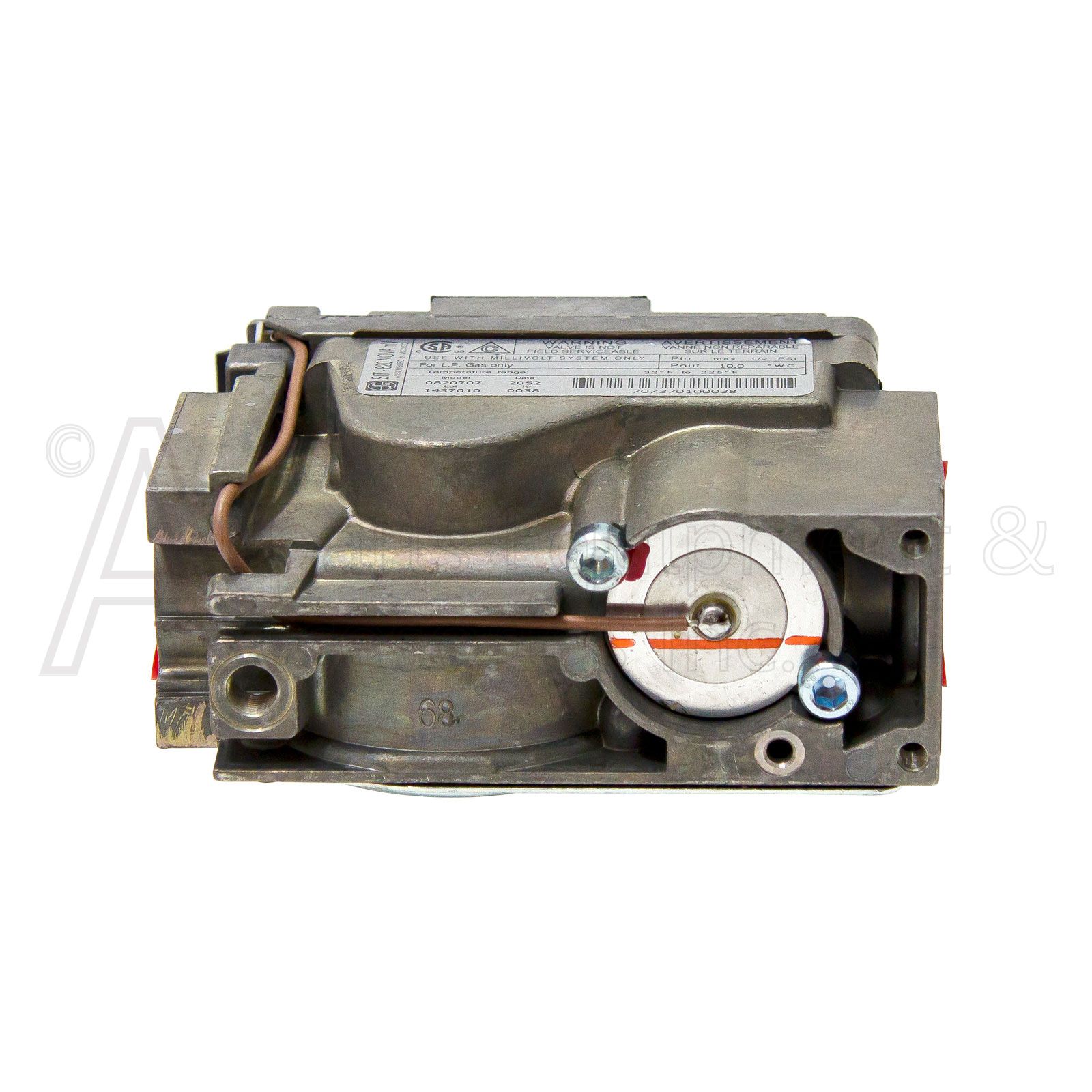

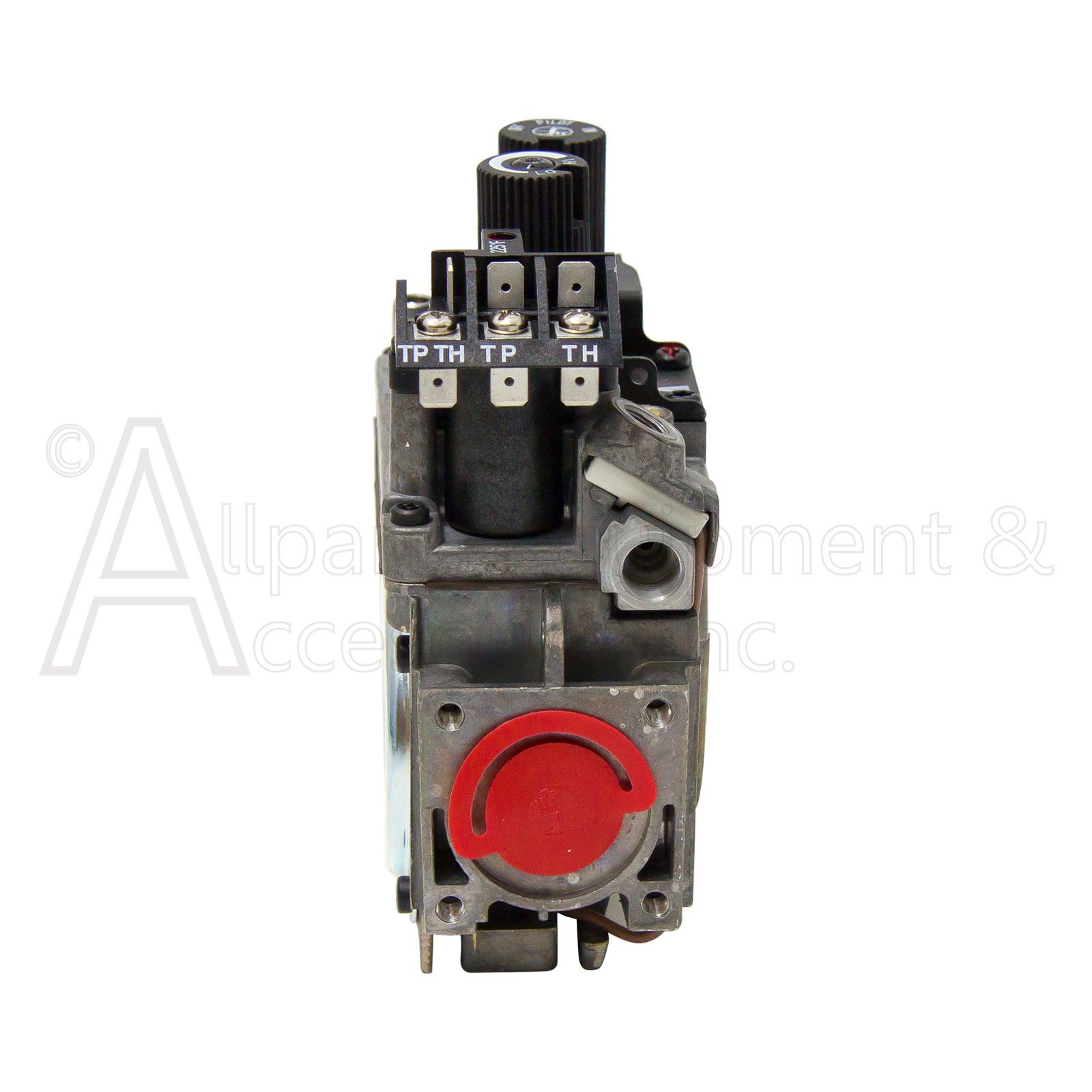

0820707 Gas Valve Propane Gas Hi-Lo Manual Sit 820 Series

0820707 SIT NOVA mV LPG Propane Gas Millivolt remote ready gas valve with variable flame adjustment.

The Sit Controls gas valves 0820707, 820707, 0.820.707  all have the following specifications.

• Split-system millivolt controlled liquid propane gas valve for use in vented appliances.

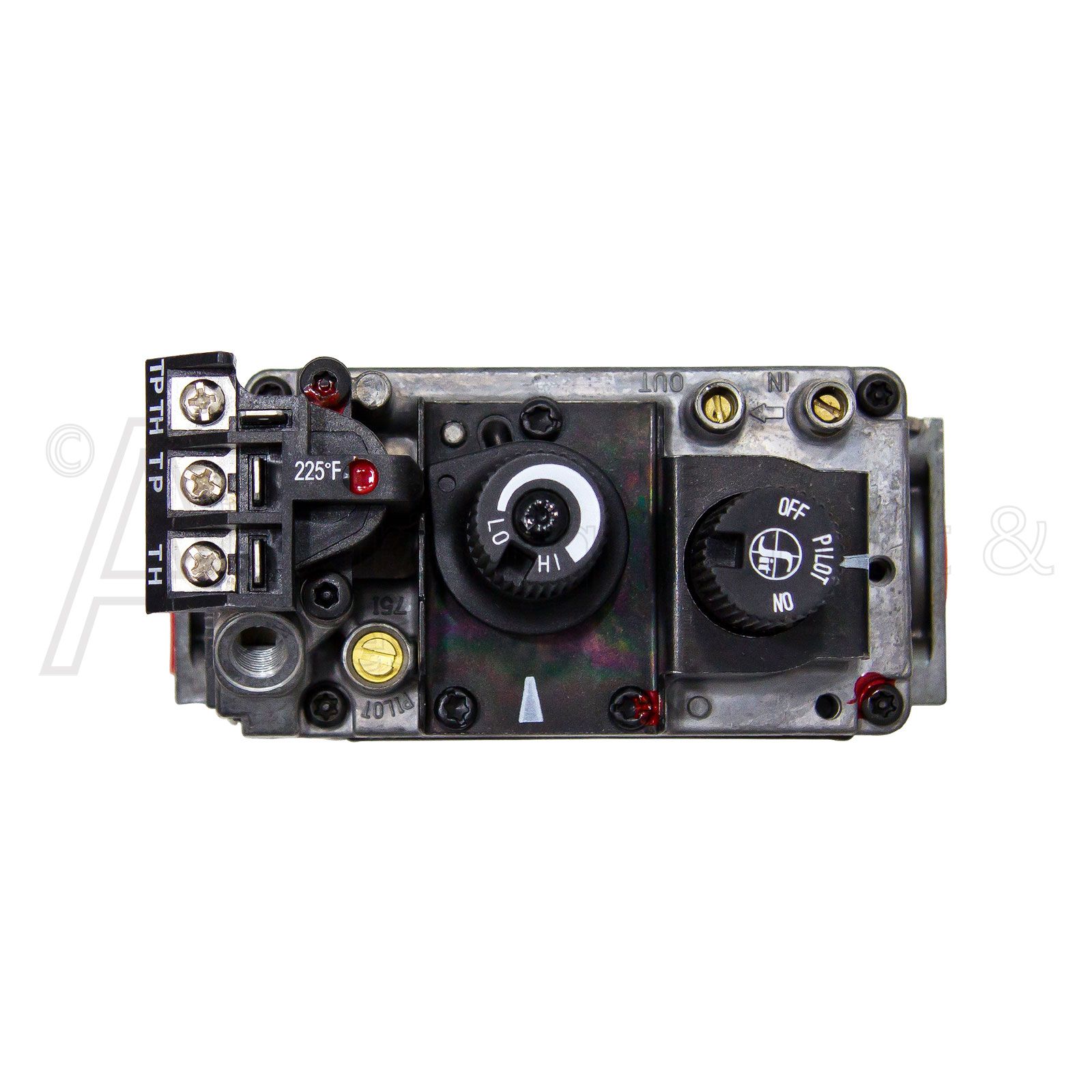

• HI/LO burner adjustment with manually operated knob

• Minimum voltage 145mV Coil resistance 2.25±0.5

• Thermo-Electric Unit Hold-in current less than 285Ma

• Drop-out current Greater than 125mA with coil resistance 0.018± 0.003

• Gas type Propane Gas HI/LO action Manual Pressure set-point 10.0” w.c. ± 0.4

• Range of adjustment 10.0” w.c. -3.6” w.c. Set at 30K btu/hr

• Thermocouple connection 11/32 ASA-DNC
  Propane "LPG" Gas Inlet 3/8 in. NPT

• Propane "LPG" Gas Outlet 3/8 in. NPT

• Maximum Propane Gas inlet pressure 1/2 PSIG Ambient operating

• Temperature 32° to 175° F

• Maximum @ 1 in. w.c. pressure drop 162,000 BTU per hour Regulation capacity 8,100 to 315,900 BTU AP per hour

• Maximum Inlet Pressure 1/2 PSIG

• Ambient operating temperature 32 Degrees to 225 Degree Fahrenheit
