0.240.005 THERMO-GENERATOR WITH 42" WIRE OUTPUT RATING 400-750Mv

More Views

$49.80

0.240.005 THERMO-GENERATOR WITH 42" WIRE OUTPUT RATING 400-750Mv

Part Number: 0.240.005

Brand: SIT CONTROLS AND DEVICES

This item is not currently in stock and will be shipped as soon as possible. Typical lead times are 5-10 business days for common stock items and 14-21 days for non stock and special orders. Please email customer service for specific details if required at customerservice@allpartsinc.com

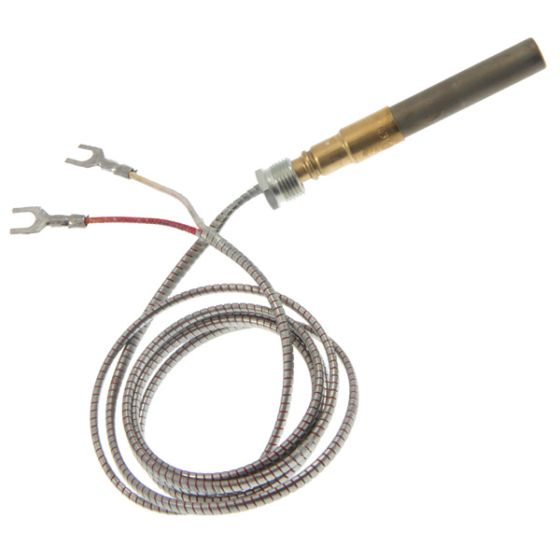

The 0.240.005 Sit Thermopile Generator generates sufficient power to operate an automatic millivolt gas control system, independent of any outside power source.

This 0.240.005 Thermopile Generator Features: Push-in clip, split nut, and adapter assembly for easy pilot burner installation. Spade or quick-connect terminals available for millivolt gas control connections.
Male nut connector for Pilotstat® safety control power units.
Description
The product specifications for the SIT 0.240.005 are as follows:

Voltage: 750 mV
Connection Type: Spade Terminals
Lead Length (in.): 42 in.
Lead Length (mm):888 mm
Open Circuit Output (mV): 600 mV to 750 mV
Resistance: 2.88 ohms
Temperature Ratings (F): Hot Junction 1400 F
Temperature Ratings (C): Hot Junction 760 C
Temperature Ratings (F): Cold Junction 780 F
Temperature Ratings (C): Cold Junction 416 C
Includes:Thermopile attaching nut
