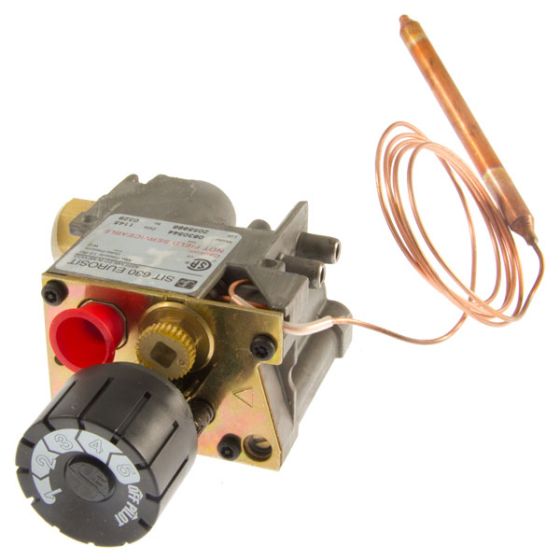

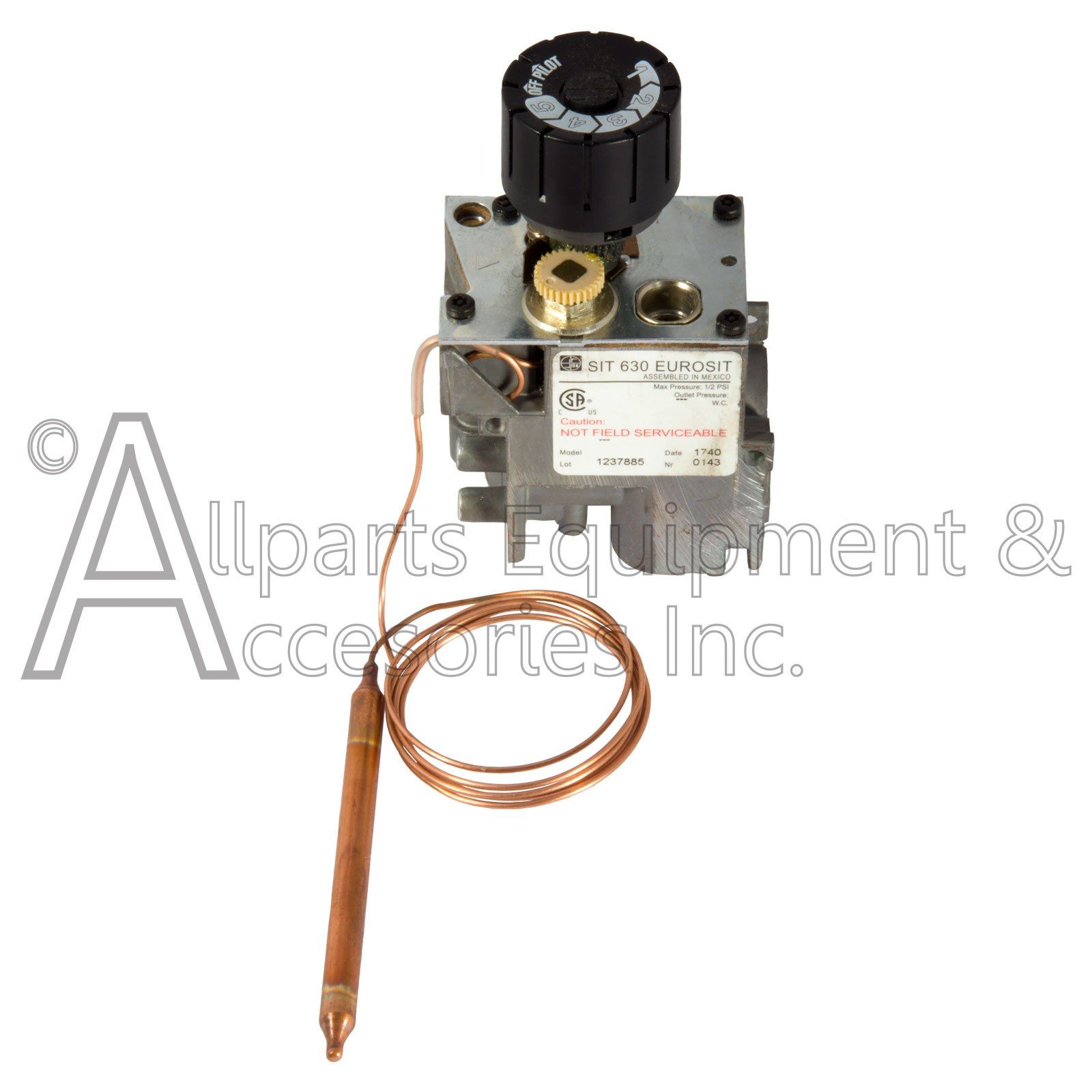

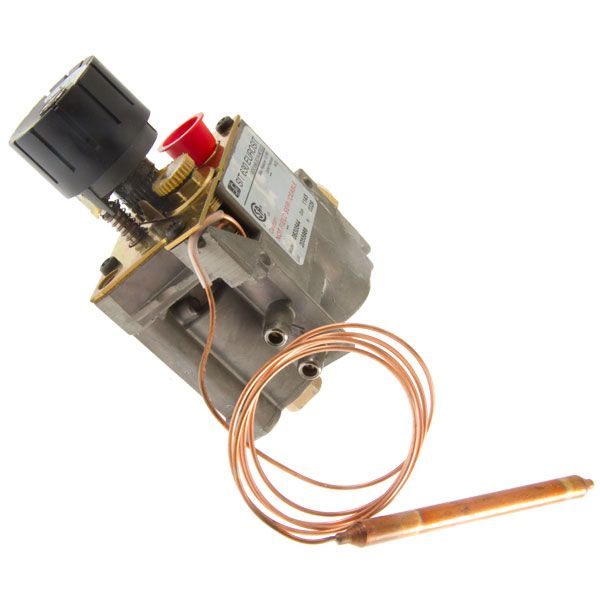

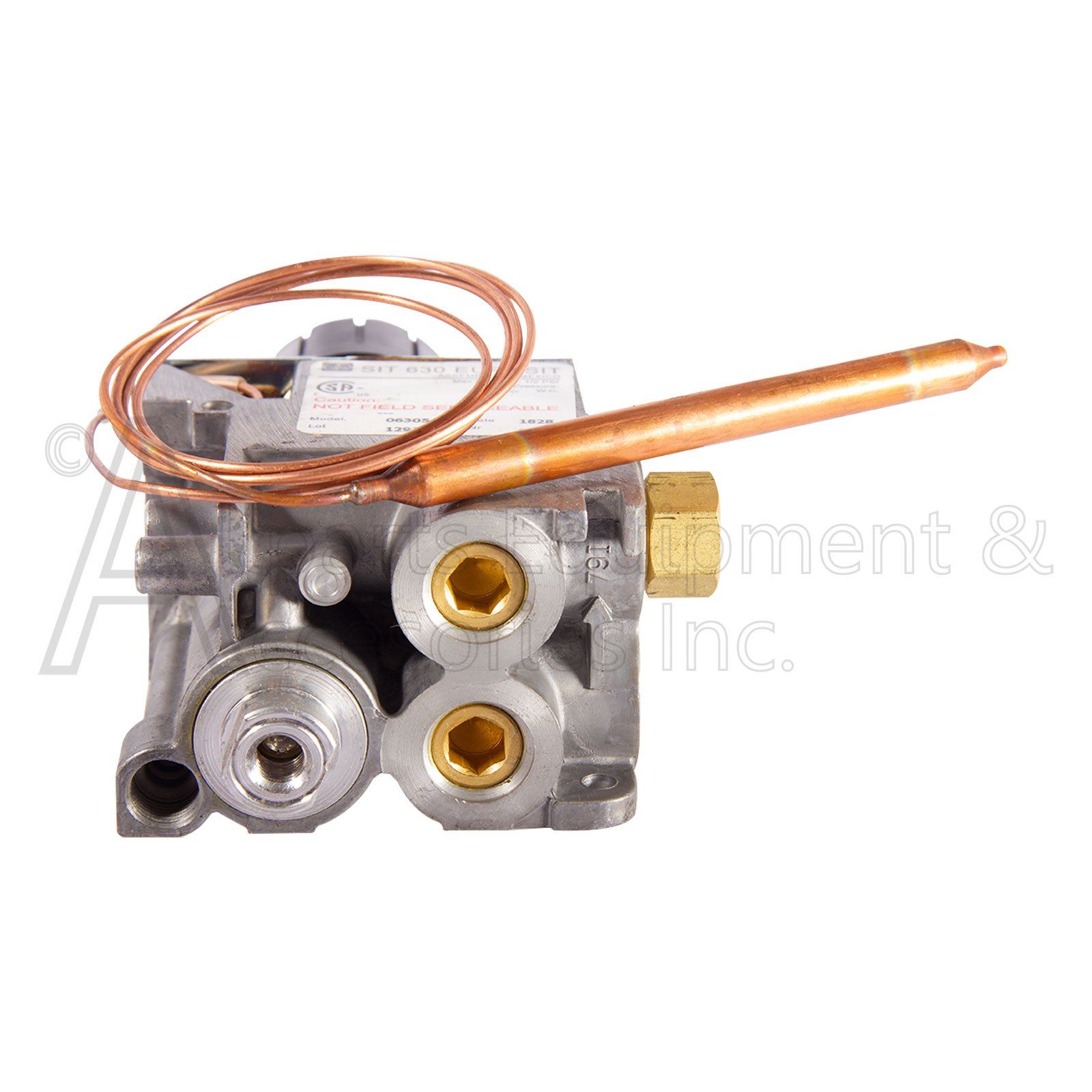

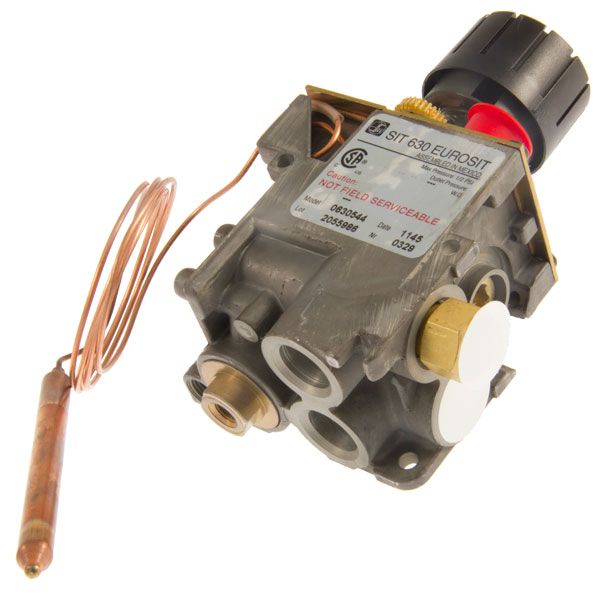

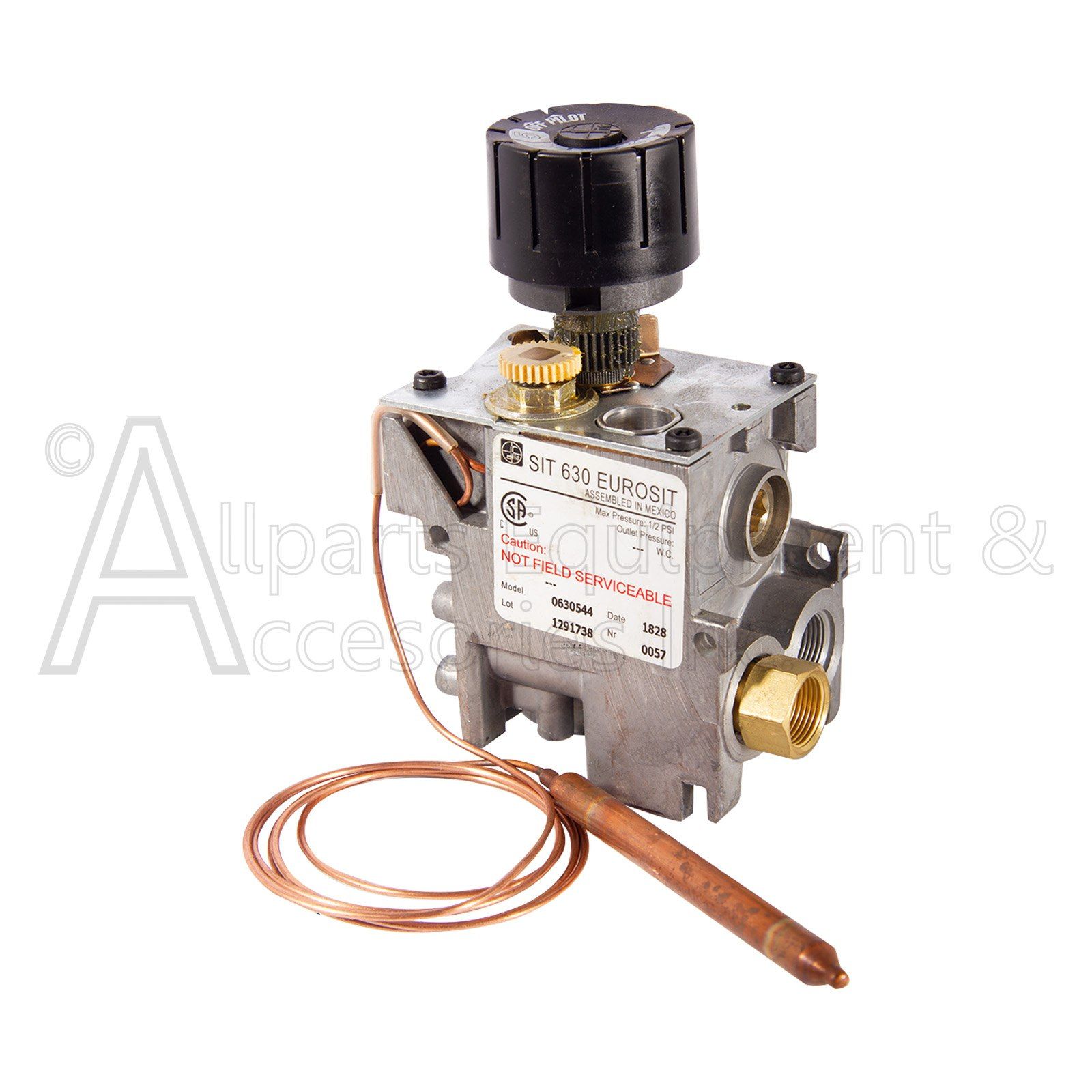

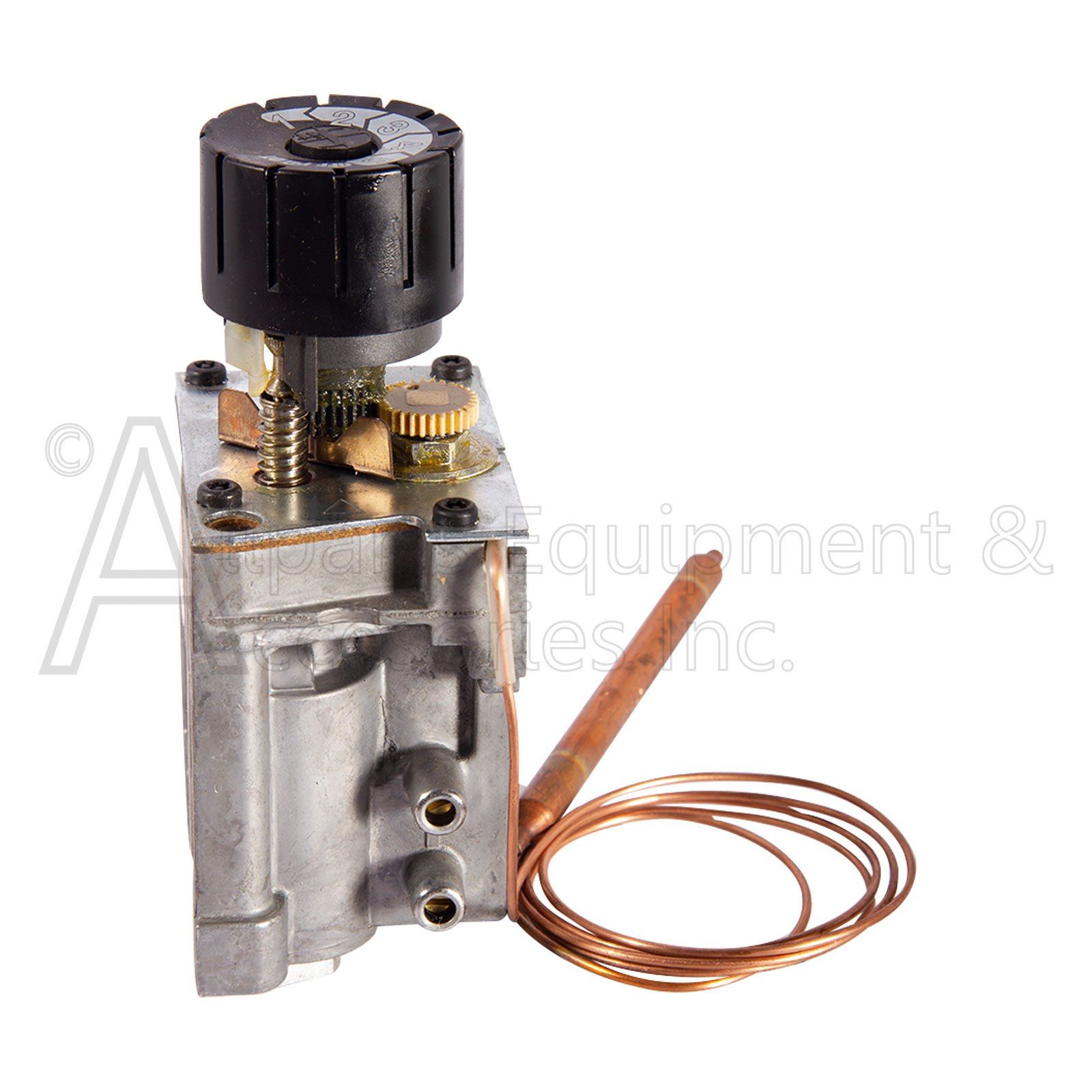

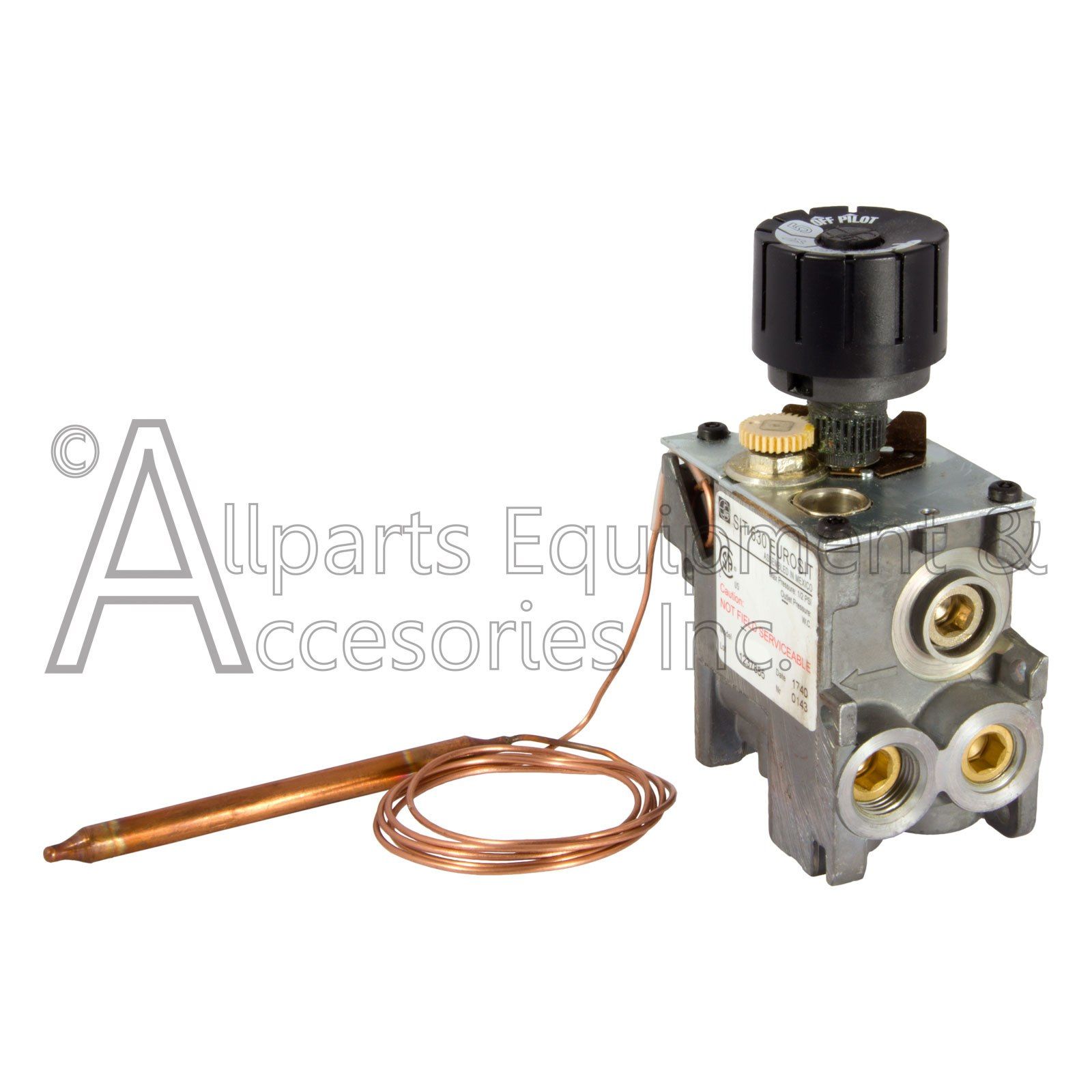

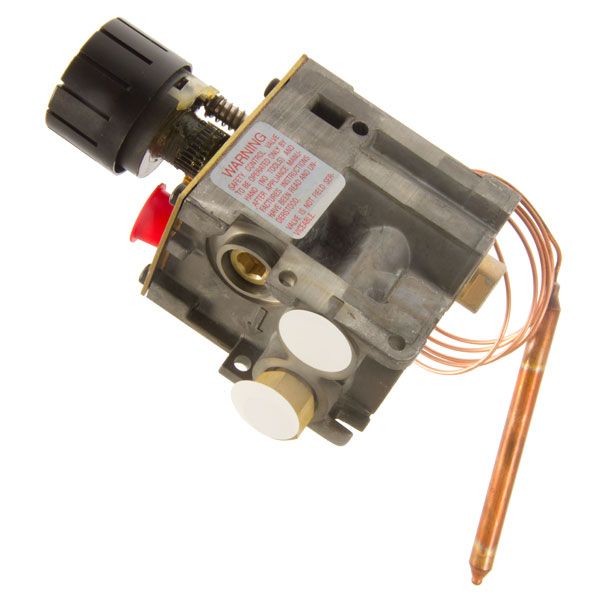

The Eurosit 630544 Gas Control valve by Sit Controls is a multi function valve that will provide long life for your appliance using either Liquid Propane Gas LPG or Natural Gas NG.
This Eurosit 630544 Multi Gas control valve has been used by many different manufactures in producing several different hearth products including Gas Logs, Vent-Free Wall Heaters, Venteless Fireplaces, Pedestal Stoves and other vent-free hearth related products.
The SIT 630544 Eurosit Gas Control Valve is a multi-functional single control knob combination gas control with combined modulating snap action thermostat and safety interlock system.
The SIT 630 Eurosit gas control valve is particularly for use with most gas hearth related heating applications as well as many other vent-free appliance applications.
The SIT 630 Eurosit does not require electrical supply and is suitable for operations in ambient temperatures up to 120 degrees Celsius.
The 630 Series gas valve is available in a wide range of configurations. It is particularly suitable for use in vent free gas wall heaters, vent-free gas fireplaces, gas log sets and many hearth appliances that require accurate temperature control without an external power supply.
The 630 Series gas control valve is configured for both LPG and NG applications.
The SIT 630 Eurosit Valve has the following features:

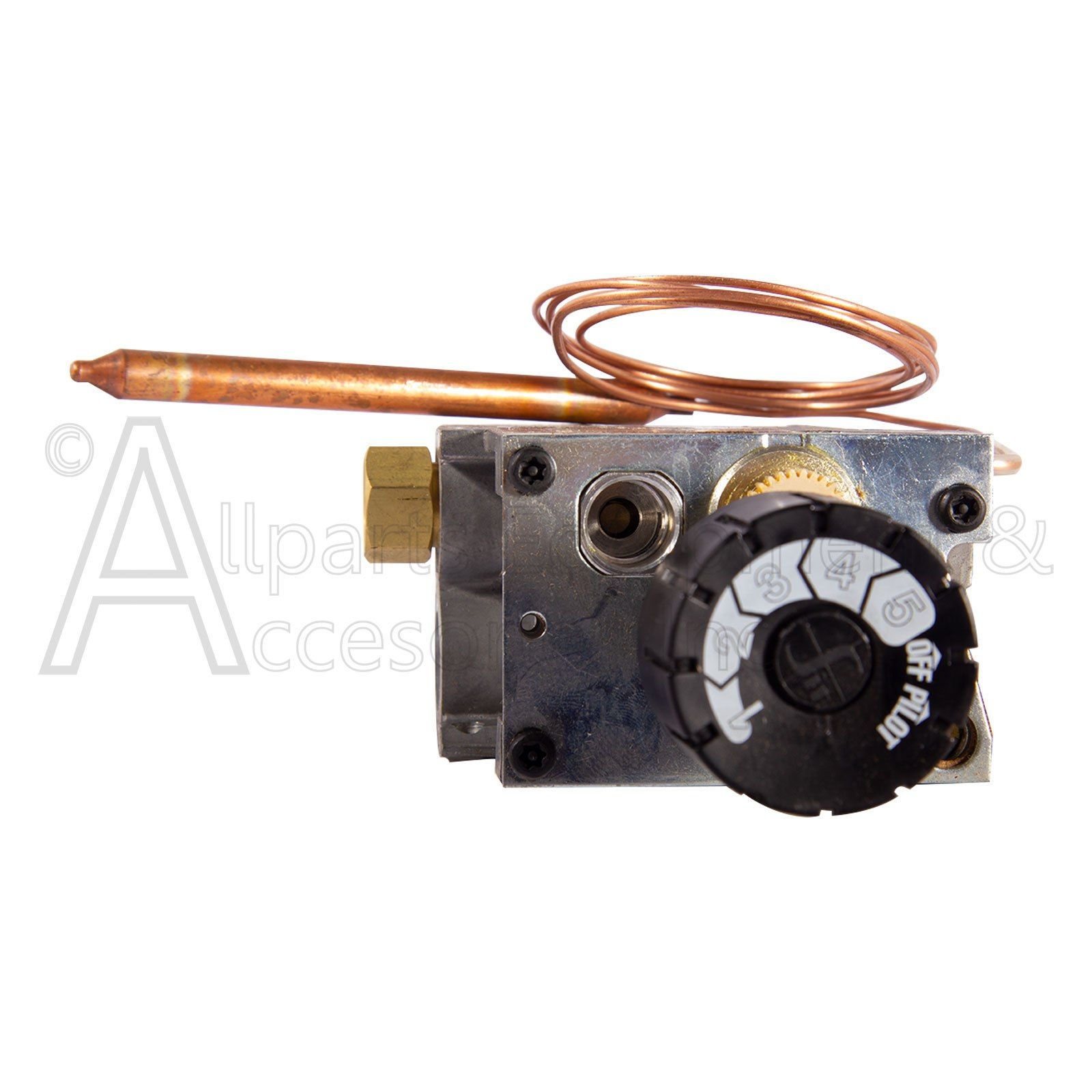

Control knob with positions for off, pilot and temperature selections
Thermo-electric flame supervision device with optional interlock
Pressure regulator or alternatively flow adjuster
Modulating and on-off thermostat
Pilot outlet with pre-setting device of the gas flow
Inlet and Pilot Filters
Inlet and Outlet pressure test points
Side or bottom main gas inlet and outlet
Main gas connections with threaded 3/8 NPT pipe or suitable for nut or olive fitting.
