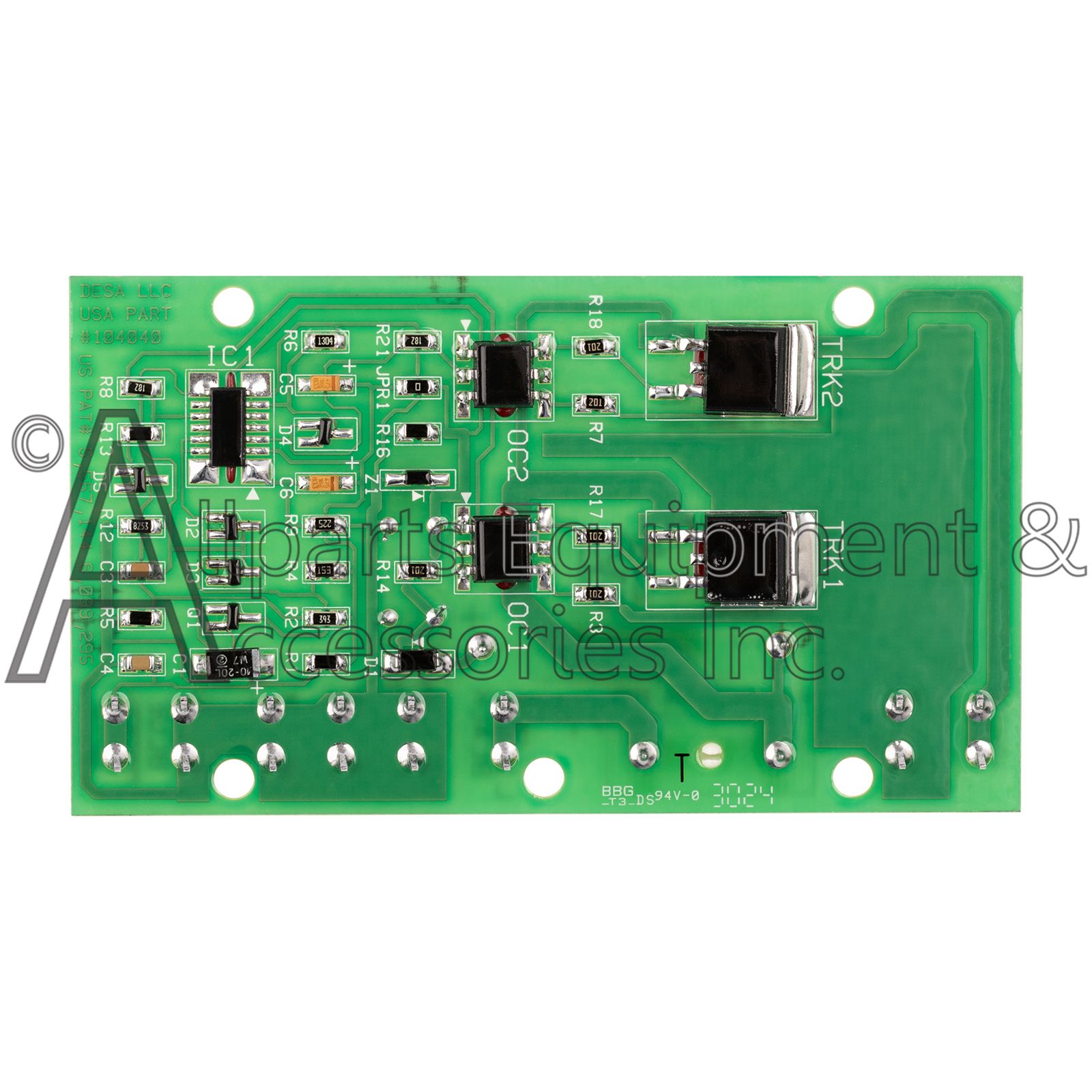

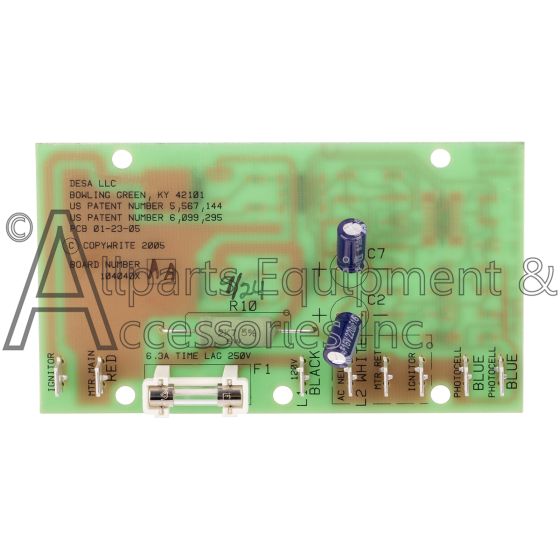

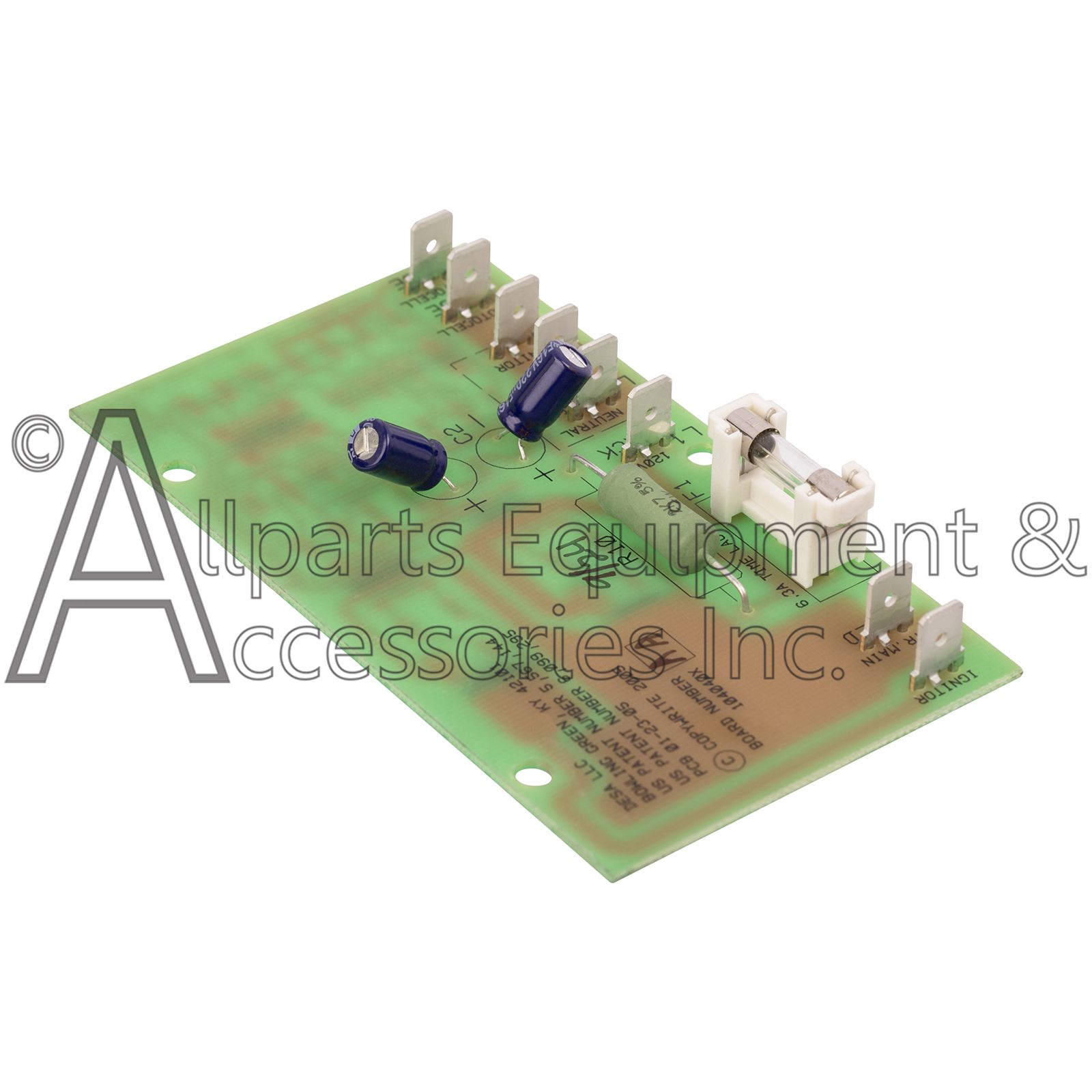

104068-02 Printed Circuit Board for Desa Heaters
In stock
Part Number
104068-02
$59.85
104068-02 Printed Circuit Board for HSI Ignition Control is the latest part number for the OEM 104040X, 104040W, 104040-01, 102350 and 104040-02 printed circuit board for many of the portable kerosene construction, contractor and consumers heaters that were made by Desa International.
The 104068-02 Printed Circuit Boards were used in Low Pressure Portable Kerosene, Diesel and JP8 fuel burning heaters made under the private label names of Reddy Heater, Master Heater, Remington Heaters, All-Pro heaters, Universal heaters, Dayton Heaters, Sears Craftsman Heaters and other privately labeled heaters
The 104068-02 Printed Circuit Board it what triggers the 120 AC voltage to ignite the PP200 / HA1000 Ignitor, then the board continues to provide AC current to the heater motor by sensing the resistance from the Photocell.
This replacement printed circuit board replaces all 104040 series printed circuit boards under the following Patent Number:
US Patent Number 5,567,144
US Patent Number 6,099,295
PCB 01-23-05
Board Number 101040X
All of these printed circuit boards have been replaced by the 104068-02 Printed Circuit Board.
To Check Ignition Control Assembly
Remove fuse cover and check fuse (70,000 to 200,000 Btu models only).
If fuse is blown replace it with a GMA-6.5A fuse part number 113752-01.
Disconnect motor red and white wires from control.
With Ignitor wires disconnected, attach voltmeter leads to the ignitor terminals (labeled IGNITOR).
Use the 0 to 200 V.A.C. scale.
Plug power cord into a grounded 120V/60 Hz outlet. Meter should read 120V(rms) for approximately 10 seconds. If voltage reads 0 or stays at 120 for more than 10 seconds, the control is defective and should be replaced.
WARNING:
DO NOT LET ANY PORTION OF YOUR BODY TOUCH ELECTRODES OR PLUG, DUE TO HIGH VOLTAGE.
Reddy Heater Portable Low Pressure Kerosene Heater Model:
R35D
R35E
R40
R40T
R50BT
R55A
R55B
R55BT
R60
R60A
RM60
R70DT
R70ET
R70D
RH100VT
R110C
R110B
R110BT
R115
R115C
R115DT
R115T
RM115
RH125T
RH125AT
RHD125T
RL125T
RE125T
R155B
R155C
R155D
RM155
R165AT
R165CT
R165DT
RH170T
RH170AT
RHD170T
RE170T
RL170
R200A
R200BT
RM200AT
RE200T
RHD200T
Master Heater Portable Low Pressure Kerosene, Diesel and JP8 Heater Model:
B50H
B50J
B55
B55CT
B60
B70D
B70DT
B70ET
B110B
B110BT
B115
B115DT
M125T
M125AT
B150J
B150JT
B155T
B155CT
B155DT
B165A
B165CT
B165DT
M170T
M170AT
M200T
M200AT
B165AT
B200AT
B200BT
Universial Portable Low Pressure Kerosene, Diesel and JP8 Heater Model:
UK55
UK70T
UK115T
UK165T
ALL-PRO Portable Low Pressure Kerosene, Diesel and JP8 Heater Model:
PK55
PK60
PK70T
PK110
PK115T
PK165T
Remington Portable Low Pressure Kerosene, Diesel and JP8 Heater Model:
REM35B
REM35C
REM40
REM50C
REM55A
REM55B
REM60
REM110B
REM110BT
REM115
REM115T
REM150E
REM155B
REM200AT
