7106691 OUTLET VALVE KIT NEW STYLE FOR AAA PUMPS

More Views

$35.63

7106691 OUTLET VALVE KIT NEW STYLE FOR AAA PUMPS

Part Number: 7106691

In stock

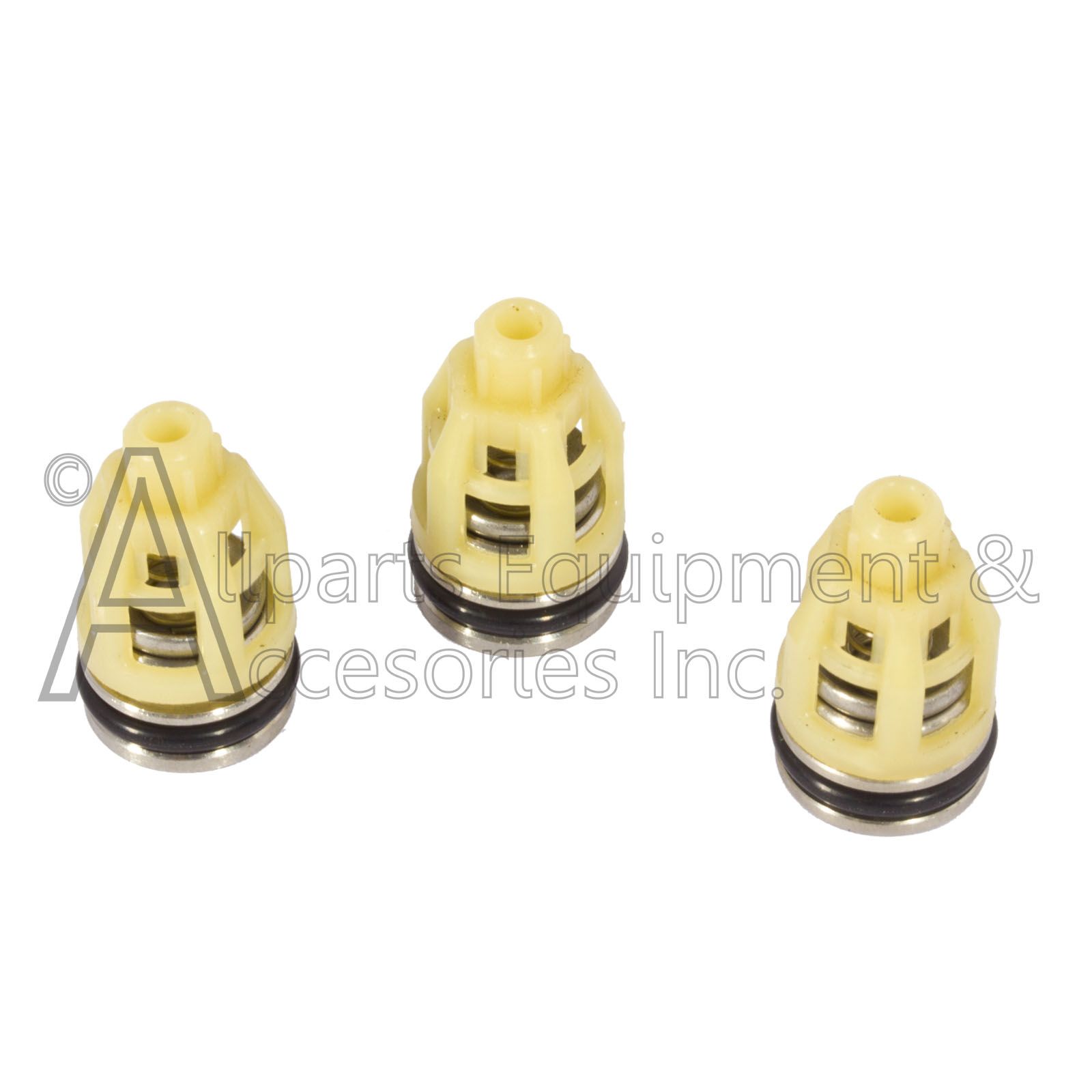

The 7106691 New Style Outlet Valve Kit is a set of 3 high pressure outlet valve used in the AAA Pumps from FNA Group.

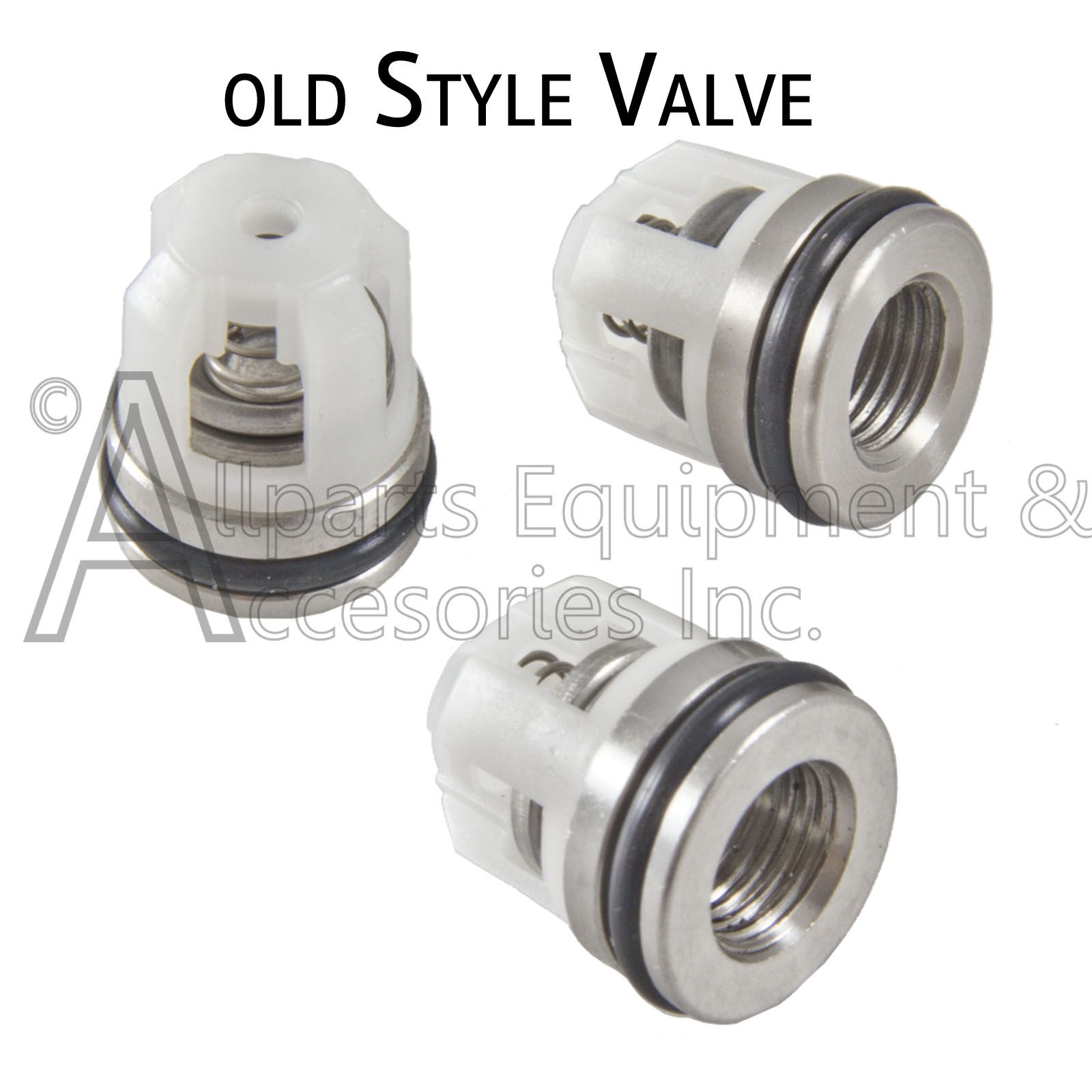

This New Style Outlet Valve Kit is the replacement for the older shorter style valves.

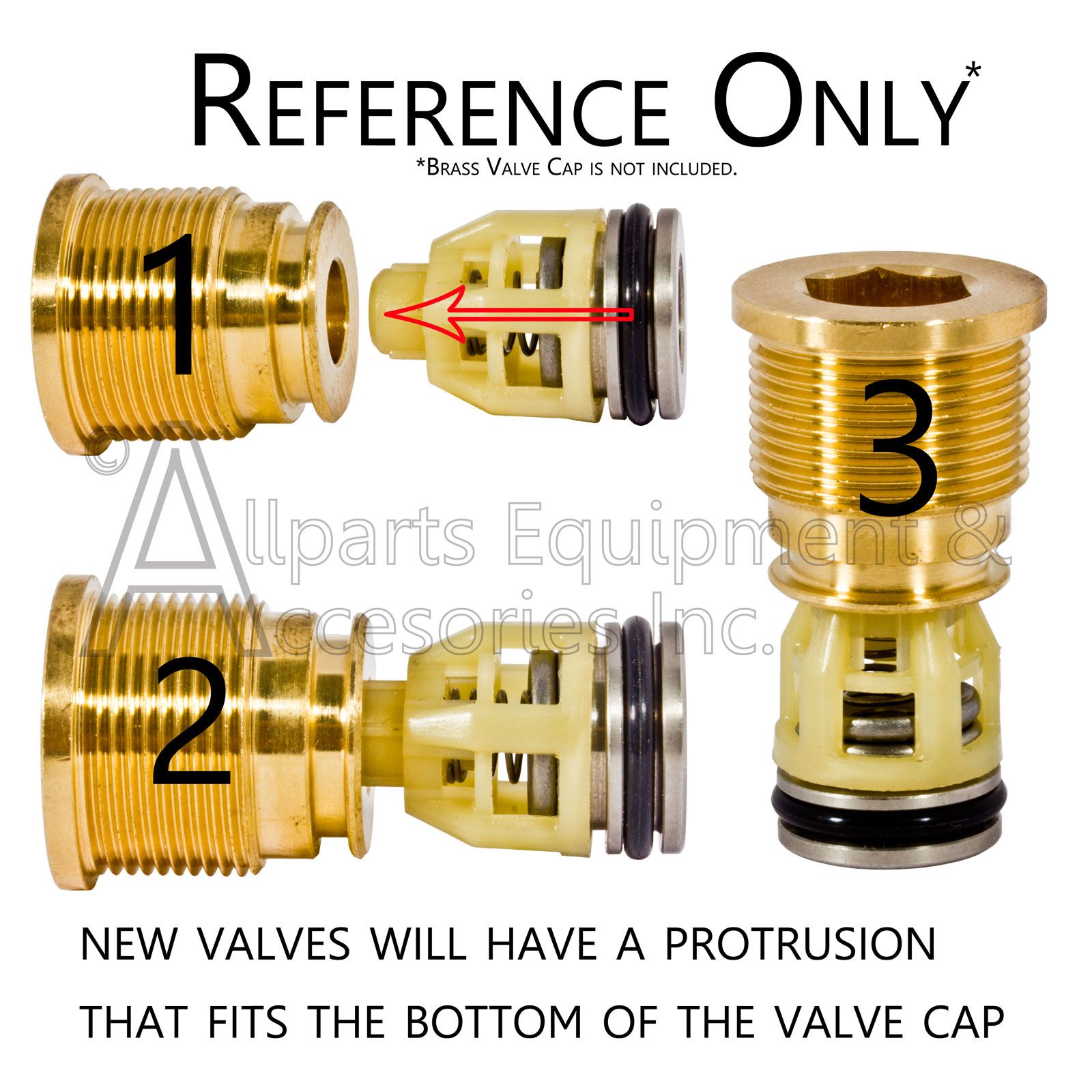

These new valve have a centering stud that need to be aligned into the hole in the brass valve caps.

This 7106691 Kit consist of the following parts to repair all 3 of the high pressure outlet valve for the 553003, 530004, 10.0GA13, 90032 and 9.4GA13 triplex series AAA pressure washer pumps:

3 Valve Cages
3 Valve Springs
3 Valve Disc
3 Valve O-Rings
3 Valve Seats

The 7106691 Outlet valve kit was used by FNA Group on many of the privately labeled pressure washers they produced under names such as Delco, Simpson, DeWalt, Taskmaster and others.

Description

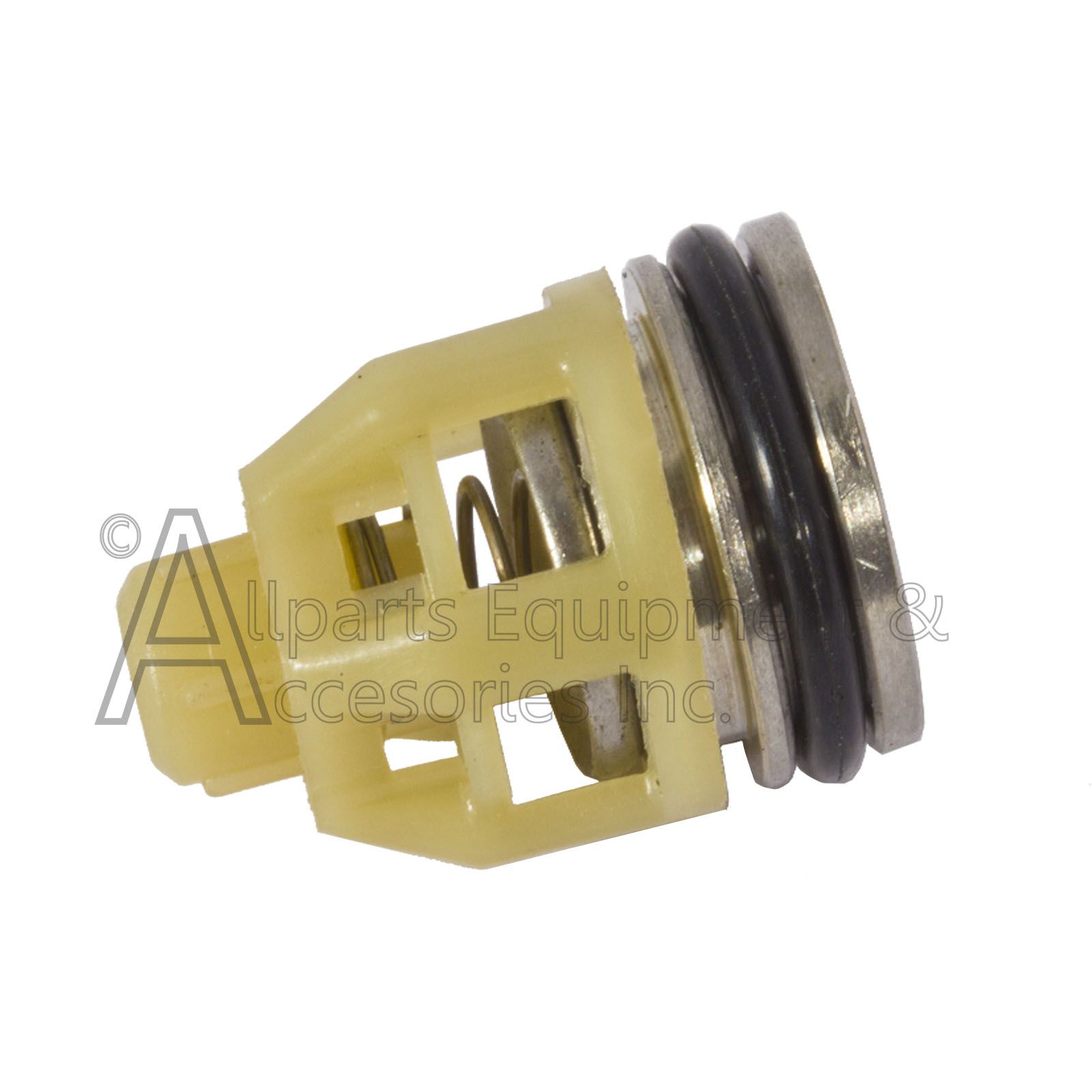

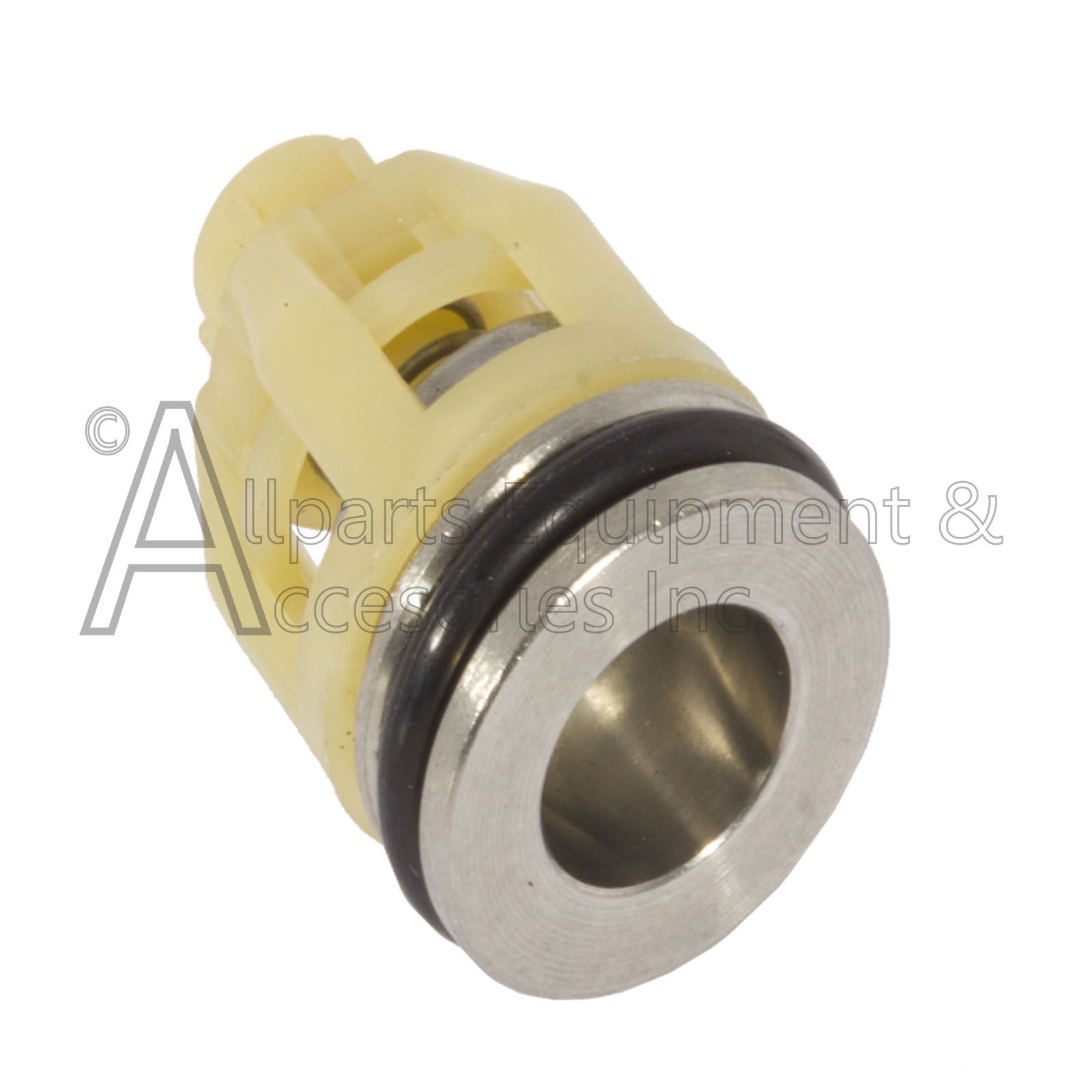

The 7106691 Outlet Valves have the following measurements:

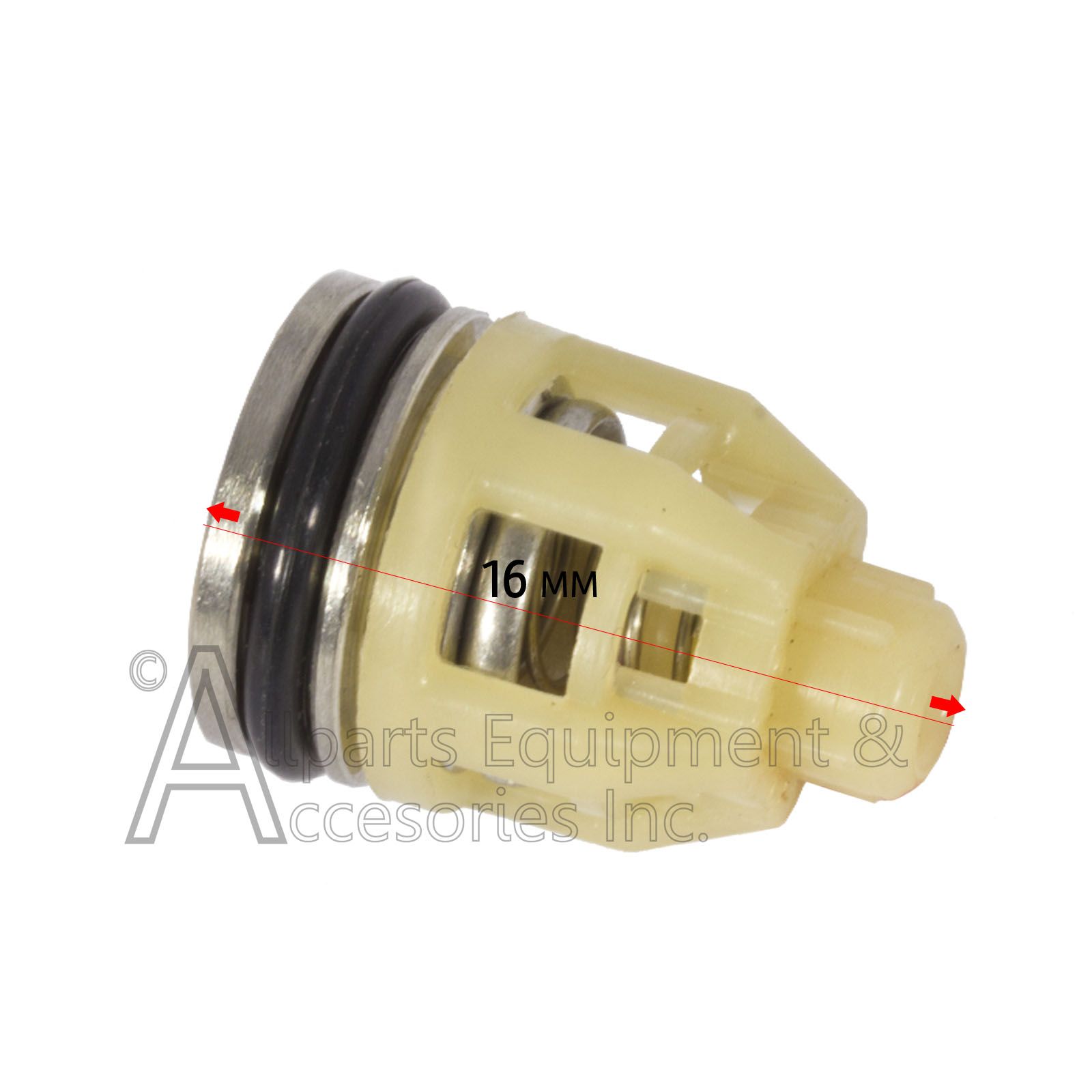

16.45 mm long from metal face to end of plastic valve.
14.60 mm side to side at the metal disc face.
Service Information
The 7106691 Valve kit is the set of 3 outlet valves for the triplex series pump.

These are the valve on the front of the pump and are different from the Inlet Valves on the top of the pump.
