24-1030 NG T-STAT VALVE-MOST FMK 0630545

More Views

24-1030 NG T-STAT VALVE-MOST FMK 0630545

Part Number: 24-1030

This item has been replaced with a new part. Please choose the Order Replacement Part option listed below to order the replacement part. #0630545

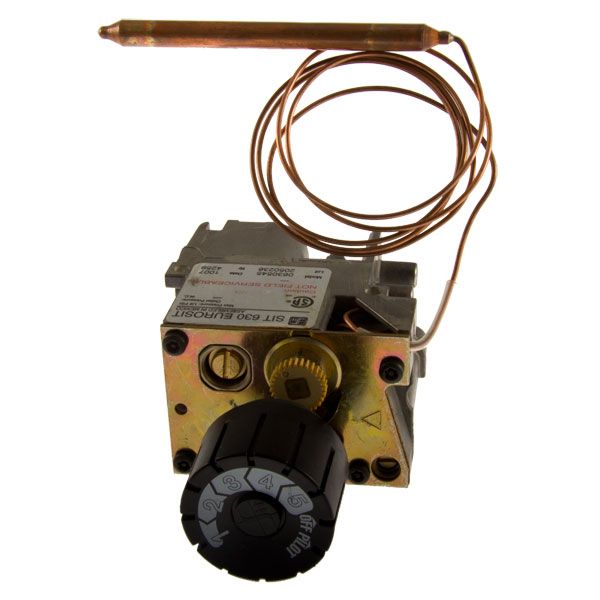

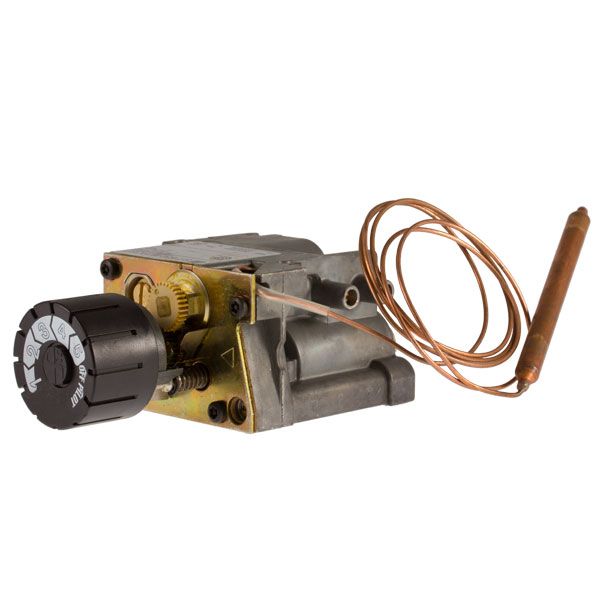

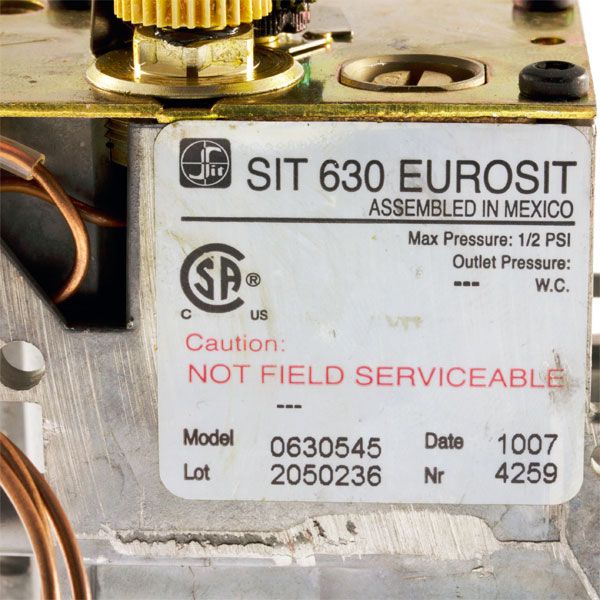

The 24-1030 Gas Control Valve is a SIT 630 EUROSIT Model 0630545 gas control valve that was used by World Marketing for several different hearth products including Vent-Free Gas Fireplace Systems, Gas Logs, Vent-Free Wall Heaters, Venteless Compact Fireplaces, Free Standing Gas Pedestal Stove Fireplace and other vent-free hearth related products.

The 24-1030 Gas Control valve by is a multi-function valve that will provide long life for your appliance using either Liquid Propane Gas LPG or Natural Gas NG.

This 24-1030 Gas Control Valve is a SIT 630 EUROSIT Model 0630545 was used on many of the Kozy World privately labeled vent free fireplace systems including units by Windsor, Newport, Bainbridge, Buckingham, Brentwood, Bradford, Williamsburg, Sienna, and others.

The 24-1030 / 0630545 Gas Control Valve is a multi-functional single control knob combination gas control with combined modulating snap action thermostat and safety interlock system.

The gas control valve is particularly for use with most gas hearth related heating applications as well as many other vent-free appliance applications.

The does not require electrical supply and is suitable for operations in ambient temperatures up to 120 degrees Celsius.
The gas valve is available in a wide range of configurations. It is particularly suitable for use in vent free gas wall heaters, vent-free gas fireplaces, gas log sets and many hearth appliances that require accurate temperature control without an external power supply.

The gas control valve is configured for both LPG and NG applications
The SIT 630 Eurosit Valve has the following features:

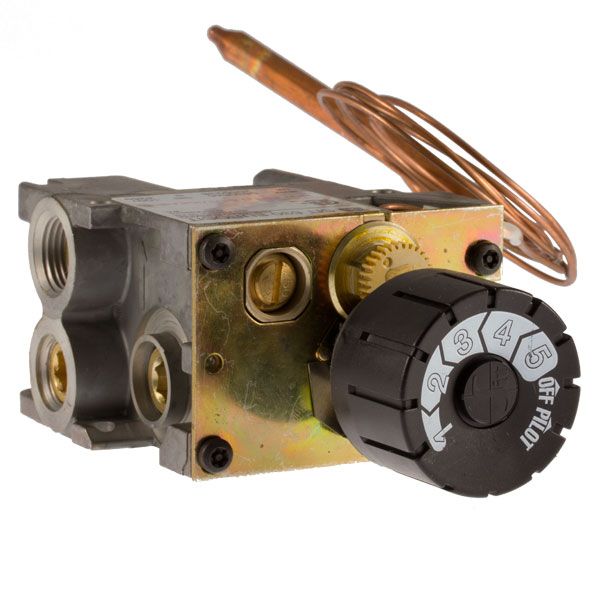

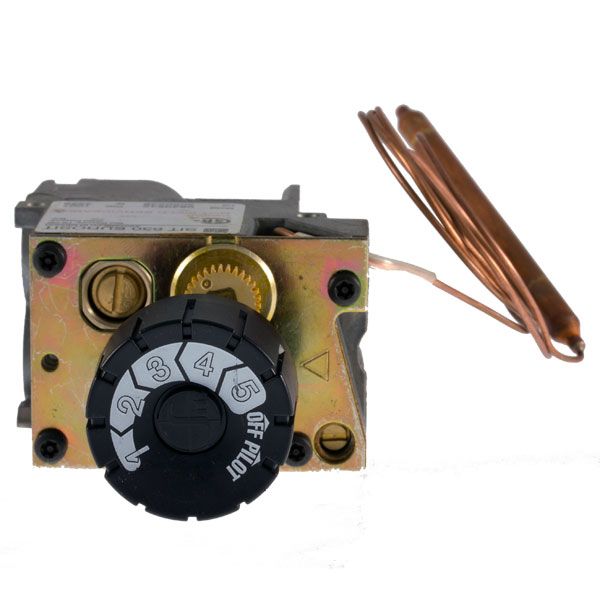

Control knob with positions for off, pilot and temperature selections
Thermo-electric flame supervision device with optional interlock
Pressure regulator or alternatively flow adjuster
Modulating and on-off thermostat
Pilot outlet with pre-setting device of the gas flow
Inlet and Pilot Filters
Inlet and Outlet pressure test points

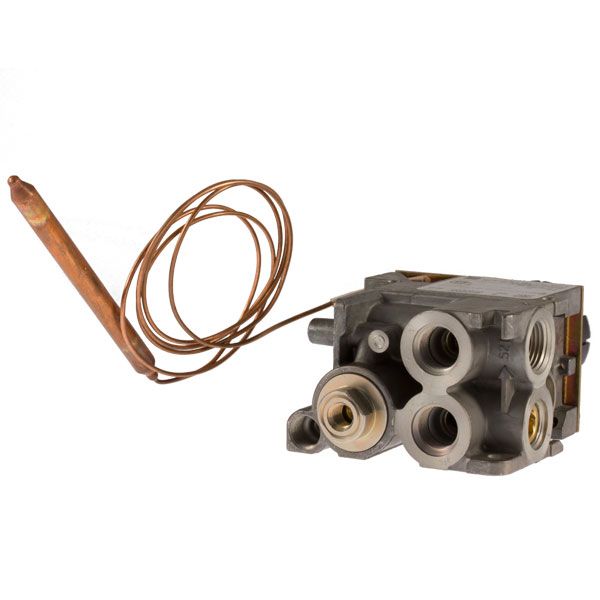

Side or bottom main gas inlet and outlet
Main gas connections with threaded 3/8 NPT pipe or suitable for nut or compression fitting

Description
The 24-1030 GAS CONTROL VALVE was used on several different type of natural gas NG and propane gas LPG fireplaces,gas log sets, wall heaters and stoves including direct vent fireplaces, vent free gas log sets and free standing vent free gas stoves.

World Marketing of America Kozy Worlds Models:
FMK1001
FMK1003
FMK2501
FMK2503
FMK2805
FMK2807
FMK2809
FMK4023
FMK4025
FMK4027
GFN2505
GFN2913
GFDC2829
GFNC3025
GFN4113
GFN4311
GLN2433
GSN2221
GSN2501
GSN2821
GSN3011
GSN4011
Cross Reference
The 24-1030 Gas Control Valve can be used to replace the SIT544.130 Gas Control Valve.
