00251 KIT,REPLACEMENT, NDSP-5,CONTROLL,MOD

In stock
Part Number
00251
$130.00
Part Number: 00251
Brand: Mr Heater and HeatStar heating products
Shipping Weight: 1 Lbs

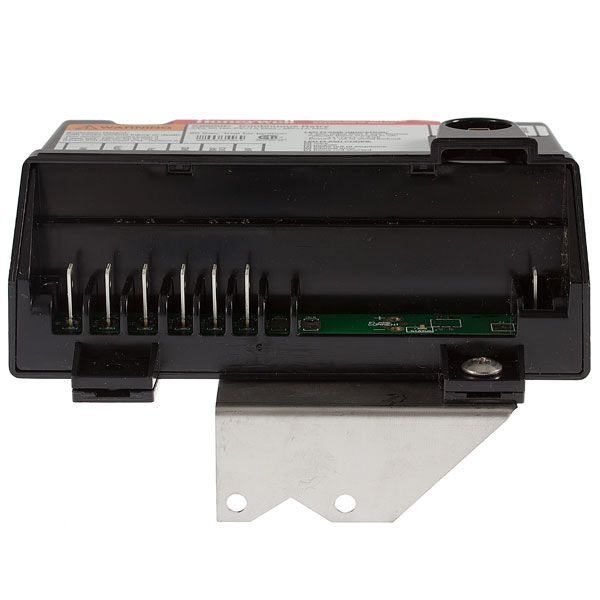

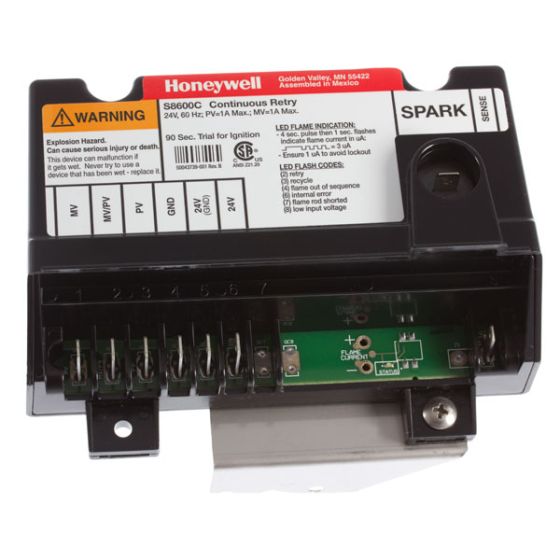

00251 Control Board replacement kit is used on the heating unit made by Enerco and sold under the Mr Heater and HeatStar labels.

The 00251 Control Board is also the current replacement part for the 00028 Control Board.
Features:

Provide up to 1.0 A pilot and 1.0 main valve current rating.
Use a separate igniter and sensor (Q179C with igniter and sensor mounted on one bracket, or Q354 sensor with Q345, Q346, Q348, Q362 or Q381 igniter-sensor recommended.
Can be used on natural on LP gas; they provide 100 percent shutoff on ignition failure.
Lock out on shutoff.
Manual reset is required.

Product Specifications:

Dimensions (in.)
3 15/16 in. high x 5 7/16 in. wide x 2 5/8 in. deep
Dimensions (mm)
100 mm high x 138 mm wide x 67 mm deep Electrical Ratings
24 Vac, Frequency, 60 Hz
Approvals, Canadian Standards Association Design Certified Flame Failure Response Time (sec) 2 seconds maximum
PrePurge, None
Ambient Temperature Range (F), -40 F to +175 F
Ambient Temperature Range (C) -40 C to +79 C
Ignition System Type, Intermittent Pilot
Ignition Sequence Continuous Retry
Typical Gas Control VR8204, VR8304
Type of Gas Natural or LP
Flame Sense Two Rod
Ignition Source Internal high voltage spark generator
Ignition Trials To Lockout continuous retry
Lockout Timing continuous retry
Ignition Trial Time (sec) 90 sec
Maximum Valve Load @ 24 Vac (Amps) 1A Pilot, 1A Main @ 24Vac
Typical Ignition Hardware Q3452
Between Trial Time (sec) 5 minute delay after failed trial for ignition.
