SRMW2.2G26-EZ HIGH PRESSURE 3 leg, axial cam pump

In stock

Part Number

SRMW2.2G26-EZ

$117.80

SRMW2.2G26-EZ AR (Annovi Reverberi) pumps are an economy oil filled axial cam pump used on various brands of pressure washer including Briggs & Stratton, Generac, Troy-bilt, and various others.

The SRMW2.2G26-EZ plunger pump is rated at 2.2 GPM at 2600 PSI when operated at 3400 rpm. Direct drive system provides connection to most vertical 7/8" shaft engine with at least 5HP.

The hollow shafted pump includes a three leg vertical gas engine flange, a built-in pressure control valve and chemical injection system. The SRMW2.2G26-EZ comes standard with a 22mm-14 twist connect outlet tube, and EZ start valves.

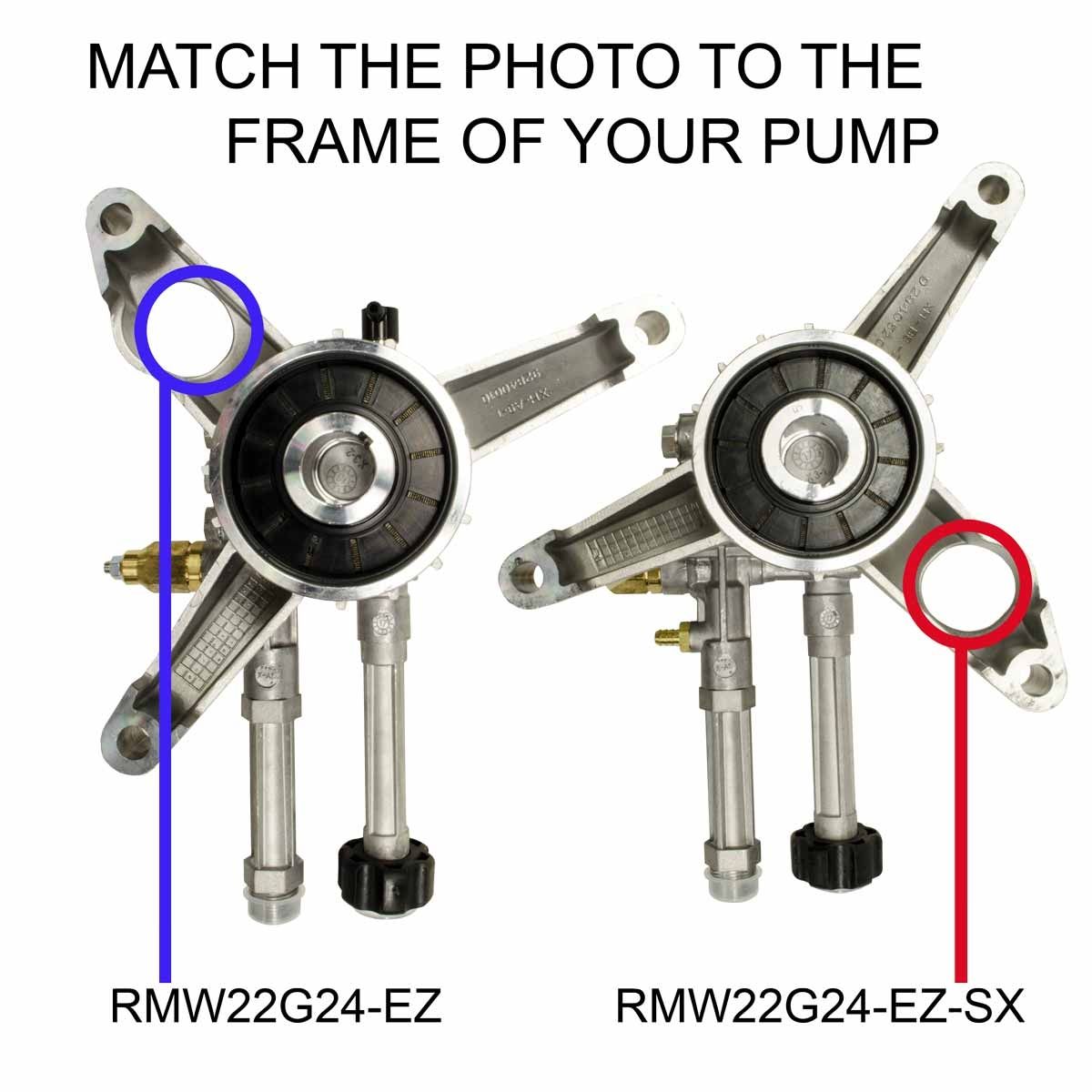

Note: If the Inlet and Outlet Tubes on your current pump face the opposite direction as the spark plug of the engine on the pressure washer you will need to order the SRMW2.2G26-EZSX

Need Help? Call us:

1-269-685-4123

Related Items

Details

The SRMW2.2G26-EZ AR (Annovi Reverberi) pump is an oil filled economy axial radial pump used in various pressure washers.

The SRMW2.2G26-EZ plunger pump is rated at up to 2.2 GPM at 2600 PSI. Direct drive system provides connection to most 7/8" shaft 4.3 HP and above engines and spins at 3400 RPM.

The hollow shafted pump includes vertical gas engine flange, a built-in pressure control valve and chemical injection system. Comes with a standard 22mm-14 twist connect outlet, and EZ start valves.

Max GPM = 2.2
Max L/Min = 8.3
Max PSI = 2600
Max Bar = 173
Power EBHP = 4.3
Bore DIA MM = 12
Stroke MM = 9.7
Crankshaft ID Stamp = 1
Weight LBS. = 7.7
