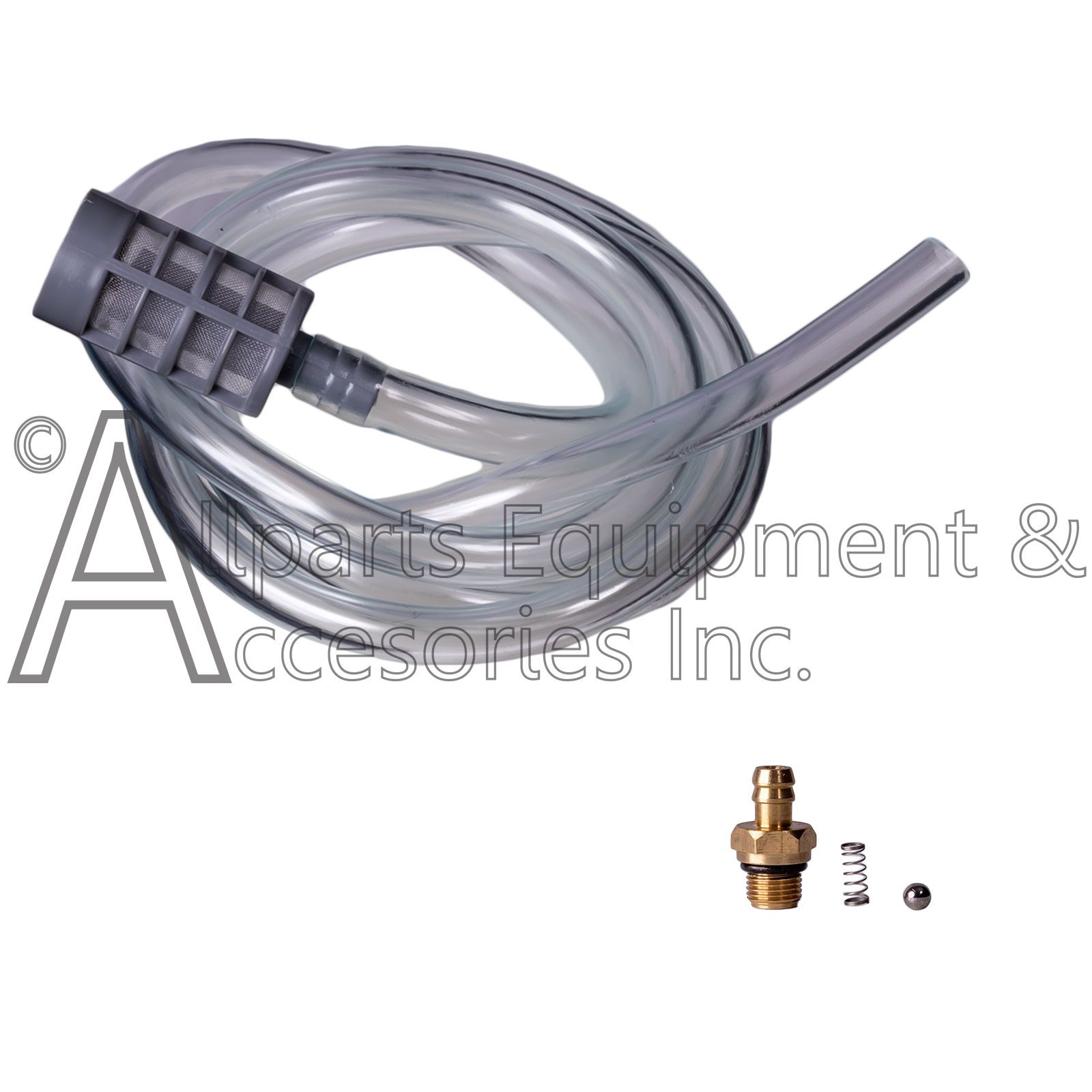

0064016 DETERGENT SUCTION KIT

006416 Coleman Powermate Detergent Suction for Coleman Powermate pressure washers.

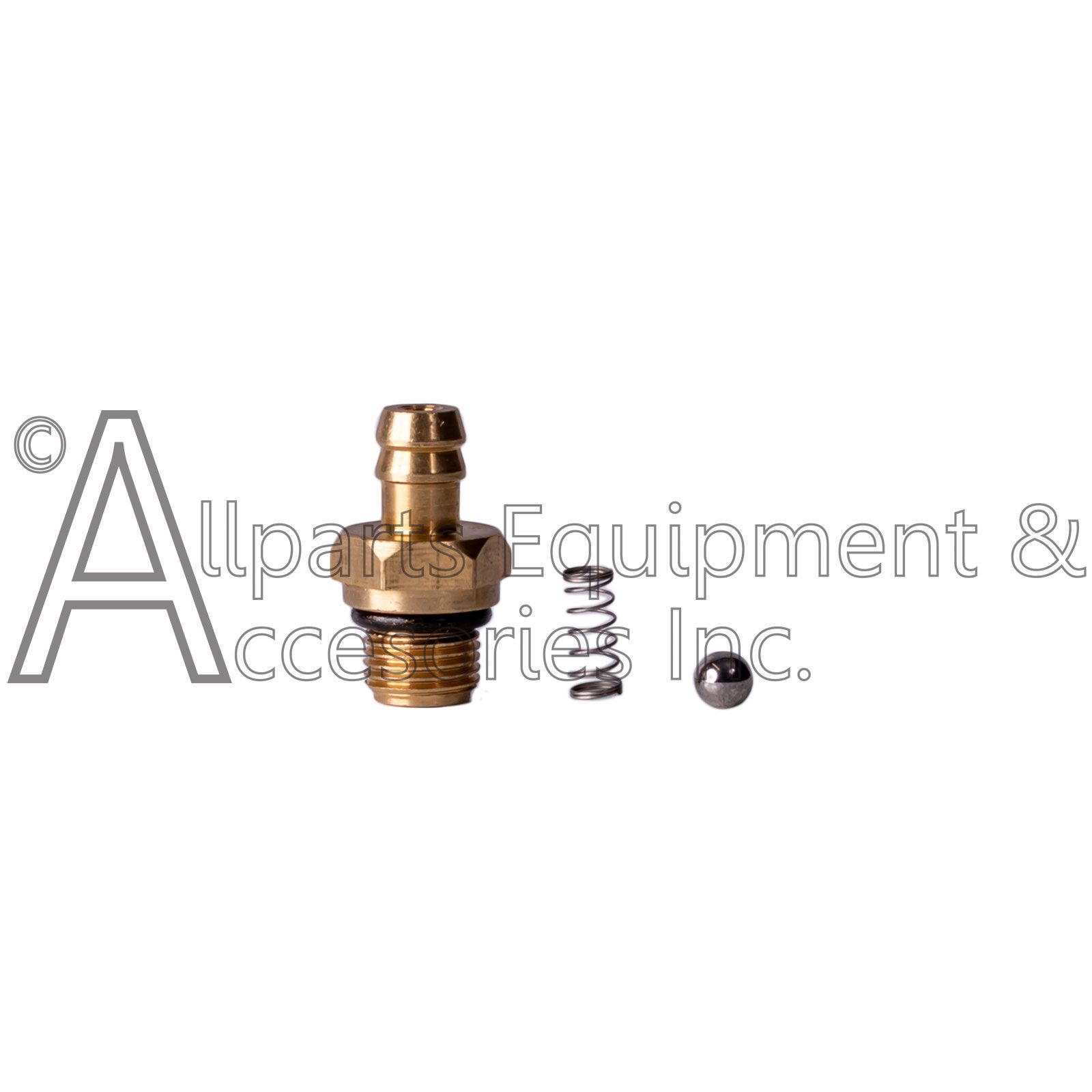

The new kit will require the installation on the smallest O-ring inside the brass fitting.
There is a small grove up inside of the fitting that the O-ring will expand into.

The large O-Ring goes on the outside of the brass fitting.
The Steel Ball sits against the O-ring and the spring goes on the bottom of the spring in between the ball and the pump housing.

The steel ball needs to have the spring tension pushing up against the ball to keep water from leaking out.
