Be the first to review this product

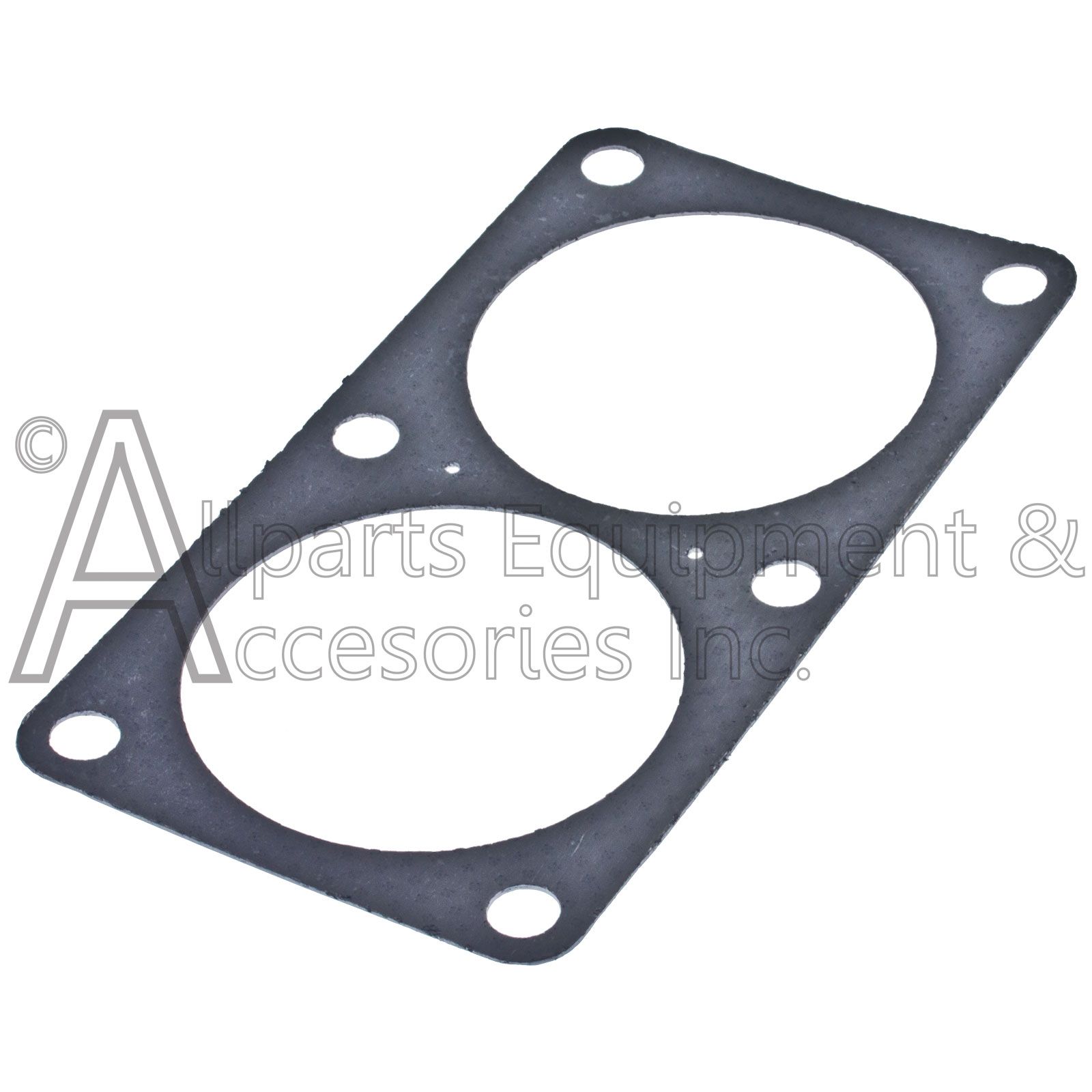

A20868 cylinder gasket to valve plate
A20868 cylinder gasket to valve plate A20868 cylinder gasket valve plate for DeVilbiss air compressors

A20868 CYLINDER GASKET TO VALVE PLATE DEVILBISS MADE IS USA

In stock
Part Number
A20868
$7.90
Part Number: A20868
Brand: Porter Cable Tools and Equipment
Shipping Weight: 0.25 Lbs

A20868 and the A20868SV Cylinder Gasket is the gasket between the air compressor cylinder and the valve plate for various air compressors by manufactured by DeVilbiss and Porter Cable.

Our Allparts Equipment and Accessories replacement A20868 Cylinder gasket is made from the new reinforced Graphoil graphite gasket material bonded to a metal wire reinforced mesh foil.


The A20868 is the most current part number for the cylinder gasket and will replace the CAC-54-1, CAC-1265-1, CAC-1265-2 and Z-CAC-1265-2.

This A20868 was also the cylinder gasket used in the KK-4312-2 Gasket Kit as well as the K-0159 gasket Kit.

Torque the head bolts  in a standard staggered pattern 25, 30, 32.5 foot pounds Max as a final setting.

Run the air compressor for 10 minutes without pressure building in the tank.

Let the pump cool to ambient temperature and check torque one last time at 32.5 foot pounds.

Need Help? Call us:

1-269-685-4123

Related Items

The A20868 Cylinder Gasket fits the following model numbers:
66-750 Type 0
66-750 Type 0
66-750 Type 0
66-750 Type 0
919-15725 Type 1
919-15726 Type 0
919-18416 Type 1
919-18419 Type 0
919-18419 Type 1
919-18419 Type 2
919-18543 Type 1
919-18695 Type 1
919-19540 Type 0
919-19541 Type 0
919-19541 Type 1
919-19541 Type 2
919-19541 Type 3
919-72728 Type 0
919-72728 Type 2
919-72800 Type 0
919-72800 Type 1
ACBL320 Type 0
ACBL320 Type 0
ACBL320 Type 0
ACBL320 Type 0
ACBL320 Type 2
ACBL320 Type 2
ACBL320 Type 2
ACBL320 Type 2
ACBL320 Type 3
ACBL320 Type 3
ACBL320 Type 3
ACBL320 Type 3
ACBL320 Type 4
ACBL320 Type 4
ACBL320 Type 4
ACBL320 Type 4
ACBL520 Type 0
ACBL520 Type 0
ACBL520 Type 0
ACBL520 Type 0
ACBL520 Type 1
ACBL520 Type 1
ACBL520 Type 1
ACBL520 Type 1
ACBL530VP Type 2
ACBL530VP Type 2
ACBL530VP Type 2
ACBL530VP Type 3
ACBL530VP Type 3
ACBL530VP Type 3
ACBL530VP Type 3
ACBL530VP Type 4
ACBL530VP Type 4
ACBL530VP Type 4
ACBL530VP Type 4
ACBL5G20 Type 0
ACBL5G20 Type 0
ACBL5G20 Type 0
ACBL5G20 Type 0
ACBL5G20 Type 2
ACBL5G20 Type 2
ACBL5G20 Type 2
ACBL5G20 Type 2
ACBL5G20 Type 3
ACBL5G20 Type 3
ACBL5G20 Type 3
ACBL5G20 Type 3
ACBL5G20HP Type 0
ACBL5G20HP Type 0
ACBL5G20HP Type 0
ACBL5G20HP Type 0
ACBL660V Type 0
ACBL660V Type 0
ACBL660V Type 0
ACBL660V Type 0
ACBL660V Type 0
ACBL660V Type 0
ACBL660V Type 0
ACBL660V Type 0
ACBL660V Type 1
ACBL660V Type 1
ACBL660V Type 1
ACBL660V Type 1
ACBL760V Type 0
ACSL530RVP Type 3
ACSL530RVP Type 3
ACSL530RVP Type 3
AFL2512 Type 0
AFL2512 Type 0
AFL2512 Type 0
AFL2512 Type 0
AFL2512 Type 1
AFL2512 Type 1
AFL2512 Type 1
AFL2512 Type 1
AFL2520 Type 0
AFL2520 Type 0
AFL2520 Type 0
AFL2520 Type 0
AFL2520 Type 1
AFL2520 Type 1
AFL2520 Type 1
AFL2520 Type 1
AFL320 Type 0
AFL320 Type 0
AFL320 Type 0
AFL320 Type 0
AFL320 Type 1
AFL320 Type 1
AFL320 Type 1
AFL320 Type 1
AFL520 Type 0
AFL520 Type 0
AFL520 Type 0
AFL520 Type 0
AFL520 Type 1
AFL520 Type 1
AFL520 Type 1
AFL520 Type 1
AFL560V Type 1
AFL560V Type 1
AFL560V Type 1
AFL560V Type 1
AFL560V Type 1
AFL560V Type 1
AFL560V Type 1
AFL560V Type 1
AFL560V Type 2
AFL560V Type 2
AFL560V Type 2
AFL560V Type 2
AFL560V Type 2
AFL560V Type 2
AFL560V Type 2
AFL560V Type 2
AFL560V Type 3
AFL560V Type 3
AFL560V Type 3
AFL560V Type 3
AFL560V Type 3
AFL560V Type 3
AFL560V Type 3
AFL560V Type 3
AFL5G20 Type 0
AFL5G20 Type 0
AFL5G20 Type 0
AFL5G20 Type 0
AFL660V Type 0
AFL660V Type 0
AFL660V Type 0
AFL660V Type 0
AFL660V Type 0
AFL660V Type 0
AFL660V Type 0
AFL660V Type 0
AFL660V Type 1
AFL660V Type 1
AFL660V Type 1
AFL660V Type 1
ATCL4520 Type 0
ATCL4520 Type 0
ATCL4520 Type 0
ATCL4520 Type 2
ATCL4520 Type 2
ATCL4520 Type 2
ATCL4520 Type 2
BACL4520 Type 0
BACL4520 Type 0
BACL4520 Type 0
BACL4520 Type 2
BACL4520 Type 2
BACL4520 Type 2
BACL4520 Type 2
C5510 Type 0
C7501M Type 0
CPL55GH8W Type 0
CPL6025 Type 1
CPLC7060V Type 0
CPLC7060V Type 1
CPLC7060V Type 2
EXL5020 Type 0
EXL5020 Type 0
EXL5020 Type 0
EXL5020 Type 0
EXL6560V Type 0
EXL6560V Type 0
EXL6560V Type 0
EXL6560V Type 0
EXLC5G20 Type 0
EXLC7060V Type 0
HL6560V Type 0
HL6560V Type 0
HL6560V Type 0
HL6560V Type 0
HL6560V Type 1
HL7060V Type 0
IMCL4520 Type 0
IMCL4520 Type 0
IMCL4520 Type 0
IMCL4520 Type 2
IMCL4520 Type 2
IMCL4520 Type 2
IMCL4520 Type 2
IR25E20AD Type 0
IR25E20AD Type 0
IR25E20AD Type 0
IR25E20AD Type 0
IR35E20AD Type 1
IR35E20AD Type 1
IR35E20AD Type 1
IR35E20AD Type 1
IR35E20AD Type 2
IR35E20AD Type 2
IR35E20AD Type 2
IR35E20AD Type 2
IR4E20AD Type 0
IR4E20AD Type 0
IR4E20AD Type 0
IR4E20AD Type 0
IR5E20AD Type 0
IR5E20AD Type 0
IR5E20AD Type 1
IR5E20AD Type 1
IR5E20AD Type 1
IR5E20AD Type 1
IR5E20AD Type 2
IR5E20AD Type 2
IR5E20AD Type 2
IR5E20AD Type 2
IR5E30AD Type 0
IR5E30AD Type 0
IR5E30AD Type 0
IR5E30AD Type 0
IR5E30AD Type 1
IR5E30AD Type 1
IR5E30AD Type 1
IR5E30AD Type 1
IR5E30AD Type 2
IR5E30AD Type 2
IR5E30AD Type 2
IR5E30AD Type 2
IR5E60VAD Type 0
IR5E60VAD Type 0
IR5E60VAD Type 0
IR5E60VAD Type 0
IR5E60VAD Type 0
IR5E60VAD Type 0
IR5E60VAD Type 0
IR5E60VAD Type 1
IR5E60VAD Type 1
IR5E60VAD Type 1
IR5E60VAD Type 1
IR5E60VAD Type 1
IR5E60VAD Type 1
IR5G20AD Type 0
IR5G20AD Type 0
IR5G20AD Type 0
IR5G20AD Type 0
IR6E60VAD Type 0
IR6E60VAD Type 0
IR6E60VAD Type 0
IR6E60VAD Type 0
IR6E60VAD Type 0
IR6E60VAD Type 0
IR6E60VAD Type 0
IRC4E20AD Type 0
IRC4E20AD Type 0
IRC4E20AD Type 0
IRC4E20AD Type 0
IRC4E20AD Type 1
IRC4E20AD Type 1
IRC4E20AD Type 1
IRC4E20AD Type 1
IRC5E20AD Type 0
IRC5E20AD Type 0
IRC5E20AD Type 1
IRC5E20AD Type 1
IRC5E20AD Type 1
IRC5E20AD Type 1
IRC5E60VAD Type 0
IRC5E60VAD Type 0
IRC5E60VAD Type 0
IRC5E60VAD Type 0
IRC5E60VAD Type 0
IRC5E60VAD Type 0
IRC5E60VAD Type 0
IRC5E60VAD Type 1
IRC5E60VAD Type 1
IRC5E60VAD Type 1
IRC5E60VAD Type 1
IRC5E60VAD Type 1
IRC5E60VAD Type 1
IRC6E60VAD Type 0
IRC6E60VAD Type 0
IRC6E60VAD Type 0
IRC6E60VAD Type 0
IRC6E60VAD Type 0
IRC6E60VAD Type 0
IRC6E60VAD Type 0
IRL5020 Type 0
IRL5020 Type 0
IRL5020 Type 0
IRL5020 Type 0
IRL5G20 Type 0
IRL5G20 Type 0
IRL5G20 Type 0
IRL5G20 Type 0
IRL5G20 Type 2
IRL5G20 Type 2
IRL5G20 Type 2
IRL5G20 Type 2
IRL5G20 Type 3
IRL5G20 Type 3
IRL5G20 Type 3
IRL5G20 Type 3
IRL6520 Type 0
IRL6520 Type 0
IRL6520 Type 0
IRL6520 Type 0
IRL6530 Type 0
IRL6530 Type 0
IRL6530 Type 0
IRL6530 Type 0
IRL6530 Type 1
IRL6530 Type 1
IRL6530 Type 1
IRL6530 Type 1
IRL6560V Type 0
IRL6560V Type 0
IRL6560V Type 0
IRL6560V Type 0
IRLC5020 Type 0
IRLC5020 Type 0
IRLC5020 Type 0
IRLC5020 Type 0
IRLC6520 Type 0
IRLC6520 Type 0
IRLC6520 Type 0
IRLC6520 Type 0
IRLC6560V Type 0
IRLC6560V Type 0
IRLC6560V Type 0
IRLC6560V Type 0
IRLC6560V Type 1
IRLC6560V Type 1
IRLC6560V Type 1
IRLC6560V Type 1
L2512 Type 0
L2512 Type 0
L2512 Type 0
L2512 Type 0
L2512 Type 1
L2512 Type 1
L2512 Type 1
L2512 Type 1
L2520 Type 0
L2520 Type 0
L2520 Type 0
L2520 Type 0
L2520 Type 1
L2520 Type 1
L2520 Type 1
L2520 Type 1
L320 Type 0
L320 Type 0
L320 Type 0
L320 Type 0
L320 Type 1
L320 Type 1
L320 Type 1
L320 Type 1
L320 Type 2
L320 Type 2
L320 Type 2
L320 Type 2
L320 Type 3
L320 Type 3
L320 Type 3
L320 Type 3
L320 Type 4
L320 Type 4
L320 Type 4
L320 Type 4
L420 Type 0
L420 Type 0
L420 Type 0
L420 Type 0
L5020 Type 0
L5020 Type 0
L5020 Type 0
L5020 Type 0
L520 Type 0
L520 Type 0
L520 Type 0
L520 Type 0
L520 Type 1
L520 Type 1
L520 Type 1
L520 Type 1
L520 Type 2
L520 Type 2
L520 Type 2
L520 Type 2
L530 Type 0
L530 Type 0
L530 Type 0
L530 Type 0
L530 Type 1
L530 Type 1
L530 Type 1
L530 Type 1
L560V Type 0
L560V Type 0
L560V Type 0
L560V Type 1
L560V Type 1
L560V Type 1
L560V Type 1
L560V Type 1
L560V Type 1
L560V Type 1
L560V Type 1
L560V Type 2
L560V Type 2
L560V Type 2
L560V Type 2
L560V Type 2
L560V Type 2
L560V Type 2
L560V Type 2
L560V Type 3
L560V Type 3
L560V Type 3
L560V Type 3
L560V Type 3
L560V Type 3
L560V Type 3
L560V Type 3
L5G20 Type 0
L5G20 Type 0
L5G20 Type 0
L5G20 Type 0
L5G20 Type 2
L5G20 Type 2
L5G20 Type 2
L5G20 Type 2
L5G20 Type 3
L5G20 Type 3
L5G20 Type 3
L5G20 Type 3
L6520 Type 0
L6520 Type 0
L6520 Type 0
L6520 Type 0
L6530 Type 0
L6530 Type 0
L6530 Type 0
L6530 Type 0
L6530 Type 1
L6530 Type 1
L6530 Type 1
L6530 Type 1
L6560V Type 0
L6560V Type 0
L6560V Type 0
L6560V Type 0
L660V Type 0
L660V Type 0
L660V Type 0
L660V Type 0
L660V Type 0
L660V Type 0
L660V Type 0
L660V Type 0
L660V Type 1
L660V Type 1
L660V Type 1
L660V Type 1
L660V Type 2
L660V Type 2
L660V Type 2
L660V Type 2
L660V Type 3
L660V Type 3
L660V Type 3
L660V Type 3
PALC520 Type 0
PALC520 Type 0
PALC520 Type 0
PALC520 Type 0
PALC520 Type 1
PALC520 Type 1
PALC520 Type 1
PALC520 Type 1
PALC560V Type 1
PALC560V Type 1
PALC560V Type 1
PALC560V Type 1
PALC560V Type 1
PALC560V Type 1
PALC560V Type 1
PALC560V Type 1
PALC6520 Type 0
PALC6520 Type 0
PALC6520 Type 0
PALC6520 Type 0
PALC6560V Type 0
PALC6560V Type 0
PALC6560V Type 0
PALC6560V Type 0
PALC6560V Type 1
PALC6560V Type 1
PALC6560V Type 1
PALC6560V Type 1
PALC7060V Type 0
PALC7060V Type 0
PALC7060V Type 0
PALC7060V Type 0
PRL5020 Type 0
PRL5020 Type 0
PRL5020 Type 0
PRL5020 Type 0
PRLC5020 Type 0
PRLC5020 Type 0
PRLC5020 Type 0
PRLC5020 Type 0
RA4E20AD Type 0
RA4E20AD Type 0
RA4E20AD Type 0
RA4E20AD Type 0
RA5E20AD Type 0
RA5E20AD Type 0
RA5E20AD Type 1
RA5E20AD Type 1
RA5E20AD Type 1
RA5E20AD Type 1
RA5E20AD Type 2
RA5E20AD Type 2
RA5E20AD Type 2
RA5E20AD Type 2
RA5E60VAD Type 0
RA5E60VAD Type 0
RA5E60VAD Type 0
RA5E60VAD Type 0
RA5E60VAD Type 0
RA5E60VAD Type 0
RA5E60VAD Type 0
RA5E60VAD Type 1
RA5E60VAD Type 1
RA5E60VAD Type 1
RA5E60VAD Type 1
RA5E60VAD Type 1
RA5E60VAD Type 1
RA6E60VAD Type 0
RA6E60VAD Type 0
RA6E60VAD Type 0
RA6E60VAD Type 0
RA6E60VAD Type 0
RA6E60VAD Type 0
RA6E60VAD Type 0
RAC5E20AD Type 0
RAC5E20AD Type 0
RAC5E20AD Type 1
RAC5E20AD Type 1
RAC5E20AD Type 1
RAC5E20AD Type 1
RAC5E60VAD Type 0
RAC5E60VAD Type 0
RAC5E60VAD Type 0
RAC5E60VAD Type 0
RAC5E60VAD Type 0
RAC5E60VAD Type 0
RAC5E60VAD Type 0
RAC5E60VAD Type 1
RAC5E60VAD Type 1
RAC5E60VAD Type 1
RAC5E60VAD Type 1
RAC5E60VAD Type 1
RAC5E60VAD Type 1
RAL5020 Type 0
RAL5020 Type 0
RAL5020 Type 0
RAL5020 Type 0
RAL5G20 Type 0
RAL5G20 Type 0
RAL5G20 Type 0
RAL5G20 Type 0
RAL5G20 Type 2
RAL5G20 Type 2
RAL5G20 Type 2
RAL5G20 Type 2
RAL5G20 Type 3
RAL5G20 Type 3
RAL5G20 Type 3
RAL5G20 Type 3
RAL6520 Type 0
RAL6520 Type 0
RAL6520 Type 0
RAL6520 Type 0
RAL6560V Type 0
RAL6560V Type 0
RAL6560V Type 0
RAL6560V Type 0
RALC5020 Type 0
RALC5020 Type 0
RALC5020 Type 0
RALC5020 Type 0
RALC6520 Type 0
RALC6520 Type 0
RALC6520 Type 0
RALC6520 Type 0
RALC6560V Type 0
RALC6560V Type 0
RALC6560V Type 0
RALC6560V Type 0
RALC6560V Type 1
RALC6560V Type 1
RALC6560V Type 1
RALC6560V Type 1
SDS2E8DCD Type 0
SDS2E8DCD Type 0
SDS2E8DCD Type 0
SDS2E8DCD Type 0
SDS2E8DCD Type 1
SDS2E8DCD Type 1
SDS2E8DCD Type 1
SDS2E8DCD Type 1
SDS5G8D Type 0
SDS5G8D Type 0
SDS5G8D Type 0
SDS5G8D Type 0
SDS5G8D Type 1
SDS5G8D Type 1
SDS5G8D Type 1
SDS5G8D Type 1

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
A20868, 5140118-79, CAC-1265, CAC-1265-2, CAC-54-2, CAC54-2, CAC1265 ,CAC1265-2
A20868SV, A20868, CAC-1265-2, CAC1265-2, CAC-1265, CAC-54, CAC-54-1, CAC-54-2, CAC54, CAC-1265-1, A20868 SV, A20868-SV, Z-CAC-54, Z-CAC-54-1, Z-CAC-54-2, ZCAC541, ZCAC542, ZCAC54
Related Products
Check items to add to the cart or

2024 © Allparts Equipment & Accessories. All Rights Reserved.

BBB logo
PayPal Logo Payment logos
