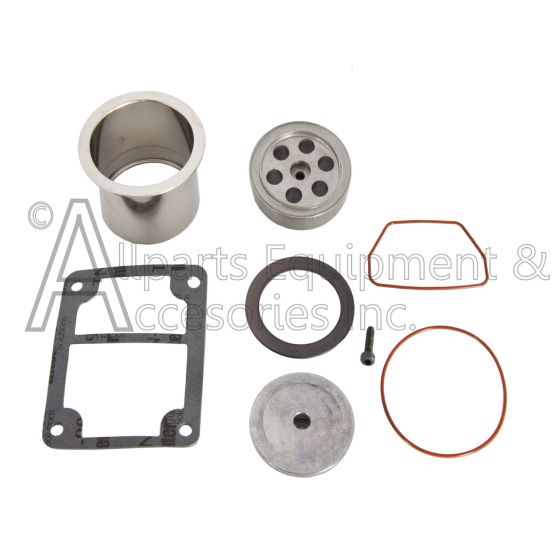

k-0648 compression ring kit high pressure front view

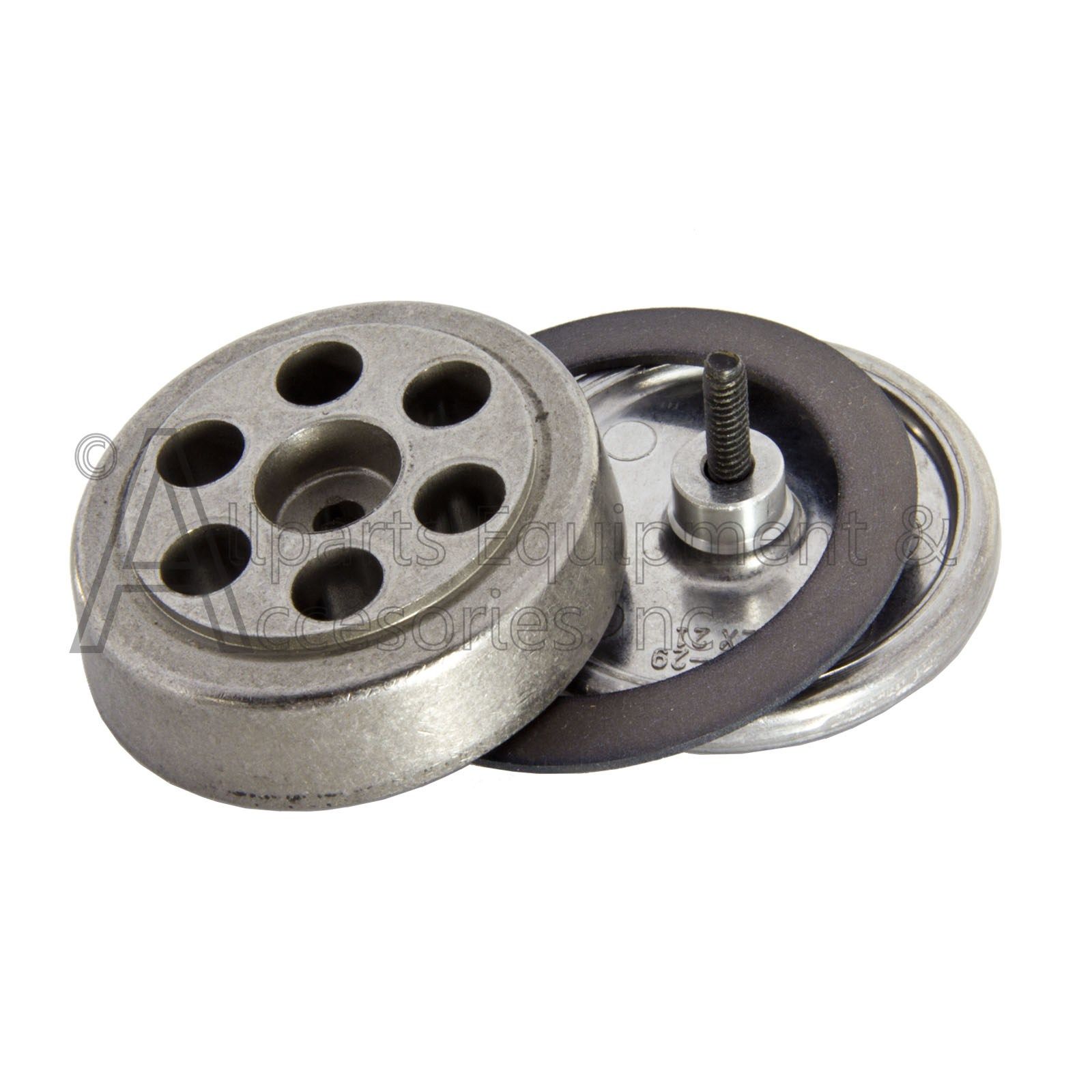

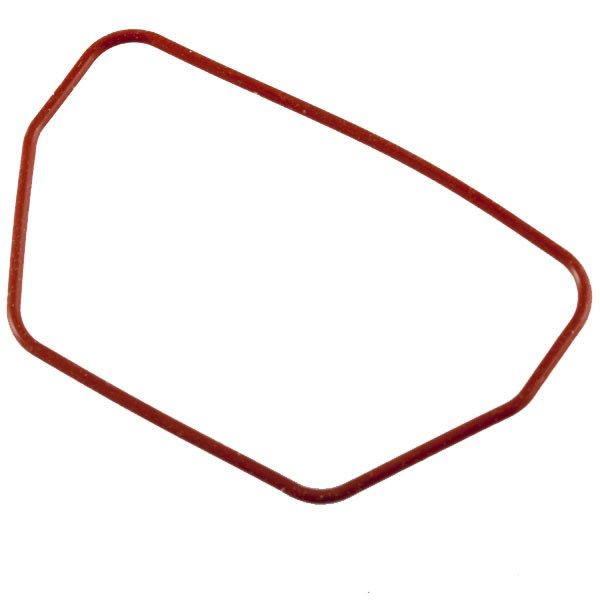

k-0648 compression ring kit high pressure front view k-0648 compression ring screw k-0648 compression ring gasket k-0648 compression ring acg-45 o-ring k-0648 compression ring ssg-8156 o-ring k-0648 compression ring view 1 k-0648 compression ring view 2 k-0648 compression ring view 3

K-0648 COMPRESSION RING KIT HIGH PRESSURE

Reference Item Only
Part Number
K-0648
Part Number: K-0648
Brand: DeVilbiss Air Compressor and Equipment
This specific Equipment Model or Replacement Part is No Longer Available to Allparts Equipment but may be found from others online sources.

The K-0648 Cylinder Sleeve Kit is No Longer Available with no replacement as a complete kit.

You can Order a K-0650 Cylinder Kit that uses the same Cylinder Sleeve and Piston ring as the K-0648 did, but you will have to reuse the heavy metal parts from your previous connecting rod.
The Head Gasket is a CAC-1175 and will need to be ordered separately if needed.


Respectfully we have this listing of the K-0648 Cylinder Sleeve online as a Reference Item Only so customers can see the item.

We cannot field calls on this item or answer emails as all of the information we have is on the page.





Need Help? Call us:

1-269-685-4123

Related Items

K-0648 High Pressure Compression Ring Replacement Kit was used by DeVilbiss on the twin cylinder 2 stage oil free air compressor pumps.

This K-0648 High Pressure Compression Ring Kit will rebuild only the high pressure side of the 2 stage compressor pump and was used with the K-0649 High Pressure Connecting Rod Kit.

The K-0650 will be require if both the high and the low pressure cylinders need to be rebuilt.

If the cylinder sleeve are not damaged and can be reused you can order just the DAC-308 Piston rings and this will refresh the top end.
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
The K-0648 High Pressure Compression Ring Replacement Kit was used by DeVilbiss on the twin cylinder 2 stage oil free air compressor pumps. The K-0648 will fit the following models: 1WC94 Type 0 1WC94 Type 1 1WC95 Type 0 1WC95 Type
